350442-0143-01 - Briggs & Stratton Horizontal Engine Carburetor Parts Diagram

Horizontal Engine

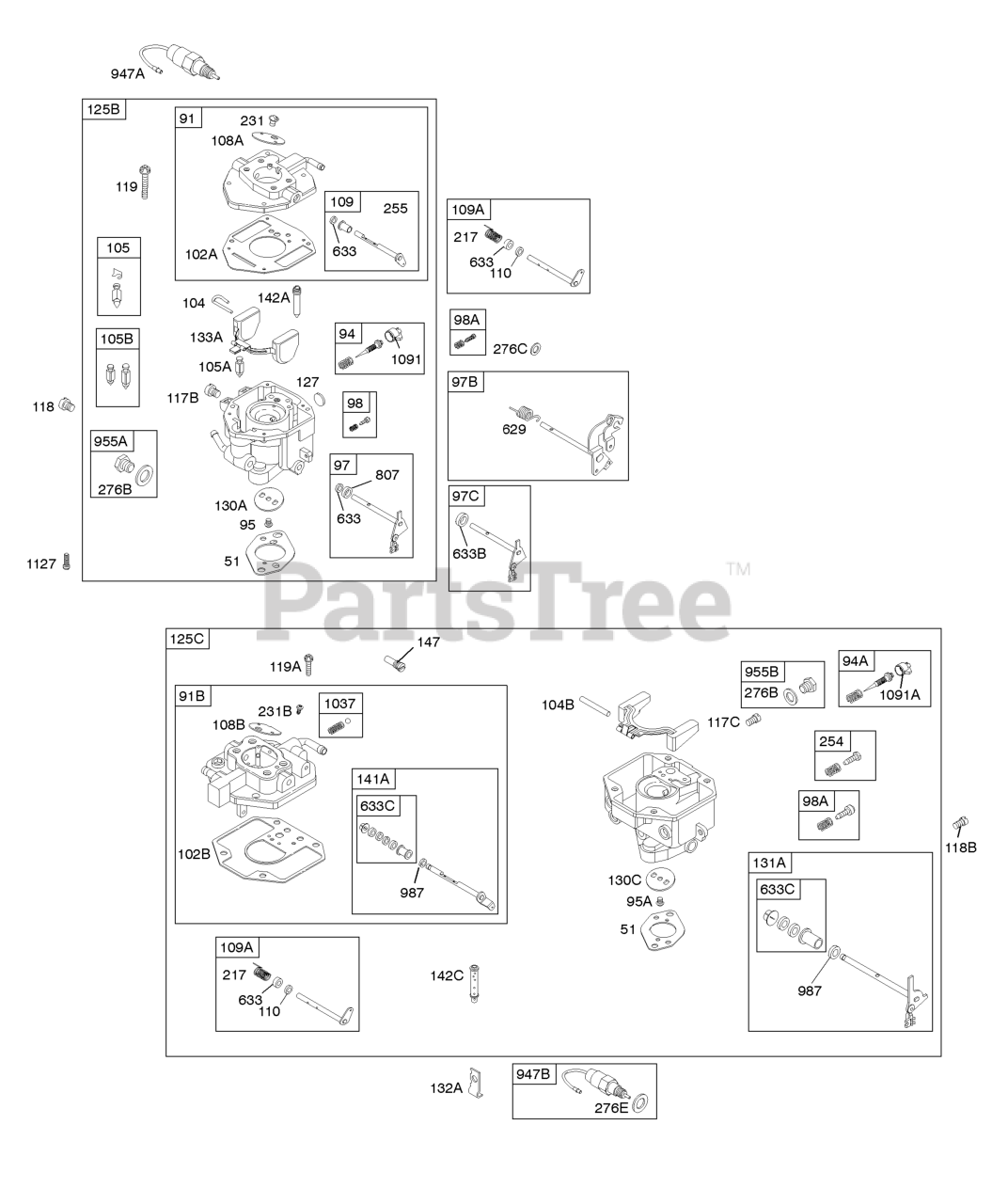

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Manifold To Carburetor)

$2.99

$

In Stock, Qty 20+

0

91B

Briggs & Stratton 807929

Body-Upper Carburetor

$

$

Not available

94A

Briggs & Stratton 494923

Kit-Idle Mixture

Note: Used Before Code Date 95010100

$19.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 808259

Kit-Idle Mixture

Note: Used After Code Date 94123100

$39.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 94635

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

97B

Briggs & Stratton 809062

Shaft-Throttle
(Superseded to 845022)

Note: Used After Code Date 00071100

$

$

Not available

97C

Briggs & Stratton 808397

Shaft-Throttle

Note: Used Before Code Date 00071200

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 807923

Kit-Idle Speed

$10.99

$

Usually ships in 2-12 days

0

102A

Briggs & Stratton 692077

Gasket-Carburetor Body

$25.99

$

In Stock, Qty 20+

0

102B

Briggs & Stratton 272460

Gasket-Carburetor Body

$26.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$9.49

$

In Stock, only 3 left!

0

104B

Briggs & Stratton 231784

Pin-Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 807925

Valve-Float Needle

$56.99

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 806134

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 224535

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 808398

Shaft-Choke

$42.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 806861

Washer

Note: (Choke Shaft)

$4.99

$

Usually ships in 2-12 days

0

117B

Briggs & Stratton 231660

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

117C

Briggs & Stratton 806126

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 809685

Jet-Main

Note: (High Altitude)

$15.99

$

Usually ships in 2-12 days

0

118B

Briggs & Stratton 231669

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

119A

Briggs & Stratton 94634

Screw

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

125B

Briggs & Stratton 809019

Carburetor
(Superseded to 846082)

Note: (Gravity Feed Carburetor)

$345.99

$

In Stock, only 1 left!

0

125C

Carburetor

Note: (For Replacement, Order Reference 125B)

$

$

Not available

127

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130C

Briggs & Stratton 224533

Valve-Throttle

Note: Used Before Code Date 95010100

$14.99

$

Usually ships in 2-12 days

0

130C

Briggs & Stratton 806132

Valve-Throttle
(Superseded to 84003952)

Note: Used After Code Date 94123100

$15.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 807924

Kit-Throttle Shaft

$69.99

$

Usually ships in 2-12 days

0

132A

Briggs & Stratton 690863

Stop-Throttle

$6.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 806961

Float-Carburetor
(Superseded to 844546)

$29.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 807928

Kit-Choke Shaft

$40.99

$

Usually ships in 2-12 days

0

142A

Briggs & Stratton 806128

Nozzle-Carburetor

Note: (Standard)

$35.99

$

Usually ships in 2-12 days

0

142C

Briggs & Stratton 231782

Nozzle-Carburetor

Note: (Standard)

$35.99

$

In Stock, only 1 left!

0

147

Briggs & Stratton 231783

Jet-Pilot

$12.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 806862

Spring-Choke Return

$10.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

231B

Briggs & Stratton 94457

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 807921

Drain-Carburetor Bowl

$15.99

$

Usually ships in 2-12 days

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 690724

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, Qty 8

0

276E

Briggs & Stratton 692343

Washer-Sealing

Note: (Solenoid)

$7.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 806137

Washer-Sealing

Note: (Solenoid)

$6.99

$

Usually ships in 2-12 days

0

629

Briggs & Stratton 806717

Spring-Throttle Return

$9.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

633B

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

633C

Briggs & Stratton 808022

Seal-Choke/Thr Shaft

$40.99

$

Usually ships in 2-12 days

0

807

Briggs & Stratton 805557

Spacer-Throttle

$6.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 692094

Solenoid-Fuel

$166.99

$

In Stock, only 4 left!

0

947B

Briggs & Stratton 807922

Solenoid-Fuel

$199.99

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 807723

Plug-Carburetor

Note: (Jet)

$6.49

$

In Stock, Qty 12

0

955B

Briggs & Stratton 807927

Plug-Carburetor

Note: (Jet)

$9.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 492172

Seal-Throttle Shaft

$5.99

$

In Stock, only 1 left!

0

1037

Briggs & Stratton 807915

Ball-Choke Locator

$8.99

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691516

Cap-Limiter

$8.49

$

Usually ships in 2-12 days

0

1091A

Briggs & Stratton 806054

Cap-Limiter

$7.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 94460

Screw

Note: (Float Bowl to Carburetor Body)

$9.49

$

Usually ships in 2-12 days

0
