3500XL (9704-1) - Generac 3,500 Watt Portable Generator Generator Repair Parts (10/95) Parts Diagram

3,500 Watt Portable Generator

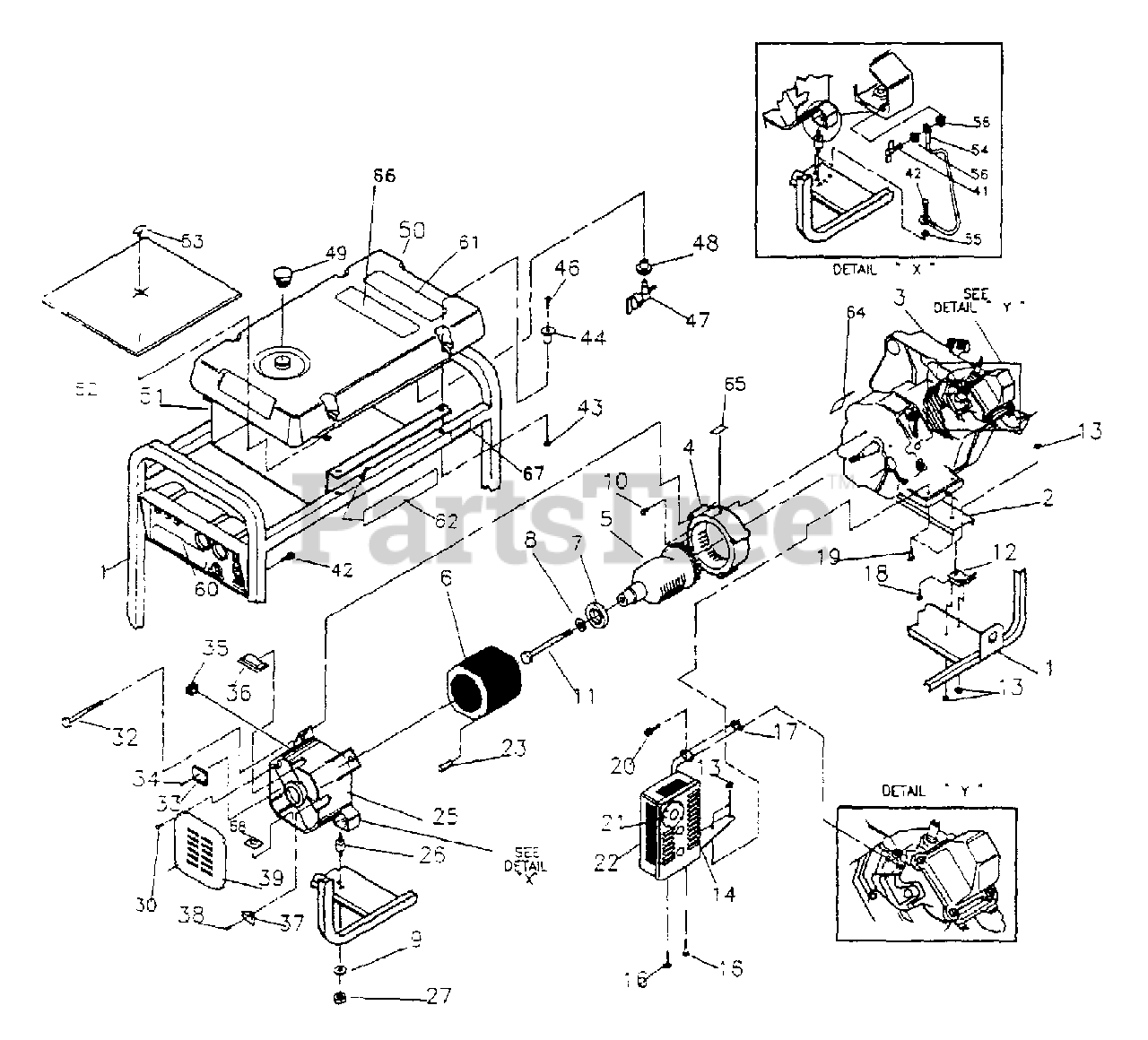

Generator Repair Parts (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 93199

Cradle
(Superseded to M197027GS)

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 84021

Engine Support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 93280

Motor 7.8 CV XL

$

$

Currently unavailable

4

Briggs & Stratton 66365

Engine Housing Adaptor
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141

Rotor Assembly

$

$

Currently unavailable

6

Briggs & Stratton 83540

Stator Assembly

$

$

Currently unavailable

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 Flat Washer

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

5/16-24 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 47480

5/16-24 x 7" Capscrew
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508

45-degrees Vibration Mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

M8 Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

Bracket Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80114

Exhaust Gasket

$

$

Currently unavailable

18

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8 x 35mm Screw
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

M8-1 25 x 20mm Capscrew

$

$

Not available

21

Briggs & Stratton 83063

Spark Arrestor Screen

$

$

Currently unavailable

22

Briggs & Stratton 83071

Muffler
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

M4 x 10mm Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825B

Rear Bearing Carrier

$

$

Currently unavailable

26

Briggs & Stratton 85652

Vibration Mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 45771

MS Hex Nut

$

$

Not available

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308

M6-1.0 x 115mm Stator Bolt
(Superseded to 86308GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

M5-0.7 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Drive Module
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

M5-0.7 x 1, 16mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

40

Briggs & Stratton 22769

No. 10 Int. SP Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 86292

Self-drill Capscrew, 10-16
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew
(Superseded to 78831BGS)

$

$

Not available

47

Briggs & Stratton 80270

Tank valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 80269

Plastic tank bushing

$

$

Currently unavailable

49

Briggs & Stratton 84582

Fuel Cap

$

$

Currently unavailable

50

Briggs & Stratton 83311

Fuel Tank

$

$

Currently unavailable

51

Briggs & Stratton 84042

Heat Shield

$

$

Currently unavailable

52

Briggs & Stratton 84687

No. 2 1/4" thick Insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

Clip insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

14353621

Ground Wire

$

$

Not available

55

Briggs & Stratton 23762

No 10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 25850

M6 Shakeproof Washer

$

$

Currently unavailable

58

Briggs & Stratton 57593

Cable Tie Mount
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 84679

Decal-Control Panel

$

$

Not available

61

Briggs & Stratton 94479

Decal-Start/Danger
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 84678

Decal-Heat Shield

$

$

Not available

64

Briggs & Stratton 78817

Decal-Alternator Data
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 81886

Decal-STA-BIL
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 94480

Decal - Start Instructions
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

67

Briggs & Stratton 73054

Decal - Fuel Shut-off

$

$

Not available
