3500XL (9441-4) - Generac 3,500 Watt Portable Generator Ignition And Engine No. 90692 Parts Diagram

3,500 Watt Portable Generator

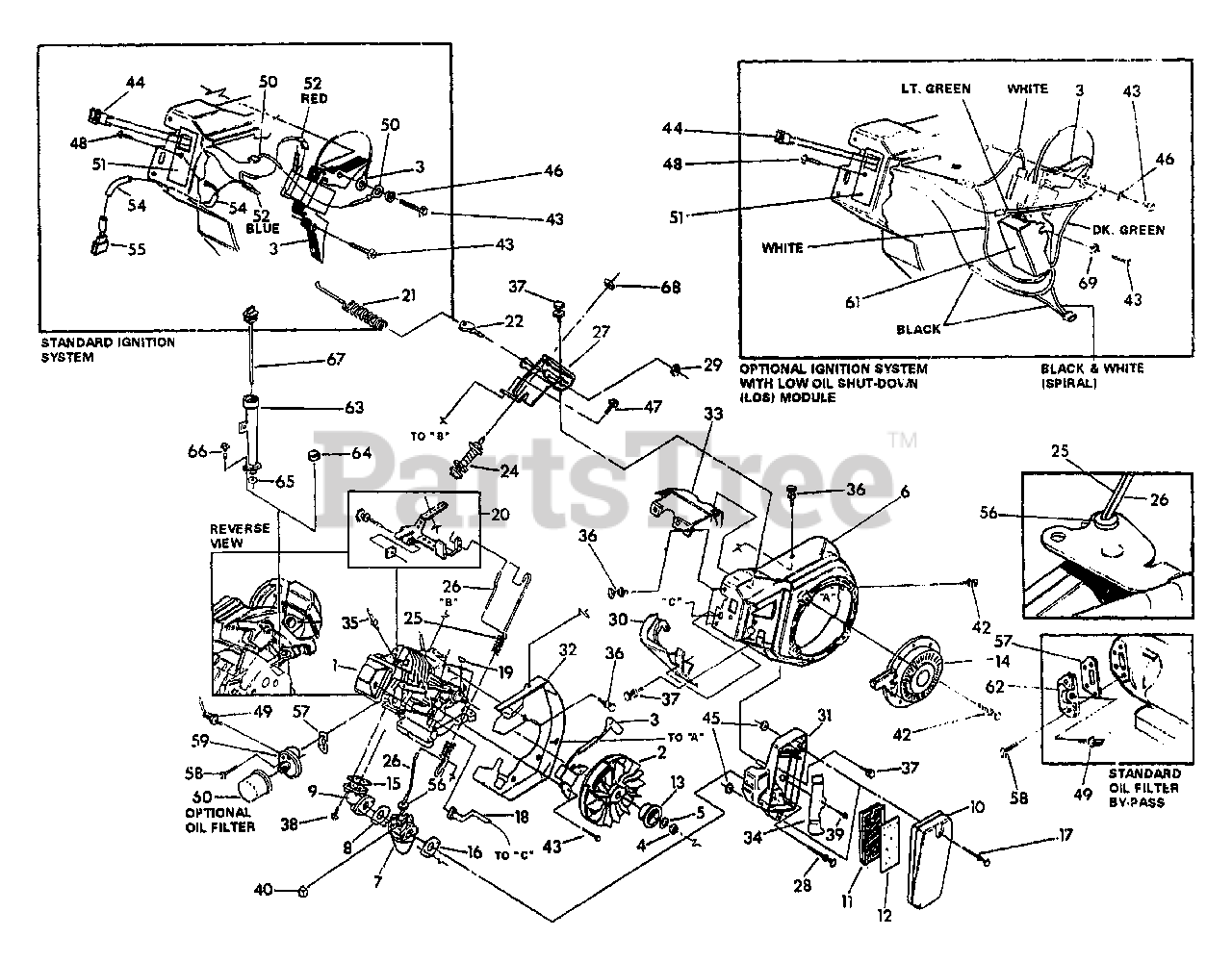

Ignition And Engine No. 90692 Parts Diagram

  • Title

1

Briggs & Stratton 90508

GN-220 Taper Shaft

$1.49

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 90507

GN-190 Taper Shaft

$

$

Not available

1

Briggs & Stratton 90991

GN-220 Straight Shaft
(Superseded to 7090991YP)

$2.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 92957

GN-220 Water Pump

$

$

Currently unavailable

2

Briggs & Stratton 77182E

Flywheel Assembly

$

$

Currently unavailable

2

Briggs & Stratton 77182T

Flywheel Assembly

$

$

Currently unavailable

3

Briggs & Stratton 81675

Ignition Coil Assembly

$

$

Currently unavailable

4

Briggs & Stratton 81810

M16-1.5 Hex Nut

$

$

Currently unavailable

5

Briggs & Stratton 83312

Conical Washer

$

$

Currently unavailable

6

Briggs & Stratton 90395A

Complete Blower Housing

$

$

Currently unavailable

7

Briggs & Stratton 90876

GN-220 Carburetor Assembly

$

$

Currently unavailable

7

Briggs & Stratton 92966

GN-190 Carburetor Assembly

$

$

Currently unavailable

8

Briggs & Stratton 78631

Carburetor/Manifold Gasket

$

$

Not available

9

Briggs & Stratton 90948

HS Intake Manifold

$

$

Not available

10

Briggs & Stratton 78608

Air Cleaner Cover

$

$

Currently unavailable

11

Briggs & Stratton 78601

Air Filter Element
(Superseded to 78601GS)

$13.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 78602

Air Filter Pre-Cleaner

$

$

Not available

13

Briggs & Stratton 83015

Recoil Cup

$

$

Not available

14

Briggs & Stratton 81671

Recoil Assembly

$

$

Currently unavailable

15

Briggs & Stratton 90051

Manifold/Head Gasket

$

$

Not available

16

Briggs & Stratton 91846

Carburetor/Air Cleaner Gasket

$

$

Not available

17

Briggs & Stratton 78609

Bolt - Air Cleaner Cover

$

$

Not available

18

Briggs & Stratton 90947

Breather Hose
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

19

Briggs & Stratton 82774

4 x 19 Woodruff Key

$

$

Not available

20

Briggs & Stratton 86962

Governor Lever Assembly

$

$

Currently unavailable

21

Briggs & Stratton 78604

Governor Spring - 60 Hz

$

$

Currently unavailable

21

Briggs & Stratton 86643

Governor Spring - 50 Hz

$

$

Currently unavailable

22

Briggs & Stratton 83502

Governor Adjusting Screw

$

$

Not available

24

Briggs & Stratton 83782

Idle Control Coil

$

$

Currently unavailable

25

Briggs & Stratton 86037

Anti-Lash Extension Spring

$

$

Currently unavailable

26

Briggs & Stratton 86384

Governor Rod

$

$

Currently unavailable

27

Briggs & Stratton 83781

Governor Adjust Bracket

$

$

Currently unavailable

28

Briggs & Stratton 78643

Carburetor Mounting Bolt

$

$

Not available

29

Briggs & Stratton 83503

M5-0.8 Mounting Lock Nut

$

$

Currently unavailable

30

Briggs & Stratton 89739

Bottom Wrapper

$

$

Currently unavailable

31

Briggs & Stratton 78607

Air Cleaner Base

$

$

Not available

32

Briggs & Stratton 78651C

Blower Housing Back Plate

$

$

Currently unavailable

33

Briggs & Stratton 92984

Top Wrapper
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

34

Briggs & Stratton 80303

Breather Canal Cover

$

$

Not available

35

Briggs & Stratton 72347

RC12YC Spark Plug (Champion)
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 45756

M6-1.0 x 10mm Taptite Bolt

$

$

Not available

37

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew with lock washer
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 80316

M6-1.0 x 30mm Capscrew with lock washer

$

$

Currently unavailable

39

Briggs & Stratton 59635

No. 8 x 3/8" Plastite Screw

$

$

Currently unavailable

40

Briggs & Stratton 83504

Choke Lever Knob

$

$

Not available

42

Briggs & Stratton 81668

M6-1.0 x 10mm Capscrew with lock washer

$

$

Not available

43

Briggs & Stratton 82981

M6-1.0 x 30mm Taptite Bolt

$

$

Currently unavailable

44

Briggs & Stratton 78653

Shut-off Switch
(Superseded to 78653GS)

$

$

Not available

45

Briggs & Stratton 49813

M6-1.0 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83512

M8 x 15mm Taptite Bolt
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 85272

Low Oil Indicator LED

$

$

Currently unavailable

49

Briggs & Stratton 77667

4 psi Oil Pressure Switch

$

$

Not available

50

Briggs & Stratton 00285271

Ground Wire Assembly

$

$

Currently unavailable

51

Briggs & Stratton 84195

LOS Engine Decal

$

$

Currently unavailable

52

Briggs & Stratton 00185271

Ignition Wire Assembly

$

$

Currently unavailable

54

Briggs & Stratton 85620

No. 3, 145mm Sleeving

$

$

Currently unavailable

55

Briggs & Stratton 84329

3-pin, Male Housing

$

$

Currently unavailable

56

Briggs & Stratton 85953

Carburetor Wear Washer

$

$

Currently unavailable

57

Briggs & Stratton 91848

Oil Filter Pad Gasket
(Superseded to 7091848YP)

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 92978

M6-1.0 x 20mm Screw

$

$

Currently unavailable

59

Briggs & Stratton 84982

Oil Filter Adaptor (MC series)

$

$

Currently unavailable

60

Briggs & Stratton 70185

Oil Filter
(Superseded to 70185GS)

Note: (optional)

$

$

Not available

61

Briggs & Stratton 87221A

LOS Module
(Superseded to 87221AGS)

Note: (optional)

$

$

Not available

62

Briggs & Stratton 88758

By-pass Adaptor

Note: (optional)

$

$

Currently unavailable

63

Briggs & Stratton 91041

Oil Fill Tube

Note: (optional)

$

$

Currently unavailable

64

Briggs & Stratton 94820

Expansion Plug

$

$

Currently unavailable

65

Briggs & Stratton 91230

Oil Fill Gasket
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 90388

M6 x 12mm Screw
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

67

Briggs & Stratton 91475

Oil Fill Dipstick

Note: (optional)

$

$

Not available

68

Briggs & Stratton 66311

JAM-M8-125 Hex Nut

$

$

Currently unavailable

69

Briggs & Stratton 49811

M6-12.5 O.D. Flat Washer
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0
