3500XL (9441-0) - Generac 3,500 Watt Portable Generator Generator (10/95) Parts Diagram

3,500 Watt Portable Generator

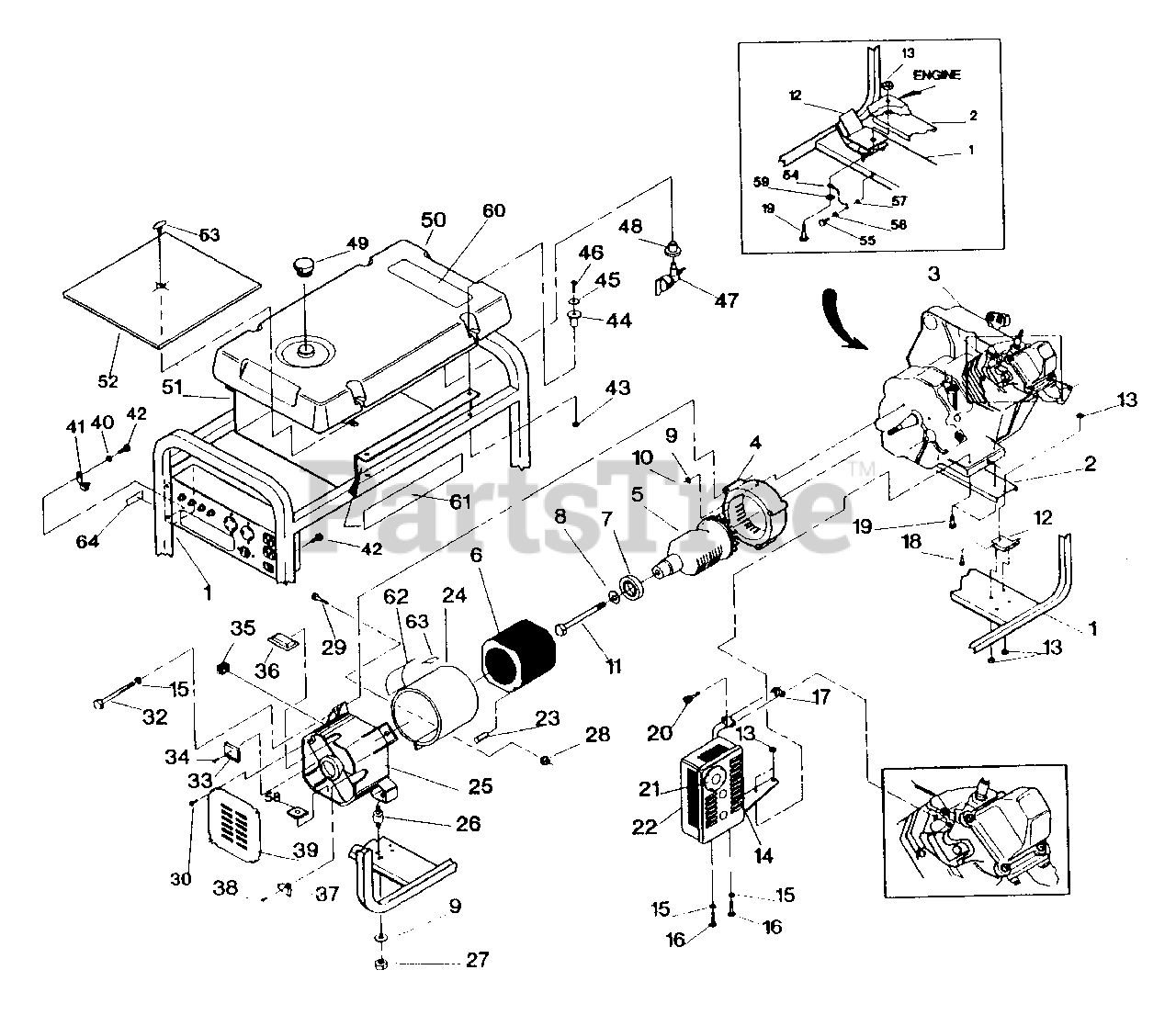

Generator (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 83533

3500 XL Cradle

$

$

Currently unavailable

2

Briggs & Stratton 84021

Engine Support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 83232

6 HP XL Engine

$

$

Currently unavailable

4

Briggs & Stratton 66365

Engine Adaptor Housing
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141

Rotor Assembly

$

$

Currently unavailable

6

Briggs & Stratton 83540

Stator Assembly

$

$

Currently unavailable

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 Flat Washer

$

$

Currently unavailable

9

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 22336

5/16-24 x 3/4" Capscrew

$

$

Not available

11

Briggs & Stratton 47480

5/16-24 x 7" Capscrew
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508

45-degree Vibration Mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 52858

M8 Locking Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 83208

Bracket Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43116

M6-1.0 x 12mm Capscrew
(Superseded to 43116GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8 x 35mm Screw
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

21

Briggs & Stratton 83083

Spark Arrestor Screen
(Superseded to 83083GS)

$9.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 83071

Muffler
(Superseded to 83071GS)

$

$

Not available

23

Briggs & Stratton 81917

M4 x 10mm Roll Pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 81887B

Stator Wrap

$

$

Not available

25

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

26

Briggs & Stratton 85652

Vibration Mount
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 45771

M8 Hex Nut

$

$

Not available

28

Briggs & Stratton 52856

M5 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 52618

M5-0.8 x 12mm Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66449E

M6-1.0 x 115mm Stator Bolt

$

$

Currently unavailable

33

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

34

Briggs & Stratton 66849A

M5-0.7 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Drive Module
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 66849

M5-0.7 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

40

Briggs & Stratton 22769

No. 10 Int. SP Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 25433

Ground Lug

$

$

Not available

42

Briggs & Stratton 75494

Self-drill Capscrew, #10-24

$

$

Not available

43

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

45

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 78831A

M6-1.0 x 60mm Capscrew

$

$

Currently unavailable

47

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 80269

Plastic Tank Bushing

$

$

Currently unavailable

49

Briggs & Stratton 84582

Fuel Cap

$

$

Currently unavailable

50

Briggs & Stratton 83311

Fuel Tank

$

$

Currently unavailable

51

Briggs & Stratton 84042

Heat Shield

$

$

Currently unavailable

52

Briggs & Stratton 84687

No. 2 1/4" thick insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000

Clip Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

55

Briggs & Stratton 24911

No. 8 x 3/8" Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 57593

Cable Tie Mount
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

60

Briggs & Stratton 78992

Start/Danger Decal

$

$

Currently unavailable

61

Briggs & Stratton 84678

Heat Shield Decal

$

$

Not available

62

Briggs & Stratton 78817

Alternator Data Decal
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 81886

STA-BIL Decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 67210

Ground Decal
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0
