3500CCG (9412-0) - Generac 3,500 Watt Portable Generator Generator Parts Diagram

3,500 Watt Portable Generator

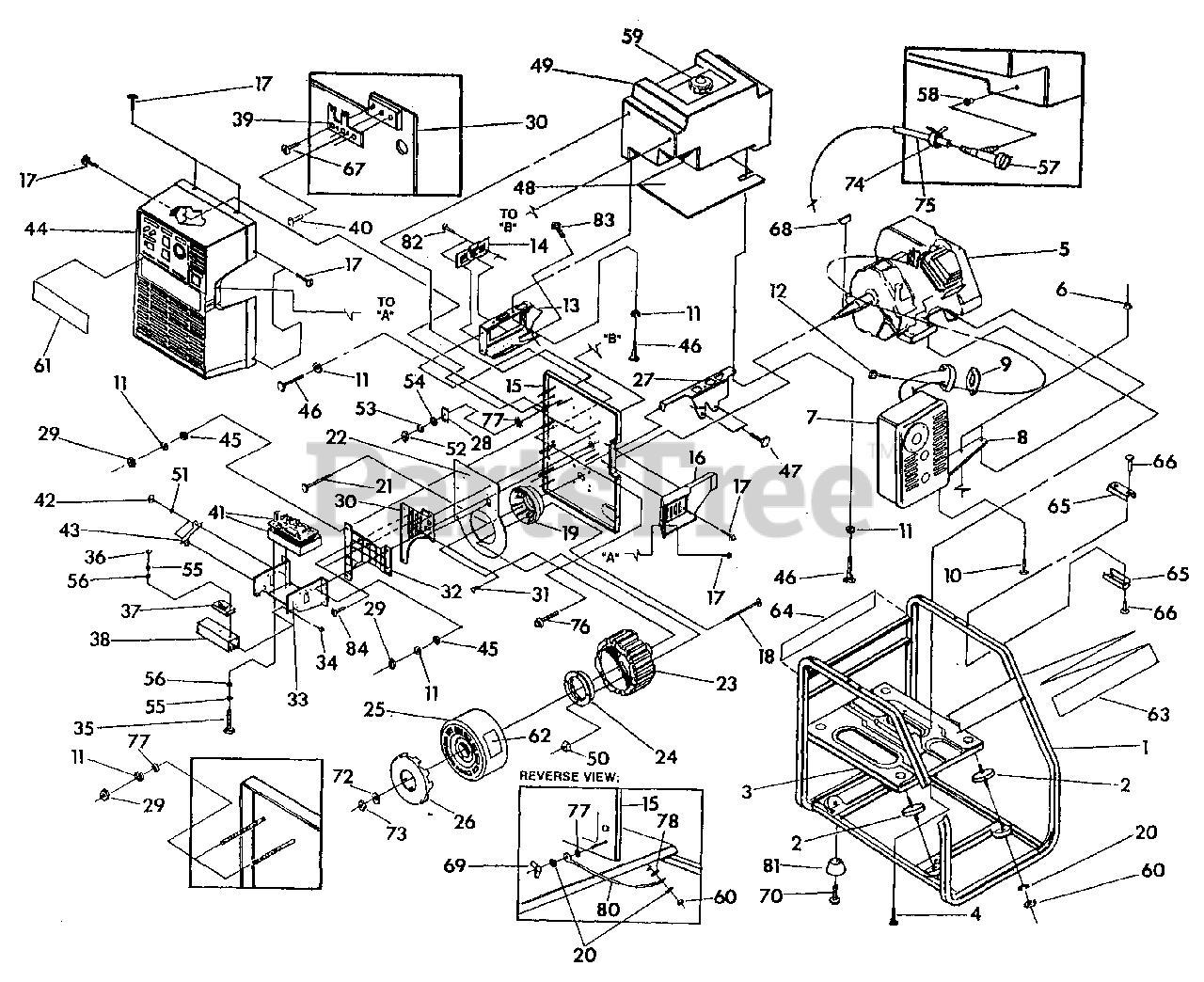

Generator Parts Diagram

  • Title

1

Briggs & Stratton 87994

Cradle Assembly

$

$

Currently unavailable

2

Briggs & Stratton 88543

Vibration Mounts

$

$

Not available

3

Briggs & Stratton 82548

Sub Base Assembly
(Superseded to 82548GS)

$84.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 39288

M8-1.25 x 55mm Capscrew
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84623

6 HP Engine

$

$

Not available

6

Briggs & Stratton 52858

M8-1.25 Locking Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 83071

Muffler
(Superseded to 83071GS)

$

$

Not available

8

Briggs & Stratton 83208

Muffler Bracket
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 80314

Exhaust Gasket
(Superseded to 80314GS)

$9.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

Note: (Torque nut to 200 inch-pounds)

$

$

Not available

13

Briggs & Stratton 83114

Rear Fuel Tank Bracket

$

$

Currently unavailable

14

Briggs & Stratton 75812

Storage Door
(Superseded to 7075812YP)

$7.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82540

Divider Wall
(Superseded to 82540GS)

$27.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 86658

Air Muffler Duct

$

$

Currently unavailable

17

Briggs & Stratton 88540

M4-0.7 x 12mm Taptite Screw
(Superseded to 88540GS)

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 53410

M6-1.0 x 90mm Capscrew

$

$

Not available

19

Briggs & Stratton 80935

Engine Housing Adaptor

$

$

Currently unavailable

20

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 86307

5/16"-24 x 3/4" Screw
(Superseded to 86307GS)

Note: (Torque to 180 inch-pounds)

$2.99

$

In Stock, only 3 left!

0

22

Briggs & Stratton 86279

Stator Leads Insulator
(Superseded to 86279GS)

$10.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 83681

Stator Assembly

$

$

Currently unavailable

24

Briggs & Stratton 80934

Retainer Ring

$

$

Currently unavailable

25

Briggs & Stratton 90013

Magnet Housing Assembly

$

$

Not available

26

Briggs & Stratton 80933

Magnet Housing Fan

$

$

Currently unavailable

27

Briggs & Stratton 83113

Front Fuel Tank Bracket

$

$

Currently unavailable

28

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 49813

M6-1.0 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 86091

Bottom Lead Wire Shield

$

$

Currently unavailable

31

Briggs & Stratton 86471

Rivet

$

$

Currently unavailable

32

Briggs & Stratton 86092

Top Lead Wire Shield

$

$

Currently unavailable

33

Briggs & Stratton 82537

Circuit Board Mounting Bracket
(Superseded to 82537GS)

$16.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66849B

M5-0.8 x 8mm Taptite Screw
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45767

M4-0.7 x 8mm Capscrew
(Superseded to 5045767B)

$92.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 75476

M4-0.7 x 16mm Capscrew
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86275

Triac Module

$

$

Currently unavailable

38

Briggs & Stratton 80939

Controller Extrusion

$

$

Currently unavailable

39

Briggs & Stratton 86277

Buss Bar

$

$

Currently unavailable

40

Briggs & Stratton 86469

No. 2-28 x 1/4" Pushtite Screw

$

$

Currently unavailable

41

Briggs & Stratton 83492

Circuit Board Container Assm.

$

$

Currently unavailable

42

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 83491

50 watt, 500 ohm Resistor

$

$

Currently unavailable

44

Briggs & Stratton 87982

Control Panel

$

$

Currently unavailable

45

22473

M6 Flat Washer

$

$

Not available

46

Briggs & Stratton 53995

1/4 -20 x 1/2" Bolt
(Superseded to 7053995YP)

Note: (Torque to 140 inch-pounds)

$159.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77168

M8 x 52mm HD Bolt

Note: (Torque to 300 inch-pounds)

$

$

Currently unavailable

48

Briggs & Stratton 75709

Heat Shield
(Superseded to 7075709YP)

$1652.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 88780

Fuel Tank
(Superseded to 88780GS)

$75.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 52857

M6-1.0 Locking Nut
(Superseded to 52857GS)

Note: (Torque to 140 inch-pounds)

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 51716

M5-0.8 Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 22264

M4 Lock Washer

$

$

Not available

56

Briggs & Stratton 22985

M4 Flat Washer

$

$

Not available

57

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 78299

Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

59

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

61

Briggs & Stratton 88864

Decal - Control Panel
(Superseded to 88864GS)

$7.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 88855

Decal - Magnet HSG Warning

$

$

Currently unavailable

63

Briggs & Stratton 88863

Decal - Cradle Logo
(Superseded to 88863GS)

$10.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 88862

Decal - Cradle Instructions
(Superseded to 88862GS)

$10.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 66450

Cradle Handle

$

$

Not available

66

Briggs & Stratton 66831

4mm Rivet

$

$

Not available

67

Briggs & Stratton 89541

M4-0.7 x 6mm Capscrew

$

$

Currently unavailable

68

Briggs & Stratton 82774

4mm x 19mm Woodruff Key

$

$

Not available

69

Briggs & Stratton 87680

M6-1.0 Wing Nut
(Superseded to 87680GS)

$7.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 69252

5/16"-18 Crimptite Screw

$

$

Currently unavailable

72

Briggs & Stratton 83312

M16 Conical Washer

$

$

Currently unavailable

73

Briggs & Stratton 81810

M16-1.5 Hex Nut

Note: (Torque nut to 700 inch-pounds)

$

$

Currently unavailable

74

Briggs & Stratton 48031G

Fuel Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 82580C

Fuel Hose

$

$

Currently unavailable

76

Briggs & Stratton 45756

M6-1.0 x 10mm Taptite Screw

$

$

Not available

77

Briggs & Stratton 26850

M6 Ext. Shakeproof Washer

$

$

Not available

78

Briggs & Stratton 27482

M8 Ext. Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 15253621

Cradle Ground Strap

$

$

Currently unavailable

81

Briggs & Stratton 87841

Vibration Pads
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

82

Briggs & Stratton 89556

Rivet

$

$

Currently unavailable

83

Briggs & Stratton 83512

M8 x 15mm Taptite Bolt
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 83291

Plastite Screw

$

$

Currently unavailable
