35000 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) ATTACHMENT LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Kohler

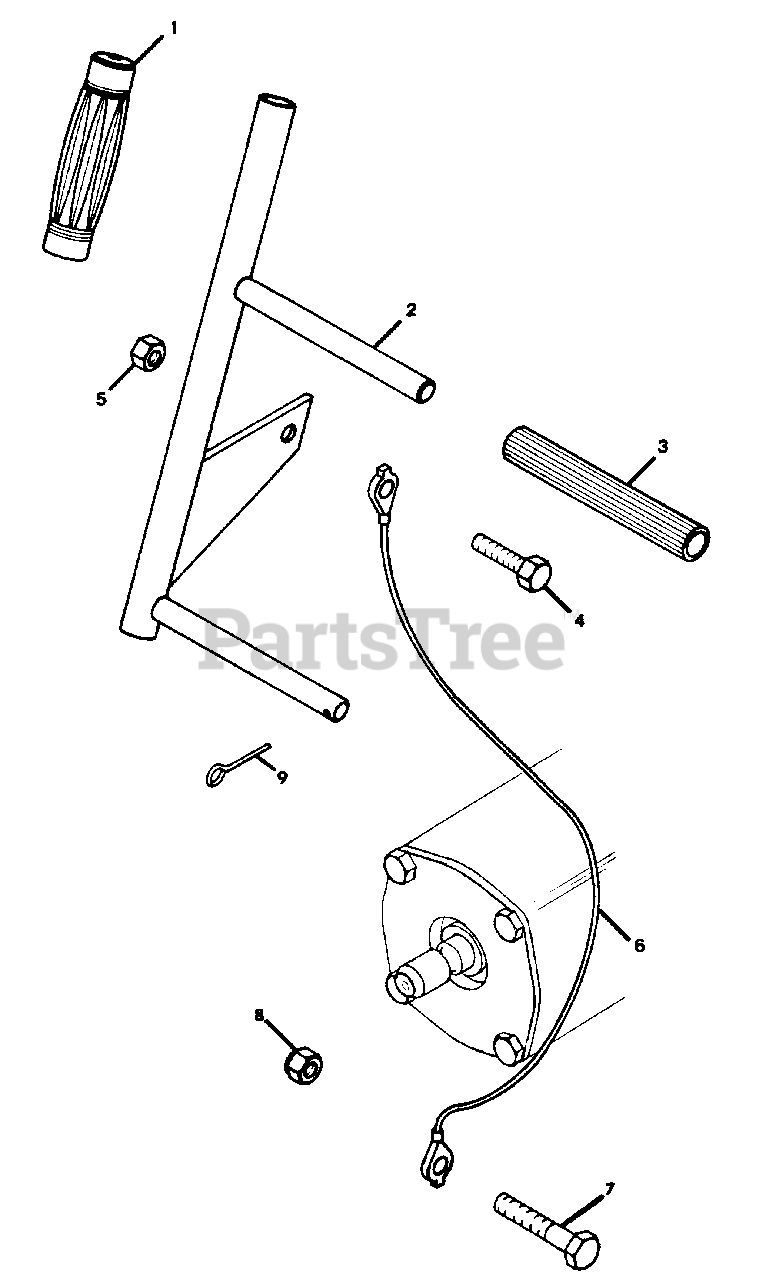

ATTACHMENT LIFT Parts Diagram

  • Title

1

Gravely 010671

GRIP, HAND
(Superseded to 20046100)

$17.99

$

In Stock, only 1 left!

0

2

Gravely 034540

LEVER, LIFT
(Superseded to 20603500)

$

$

Not available

3

Gravely 027794

GRIP
(Superseded to 20483900)

$

$

Not available

4

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 034480

CABLE, LIFT
(Superseded to 06924200)

$

$

Not available

7

Gravely 181623

BOLT, HEX 5/16-24X2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
