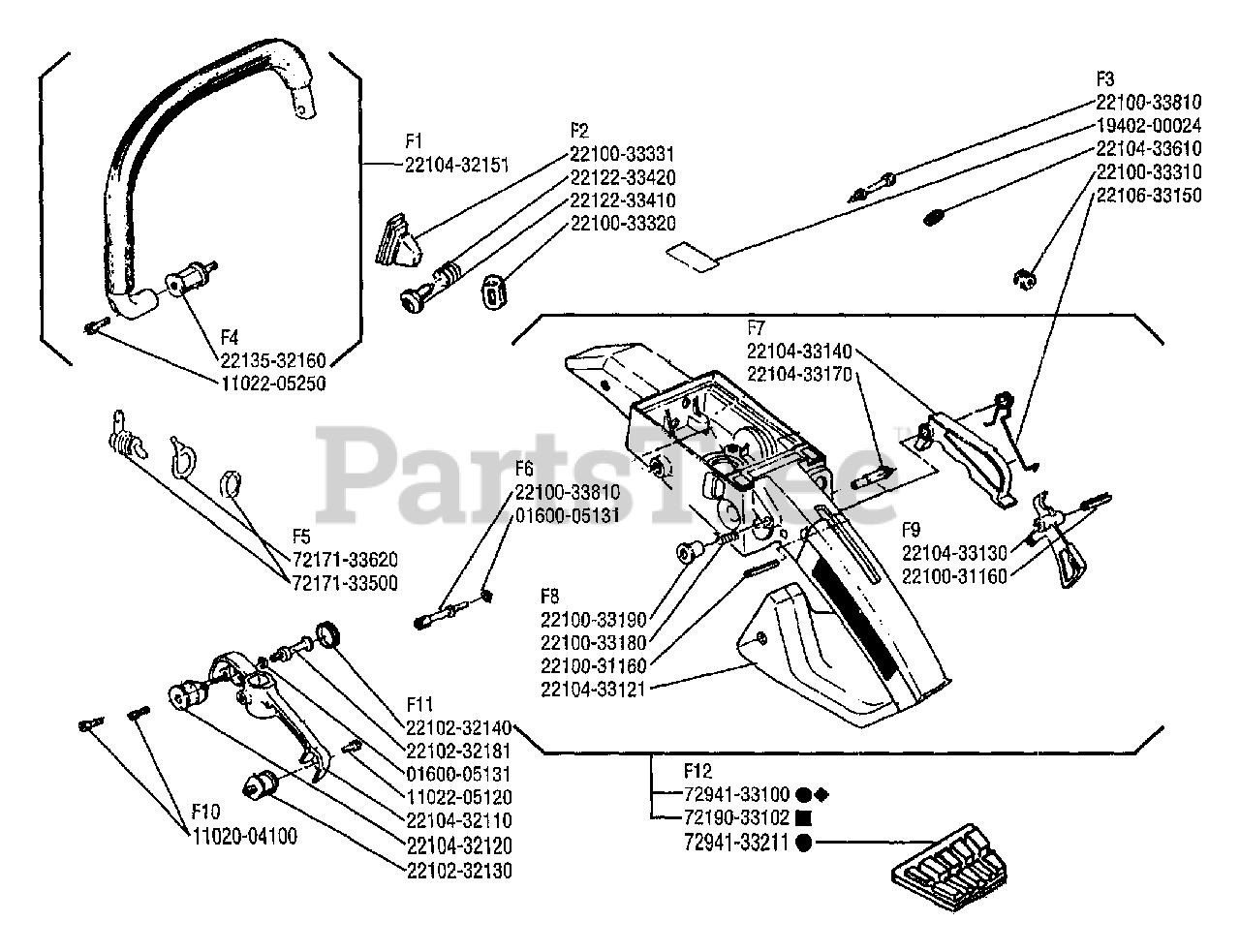

350 - Shindaiwa Chainsaw Handle Assembly Parts Diagram

Chainsaw

Handle Assembly Parts Diagram

  • Title

F1-22104-32151

Echo 22104-32151

FRONT HANDLE
(Superseded to 22104-32152)

$49.99

$

Usually ships in 2-4 days

0

F4-22135-32160

Echo 22135-32160

CUSHION 22B
(Superseded to V401000480)

$7.49

$

Usually ships in 2-4 days

0

F4-11022-05250

Echo 11022-05250

BOLT SPW
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

F5-72171-33620

Echo 72171-33620

GROUND PLATE

$1.99

$

Usually ships in 2-4 days

0

F5-72171-33500

Echo 72171-33500

SWITCH ASSY
(Superseded to A440001690)

$8.99

$

Usually ships in 2-4 days

0

F10-11020-04100

Echo 11020-04100

BOLT SW
(Superseded to V202000250)

$0.99

$

Usually ships in 2-4 days

0

F11-22102-32140

Echo 22102-32140

PLUG, BRACKET
(Superseded to V162000430)

$2.99

$

In Stock, Qty 6

0

F11-22102-32181

Echo 22102-32181

BOLT, BRACKET
(Superseded to V203001300)

$3.99

$

Usually ships in 2-4 days

0

F11-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

F11-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

F11-22104-32110

Echo 22104-32110

BRACKET

$29.99

$

Usually ships in 2-4 days

0

F11-22104-32120

Echo 22104-32120

CUSHION 22
(Superseded to V401000470)

$6.99

$

Usually ships in 2-4 days

0

F11-22102-32130

Echo 22102-32130

CUSHION 18A
(Superseded to V401000260)

$5.49

$

Usually ships in 2-4 days

0

F8-22100-33190

Echo 22100-33190

KNOB, STOPPER

$0.99

$

Usually ships in 2-4 days

0

F8-22100-33180

Echo 22100-33180

SPRING

$0.99

$

Usually ships in 2-4 days

0

F8-22100-31160

Echo 22100-31160

$

$

Currently unavailable

F8-22104-33121

Echo 22104-33121

GRIP, HANDLE
(Superseded to C412000550)

$7.99

$

Usually ships in 2-4 days

0

F12-72941-33100

Echo 72941-33100

HANDLE ASSY, REAR
(Superseded to P021033490)

$104.99

$

Usually ships in 2-4 days

0

F12-72190-33102

Echo 72190-33102

$

$

Currently unavailable

F12-72941-33211

Echo 72941-33211

HANDLE, REAR RUBBER

$9.49

$

Usually ships in 2-4 days

0

F6-22100-33810

Echo 22100-33810

BOLT
(Superseded to V203001310)

$2.99

$

In Stock, only 1 left!

0

F6-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

F7-22104-33140

Echo 22104-33140

LEVER, LOCK
(Superseded to C460000280)

$3.49

$

Usually ships in 2-4 days

0

F7-22104-33170

Echo 22104-33170

STOPPER

$5.99

$

Usually ships in 2-4 days

0

F9-22104-33130

Echo 22104-33130

THROTTLE LEVER
(Superseded to C450000610)

$3.49

$

In Stock, only 2 left!

0

F9-22100-31160

Echo 22100-31160

$

$

Currently unavailable

F3-22100-33810

Echo 22100-33810

BOLT
(Superseded to V203001310)

$2.99

$

In Stock, only 1 left!

0

F3-19402-00024

Echo 19402-00024

LABEL, CAUTION
(Superseded to X505003200)

$0.99

$

In Stock, only 1 left!

0

F3-22104-33610

Echo 22104-33610

SPRING
(Superseded to Discontinued)

$

$

Not available

F3-22100-33310

Echo 22100-33310

GROMMET A

$

$

Not available

F3-22106-33150

Echo 22106-33150

SPRING, LEVER
(Superseded to V452000770)

$2.99

$

In Stock, only 2 left!

0

F2-22100-33331

Echo 22100-33331

GROMMET, ROD

$1.99

$

Usually ships in 2-4 days

0

F2-22122-33420

Echo 22122-33420

ADJUSTING SPRING
(Superseded to V450001060)

$

$

Not available

F2-22122-33410

Echo 22122-33410

SCREW, ADJUST

$6.49

$

Usually ships in 2-4 days

0

F2-22100-33320

Echo 22100-33320

GROMMET, CARBURETOR

$1.99

$

Usually ships in 2-4 days

0
