350 - Husqvarna Chainsaw (SN: 19980400001 - 19993600000) CARBURETOR DETAILS Parts Diagram

Chainsaw

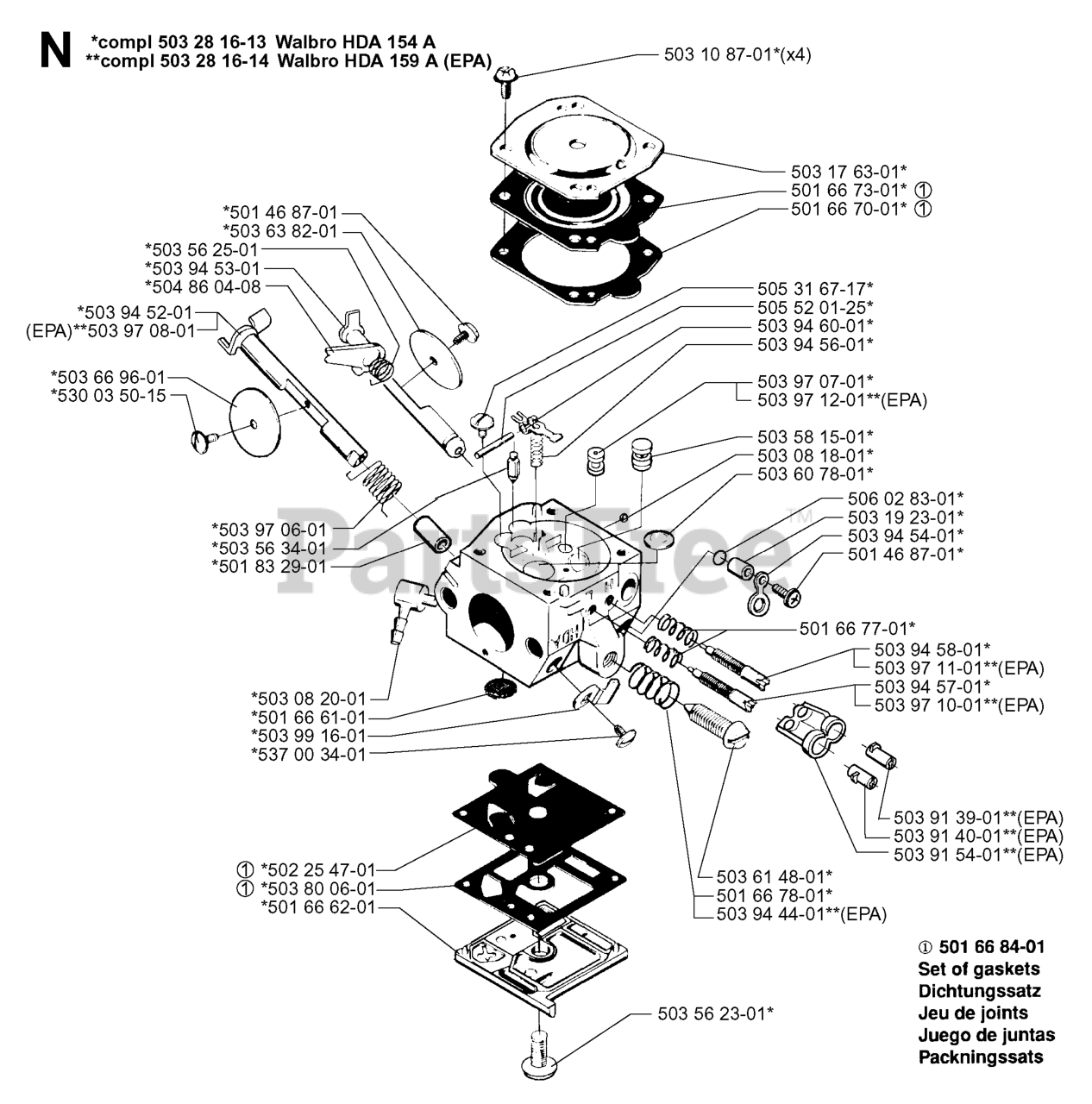

CARBURETOR DETAILS Parts Diagram

  • Title
503 56 23-01

$

$

Not available

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

501 83 29-01

$2.49

$

Usually ships in 3-10 days

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

503 97 10-01

Husqvarna 503971001

Adjusting Screw (EPA)

Note: EPA

$

$

Not available

504 86 04-08

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

503 94 54-01

$4.99

$

In Stock, only 3 left!

0

503 94 44-01

Husqvarna 503944401

SPRING

Note: EPA

$13.99

$

In Stock, only 1 left!

0

503 94 60-01

Husqvarna 503946001

LEVER
(Superseded to 501668301)

$17.99

$

Usually ships in 3-10 days

0

503 28 16-13

Husqvarna 503281613

CARBURETOR HDA 154A WALBRO
(Superseded to 503283207)

Note: WALBRO HDA 154 A

$113.99

$

In Stock, only 1 left!

0

501 66 77-01

$9.49

$

In Stock, only 3 left!

0

503 19 23-01

$

$

Not available

503 63 82-01

Husqvarna 503638201

CHOKE VALVE

$2.49

$

Usually ships in 3-10 days

0

503 91 40-01

Husqvarna 503914001

LIMITER CAP

Note: EPA

$5.99

$

In Stock, only 1 left!

0

503 60 78-01

Husqvarna 503607801

PLUG
(Superseded to 503574201)

$7.99

$

In Stock, only 4 left!

0

503 94 53-01

Husqvarna 503945301

Chokeshaft

$

$

Not available

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

501 46 87-01

$7.99

$

In Stock, only 1 left!

0

503 94 58-01

Husqvarna 503945801

NEEDLE ADJUSTING

$4.99

$

Usually ships in 3-10 days

0

503 08 18-01

$

$

Not available

503 28 16-14

Husqvarna 503281614

CARBURETOR HDA 159A EPA WALBRO
(Superseded to 503283208)

Note: WALBRO HDA 159 A (EPA)

$113.99

$

Usually ships in 3-10 days

0

503 56 25-01

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

503 91 54-01

Husqvarna 503915401

CAP

Note: EPA

$9.49

$

Usually ships in 3-10 days

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

505 31 67-17

$7.99

$

In Stock, Qty 6

0

503 91 39-01

Husqvarna 503913901

LIMITER CAP

Note: EPA

$

$

Not available

503 94 52-01

Husqvarna 503945201

Throttle Shaft

$

$

Not available

501 66 62-01

Husqvarna 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

503 97 07-01

$

$

Not available

503 08 20-01

$5.99

$

In Stock, only 2 left!

0

506 02 83-01

$13.99

$

Usually ships in 3-10 days

0

503 97 11-01

Husqvarna 503971101

Adjusting Screw

Note: EPA

$

$

Not available

503 94 56-01

$

$

Not available

503 66 96-01

Husqvarna 503669601

THROTTLE VALVE

$5.99

$

Usually ships in 3-10 days

0

503 94 57-01

Husqvarna 503945701

IDLE NEEDLE

$5.99

$

In Stock, only 1 left!

0

501 66 73-01

Husqvarna 501667301

METERING DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$74.99

$

In Stock, only 1 left!

0

503 99 16-01

$

$

Not available

537 00 34-01

Husqvarna 537003401

SCREW
(Superseded to 501468701)

$7.99

$

In Stock, only 1 left!

0

503 58 15-01

$5.99

$

Usually ships in 3-10 days

0

503 61 48-01

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

503 97 12-01

Husqvarna 503971201

JET

Note: EPA

$3.49

$

Usually ships in 3-10 days

0

503 80 06-01

Husqvarna 503800601

GASKET
(Superseded to 501666901)

Note: 501 66 84-01 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

503 97 06-01

Husqvarna 503970601

RETURN SPRING

$3.49

$

Usually ships in 3-10 days

0

501 66 70-01

Husqvarna 501667001

GASKET, METERING SIDE

Note: 501 66 84-01 SET OF GASKETS

$7.99

$

In Stock, only 3 left!

0

503 17 63-01

Husqvarna 503176301

COVER METERING DIAPHR.

$5.99

$

In Stock, only 2 left!

0

503 97 08-01

Husqvarna 503970801

Shaft

Note: EPA

$

$

Not available

502 25 47-01

Husqvarna 502254701

PUMP DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0
