350 (954014314) - Husqvarna 20" Walk-Behind Mower (2009-10) Repair Parts Parts Diagram

20" Walk-Behind Mower

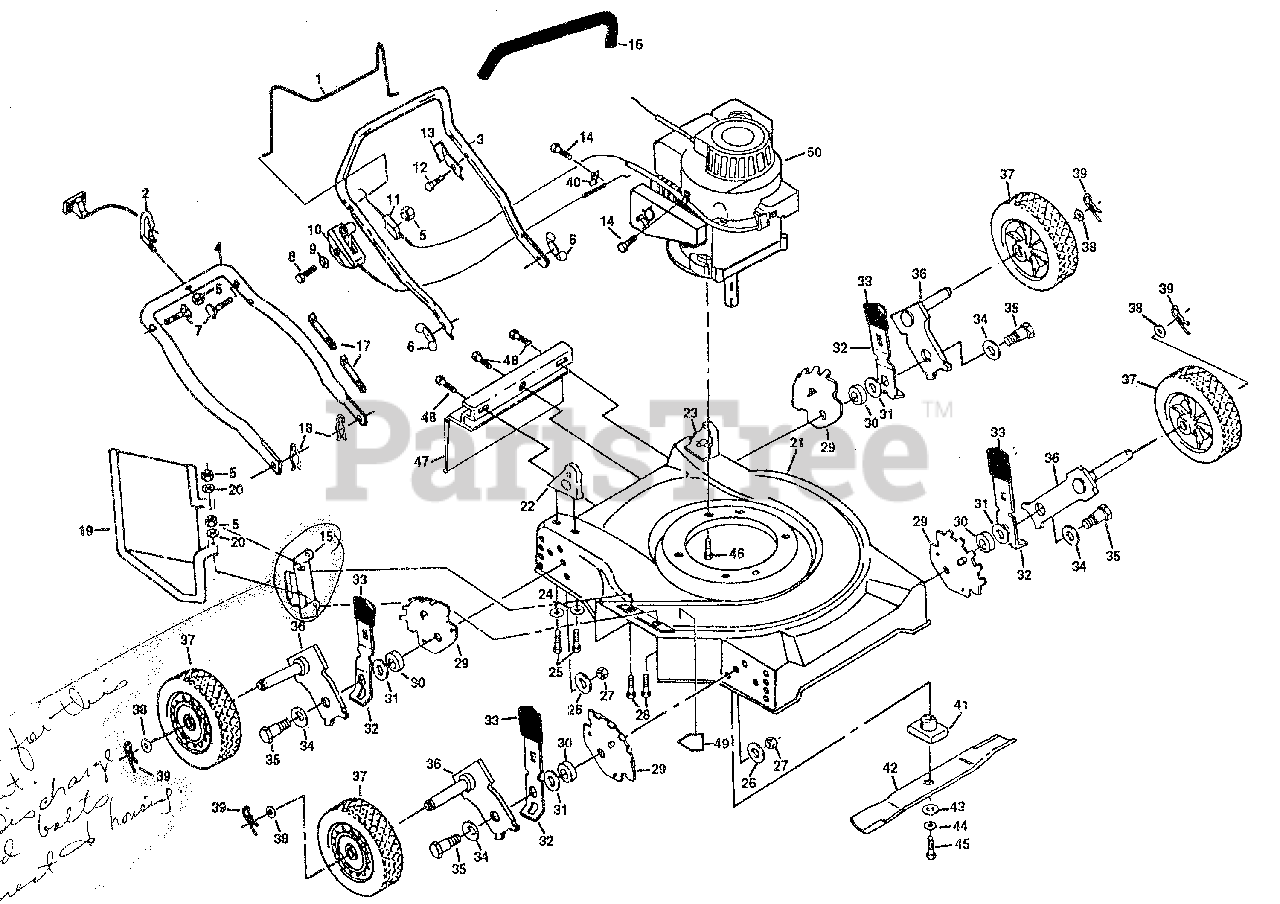

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532800655

Control Bar
(Superseded to 532850735)

$

$

Not available

2

Husqvarna 532103672

Rope Guide

$

$

Not available

3

Husqvarna 532125174

Upper Handle

$

$

Not available

4

Husqvarna 532125173

Lower Handle
(Superseded to 532157081)

$

$

Not available

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532128638

Wing Nut

$7.49

$

In Stock, Qty 8

0

7

Husqvarna 532058714

Handle Bolt
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532085692

Machine Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532085723

Washer 9/32x5/8x1/16

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532851461

Throttle Control

$

$

Not available

11

Husqvarna 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750097

Hex Washer Head Tapping Screw #10-24x1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 53210788

Thread Rolling Screw

$

$

Currently unavailable

15

Husqvarna 532125231

Housing Bracket

$

$

Currently unavailable

16

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

17

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532851750

Discharge Guard Assembly

$

$

Not available

20

Husqvarna 532053847

Washer
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532800749

Lawn Mower Housing Kit

$

$

Not available

22

Husqvarna 532125164

Handle Bracket Assembly

Note: (Right)

$

$

Not available

23

Husqvarna 532125163

Handle Bracket Assembly

Note: (Left)

$

$

Not available

24

Husqvarna 532059289

Washer 5/16

$4.99

$

In Stock, only 3 left!

0

25

Husqvarna 532055187

Thread Cutting Screw 5/16-18 x 3/4
(Superseded to 817000512)

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 532088348

Flat Washer 3/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532057968

Hex Head Bolt

$

$

Not available

29

Husqvarna 532850904

Wheel Adjuster Bracket
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532061537

Washer .39x1.25x.09
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532125168

Selector Spring
(Superseded to 532850856)

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 532087877

Selector Knob

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 532062335

Belleville Washer 1/2

$9.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

36

Husqvarna 532125172

Axle Arm Assembly
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532800060

Wheel & Tire Assembly 7.0 x 1.5
(Superseded to 584458801)

$13.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532052160

Washer

$

$

Not available

39

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

Note: (Engine)

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

42

Husqvarna 532850972

20" Blade
(Superseded to 532145106)

$20.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

44

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532850998

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532008259

Rear Skirt

$

$

Not available

48

Husqvarna 532081276

Hex Washer Head Tapping Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

49

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

50

Engine - Briggs & Stratton Model No. 92502, Type No. 3123-01

$

$

Not available

Husqvarna 532128288

Operator's Manual

Note: (Scandinavian)

$2.49

$

Usually ships in 3-10 days

0

Husqvarna 532128289

Operator's Manual

Note: (European)

$2.49

$

Usually ships in 3-10 days

0

Husqvarna 532801107

Norlett Decal

Note: (Housing)

$

$

Currently unavailable

Husqvarna 532800585

Stripe Decal

Note: (Housing)

$

$

Not available
