350 (71691145) - Allis-Chalmers 20" Snow Thrower, 3hp Housing & Impeller Group Parts Diagram

20" Snow Thrower, 3hp

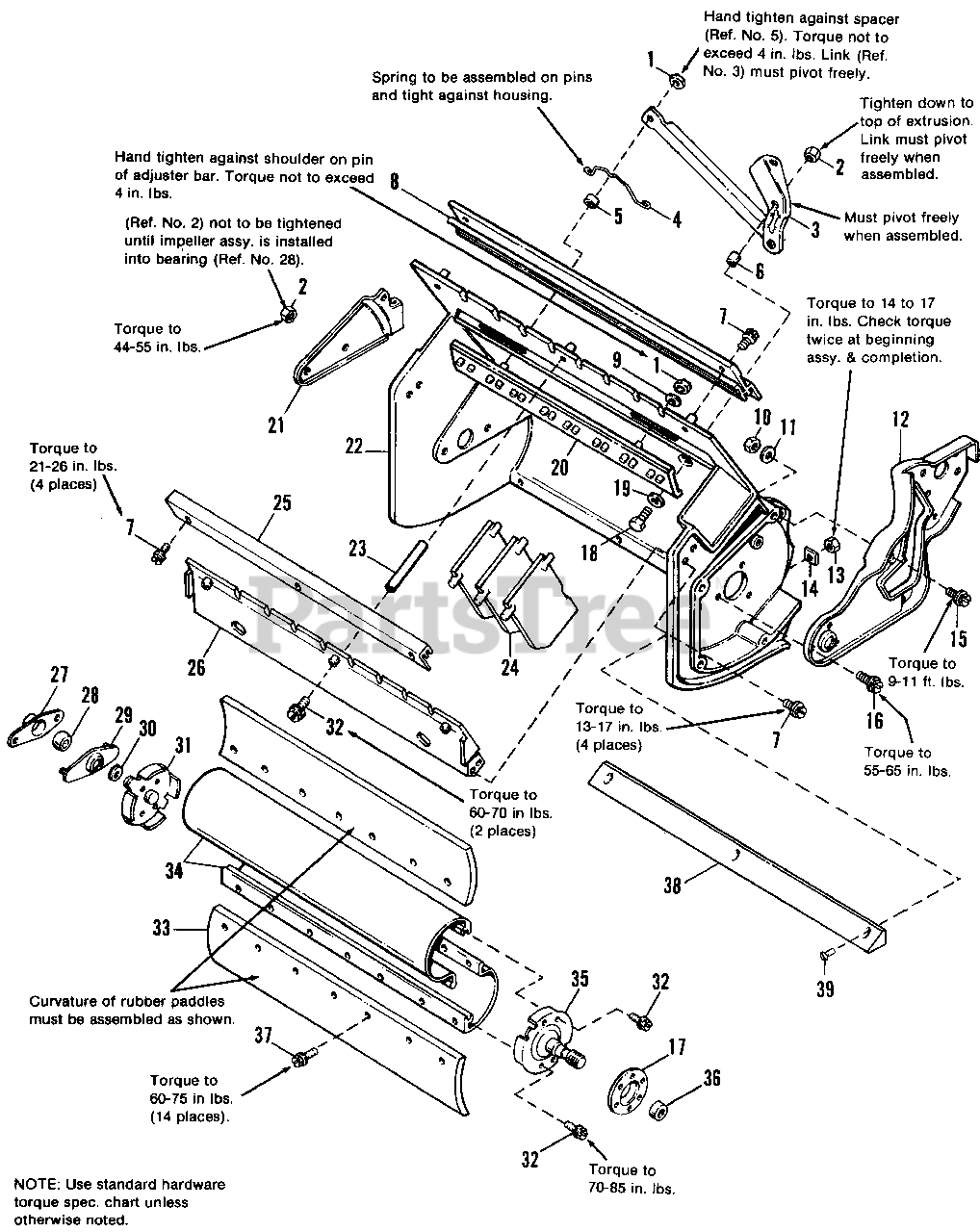

Housing & Impeller Group Parts Diagram

  • Title

1

Simplicity 1664806

NUT, Self-Threading

$

$

Not available

2

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

3

Simplicity 1666500

VANE ASSY., Control

$

$

Not available

4

Simplicity 1664000

SPRING, Detent

$

$

Not available

5

Simplicity 1664793

BUSHING

$

$

Not available

6

Simplicity 1664792SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960001SM

SCREW, Hex, Wash. Hd., Slotted, #10-24 x 1/2
(Superseded to 703062)

$4.49

$

In Stock, Qty 16

0

8

Simplicity 1674130

MOLDING

$

$

Not available

9

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

11

Simplicity 2819326

WASHER, Plain, 5/16

$

$

Not available

12

Simplicity 1667784SM

BRACKET

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 2833896

NUT, Nylon Insert, #10-24

$

$

Not available

14

Simplicity 1666531

WASHER

$

$

Not available

15

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

16

Simplicity 1960001SM

SCREW, Hex, Wash. Hd., #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 16

0

17

Simplicity 1664016

RETAINER, Bearing

$

$

Not available

18

Simplicity 2821960

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available

19

Simplicity 2821319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1664733SM

BAR, Adjustment

$

$

Not available

21

Simplicity 1663424

BRACKET, R.H.

$

$

Not available

22

Simplicity 1668341SM

HOUSING, Impeller

$

$

Not available

23

Simplicity 1665032SM

TUBE

$24.99

$

In Stock, only 1 left!

0

24

Simplicity 1664773SM

VANE

$10.99

$

Usually ships in 2-12 days

0

25

Simplicity 1664785SM

MOLDING

$

$

Not available

26

Simplicity 1612097SM

MOUNT, Front

$69.99

$

Usually ships in 2-12 days

0

27

Simplicity 1664752

FLANGE

$

$

Not available

28

Simplicity 1664750

BEARING

$

$

Not available

29

Simplicity 1664751

FLANGE ASSY.

$

$

Not available

30

Simplicity 2819387

WASHER, Plain, 5/8

$

$

Not available

31

Simplicity 1664017

FLANGE & SHAFT ASSY., R.H.

$

$

Not available

32

Simplicity 1960134SM

SCREW, Hex Wash. Hd., Slotted, #10-14 x 1

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 1677173SM

PADDLE

$15.99

$

Usually ships in 2-12 days

0

34

Simplicity 1663869SM

DRUM, Impeller

$

$

Not available

35

Simplicity 1663952SM

FLANGE & SHAFT ASSY., L.H.

$42.99

$

Usually ships in 2-12 days

0

36

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

37

Simplicity 2833958

SCREW, Hex Wash. Hd., Taptite, 1/4-20 x 1-1/4

$

$

Not available

38

Simplicity 1685280SM

SCRAPER BAR KIT

Note: Includes Ref. No. 13, 14 & 39.

$87.99

$

Usually ships in 2-12 days

0

39

Simplicity 2832569

SCREW, Mach., Flat Hd., #10-24 x 1

$

$

Not available
