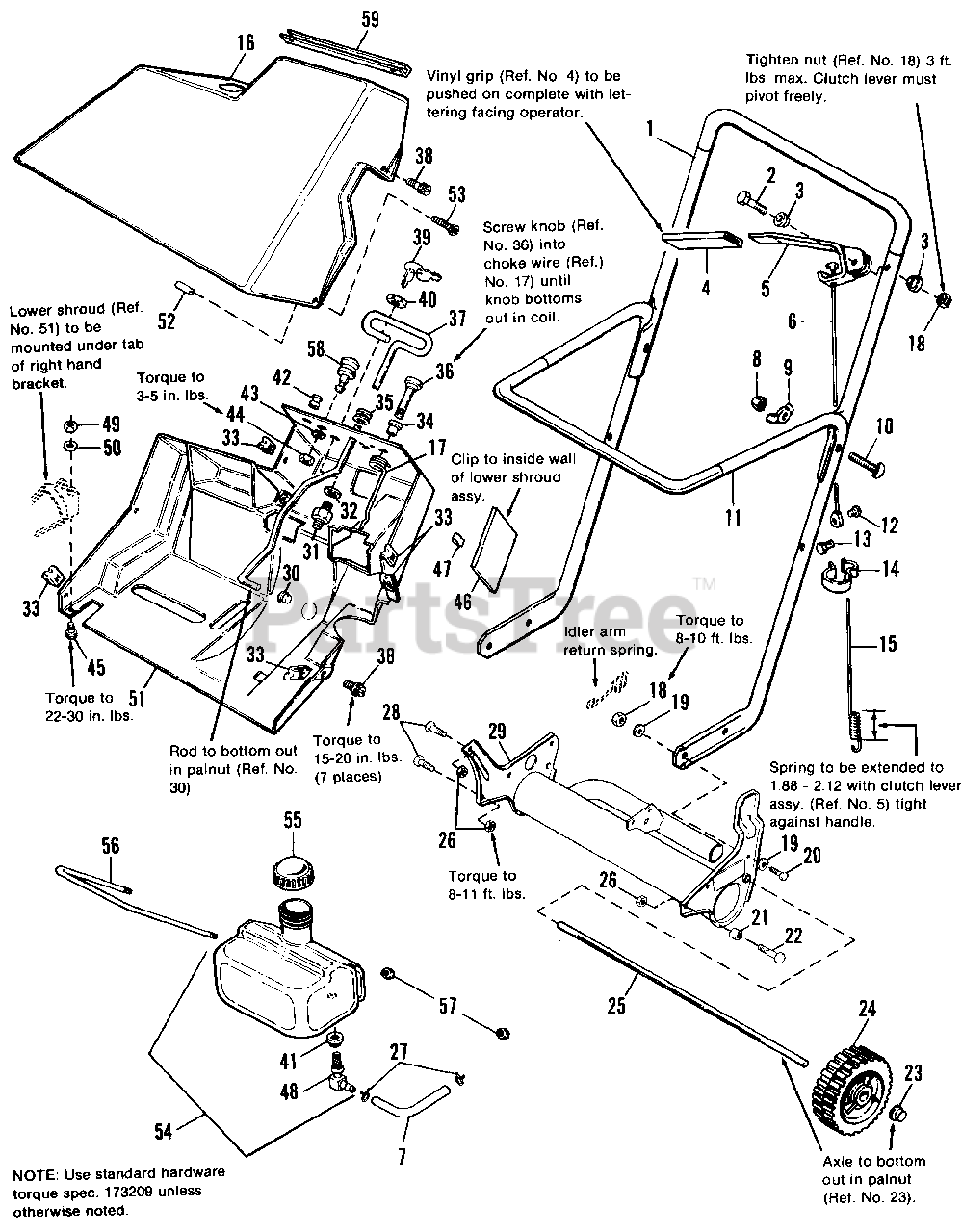

350 (71691145) - Allis-Chalmers 20" Snow Thrower, 3hp Frame, Handle & Shroud Group Parts Diagram

20" Snow Thrower, 3hp

Frame, Handle & Shroud Group Parts Diagram

  • Title

1

Simplicity 1685334SM

HANDLE, Upper

$119.99

$

Usually ships in 2-12 days

0

2

Simplicity 2821962

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

3

Simplicity 1665369

SPACER

$

$

Not available

4

Simplicity 1664904

GRIP, Handle

$

$

Not available

5

Simplicity 1664814

LEVER ASSY., Clutch

$

$

Not available

6

Simplicity 1664673SM

CABLE ASSY., Clutch Control

$23.99

$

In Stock, only 1 left!

0

7

Simplicity 1674227

HOSE, Fuel

$

$

Not available

8

Simplicity 2833707

NUT, Acorn, 5/16-18

$

$

Not available

9

Simplicity 1664794

NUT, Wing

$

$

Not available

10

Simplicity 1665221

BOLT, Curved Hd.

$

$

Not available

11

Simplicity 1685334SM

HANDLE, Lift

$119.99

$

Usually ships in 2-12 days

0

12

Simplicity 912731

SCREW, Round Hd., #8-32 x 5/16

$

$

Not available

13

Simplicity 1664926SM

SWIVEL

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 2108812

CLIP

$

$

Not available

15

Simplicity 1664465SM

SPRING, Tension

$39.99

$

Usually ships in 2-12 days

0

16

Simplicity 1674127

SHROUD, Upper

$

$

Not available

17

Simplicity 1664971

WIRE, Choke Control

$

$

Not available

18

Simplicity 2823358

LOCKNUT, Plain, 1/4

$

$

Not available

19

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

20

Simplicity 2824009

CAPSCREW, Hex Hd., 1/4-20 x 7/8

$

$

Not available

21

Simplicity 1663956

SPACER, L.H.

$

$

Not available

22

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

23

Simplicity 1960093SM

PUSHNUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1663428SM

WHEEL

$

$

Not available

25

Simplicity 1663429

AXLE

$

$

Not available

26

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

27

Simplicity 2154372

HOSE, Clamp

$

$

Not available

28

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

29

Simplicity 1668340

MUFFLER

$

$

Not available

30

Simplicity 1960126SM

PUSHNUT, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

31

Simplicity 1664804SM

SWITCH, Ignition
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

32

Simplicity 2818906

LOCKWASHER, Int. Tooth, 5/8

$

$

Not available

33

Simplicity 2833741

NUT, Speed, "U", #10

$

$

Not available

34

Simplicity 1664817

GUIDE, Choke Knob

$

$

Not available

35

Simplicity 1664022SM

GROMMET

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1664582

KNOB, Choke Control

$

$

Not available

37

Simplicity 1664784

ROD, Vane Control

$

$

Not available

38

Simplicity 1960001SM

SCREW, Hex Wash. Hd., Slotted, #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 11

0

39

Simplicity 1717163SM

KEY & RING ASSY., (2 Keys)

$8.99

$

In Stock, Qty 20+

0

40

Simplicity 2122234SM

NUT, Ignition Switch
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

41

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

42

Simplicity 1663453

GUIDE, Starter Rope

$

$

Not available

43

Simplicity 921880

LOCKWASHER, Ext. Tooth, 1/4

$

$

Not available

44

Simplicity 920435

NUT, Hex, Jam, 1/4-20

$

$

Not available

45

Simplicity 2833737

SCREW, Hex Wash. Hd., Slotted, #10-24 x 5/8

$

$

Not available

46

Simplicity 1675051

HEAT SHIELD

$

$

Not available

47

Simplicity 1675072

CLIP, Tinnerman

$

$

Not available

48

Simplicity 1674792SM

FITTING, Fuel Tank

$15.99

$

In Stock, Qty 13

0

49

Simplicity 2833896

LOCKNUT, Center, #10-24

$

$

Not available

50

Simplicity 2823212

WASHER, Plain, #10

$

$

Not available

51

Simplicity 1611991

SHROUD, Lower

$

$

Not available

52

Simplicity 1704690SM

SPACER

$15.99

$

Usually ships in 2-12 days

0

53

Simplicity 1674147

SCREW, Plastite, #10-14 x 1-3/4

$

$

Not available

54

Simplicity 1674241

TANK ASSY., Fuel

Note: Ref. No. 54 Includes Ref. Nos. 41 & 48.

$

$

Not available

55

Simplicity 1714020SM

GAS CAP

$31.99

$

In Stock, only 3 left!

0

56

Simplicity 1674131

CLAMP, Tank

$

$

Not available

57

Simplicity 1960077SM

NUT, Hexlock, Nylon #8-32

$1.99

$

Usually ships in 2-12 days

0

58

BULB, Primer

$

$

Not available

59

Simplicity 1677498

CHANNEL, Trim

$

$

Not available
