350 (196-350-100) - Cub Cadet 40" Single Stage Snow Thrower Attachment (1986 & Before) att2 Snow Thrower Mounting Parts Diagram

40" Single Stage Snow Thrower Attachment

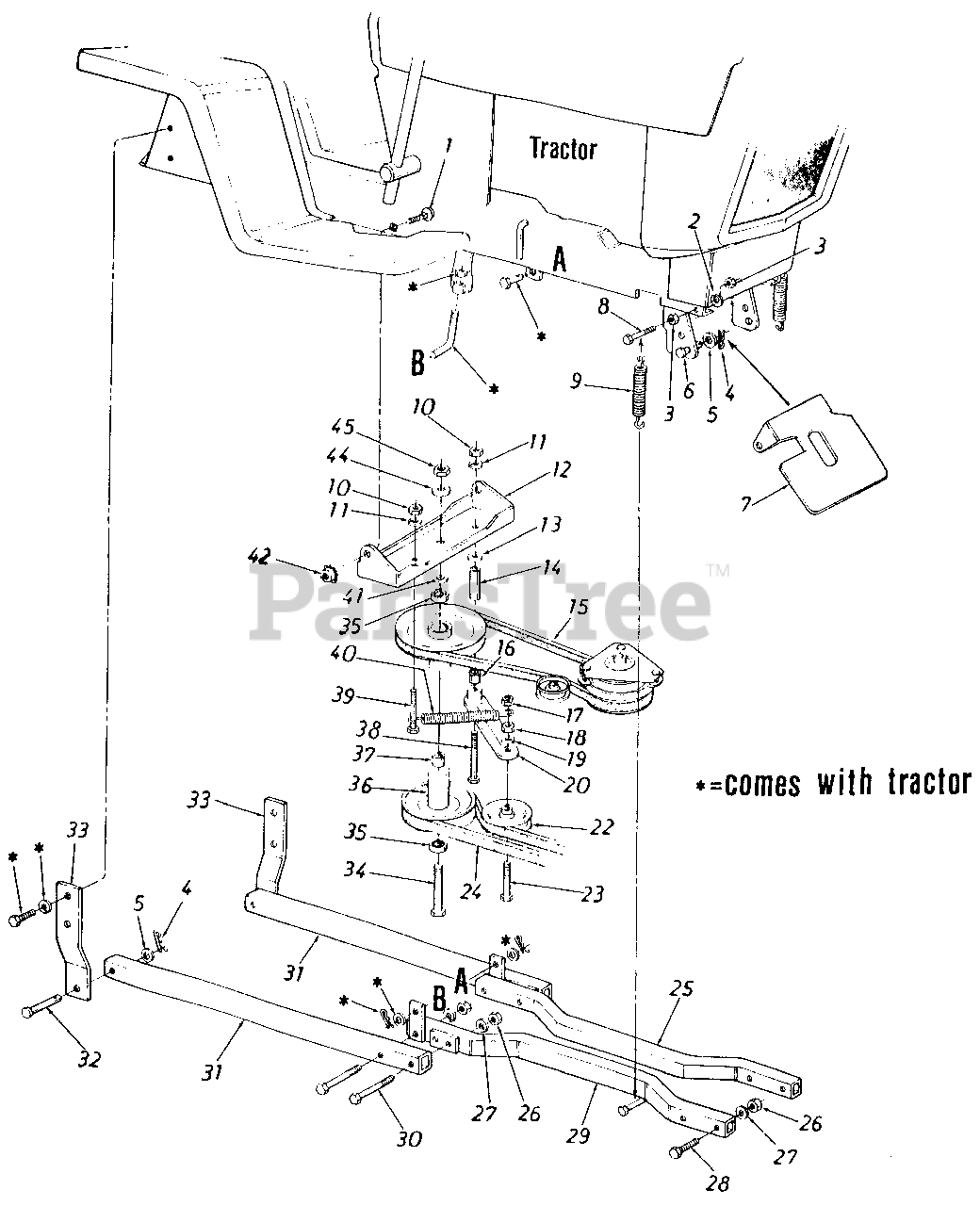

Snow Thrower Mounting Parts Diagram

  • Title

1

Cub Cadet 710-0260

BOLT, 5/16-18 X .62 CRG
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0329

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 712-0138

NUT, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 714-0101

PIN, 1/2 INT COT

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 736-0272

WASHER, .510 X 1.0 FLAT

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 711-0332

PIN, LIFT BRACKET
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

7

Cub Cadet 784-5091

BRACKET, GUIDE (.510 DIA)

$

$

Not available

8

Cub Cadet 710-0428

BOLT, 1/4-28 X 1.25

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet 732-0480

SPRING, EXTENSION .81 OD X 4.75 LONG

$

$

Not available

10

Cub Cadet 712-0342

NUT, 3/8-16 JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

11

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 784-5086

BRACKET, JACKSHAFT SUPPORT

$

$

Not available

13

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 750-0511

SPACER, .37 X .562 X 1.50 LONG

$

$

Not available

15

Cub Cadet 754-0290

BELT, V (1/2 X 47" LONG) (A POLYSTER)
(Superseded to 954-0290)

$

$

Not available

16

Cub Cadet 750-0252

SPACER, .377 X .600 X .830 LONG
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

17

Cub Cadet 712-0266

NUT, 3/8-16 LOCK
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0342

NUT, 3/8-16 JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

19

Cub Cadet 736-0169

WASHER, 3/8 LOCK

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 703-1292

ARM ASSY. IDLER
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

?21

NOT USED

$

$

Not available

22

Cub Cadet 756-0417

PULLEY, IDLER

$

$

Not available

23

Cub Cadet 710-0756

BOLT, 3/8-16 X 2.25

$

$

Not available

24

Cub Cadet 754-0291

BELT, V (1/2 X 88.0" LONG) (A POLYSTER)
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

25

Cub Cadet 784-5105

TUBE ASSY. FRONT SUPPORT LH

Variations

Cub Cadet 784-5105-0499

TUBING ASSEMBLY-FT-SUP - CUB BEIGE (0499)

$

$

Not available

$

$

26

Cub Cadet 712-0206

NUT, 1/2-13

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0921

WASHER, 1/2 LOCK

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 710-0490

BOLT, 1/2-13 X 2.75

$

$

Not available

29

Cub Cadet 784-5106

TUBE ASSY. FRONT SUPPORT RH

$

$

Not available

30

Cub Cadet 710-0786

BOLT, 1/2-13 X 4

$16.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-0641

TUBE, 1-1/2 X 38.0 IN. LONG SQ

$

$

Not available

32

Cub Cadet 711-0510

PIN, .50 X 2.19 CLEVIS

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 784-5089

PLATE, REAR HANGER

$

$

Currently unavailable

34

Cub Cadet 710-0929

BOLT, 5/16-18 X 4.50
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0155

BEARING, BALL (.62 ID X 1.38 OF X .44)
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

36

Cub Cadet 756-3036

PULLEY, DOUBLE GROOVE

$

$

Not available

37

Cub Cadet 750-3043

SPACER, PULLEY

$

$

Not available

38

Cub Cadet 710-0644

BOLT, 3.8-16 X 3.25
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

39

Cub Cadet 710-0756

BOLT, 3/8-16 X 2.25

$

$

Not available

40

Cub Cadet 732-0470

SPRING, EXTENSION (.54 OD X 5.25" LONG)
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

41

Cub Cadet 736-0290

WASHER, 5/8 X 1 X .063

$6.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0267

NUT, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

?43

NOT USED

$

$

Not available

44

Cub Cadet 736-0317

WASHER, .630 X 1.25 BELLEVILLE

$7.99

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0318

NUT, 5/16-18 JAM

$3.49

$

In Stock, Qty 12

0
