350 (195-350-100) - Cub Cadet 40" Single Stage Snow Thrower Attachment (1986 & Before) Snow Thrower 42 Inch (Single Stage) Parts Diagram

40" Single Stage Snow Thrower Attachment

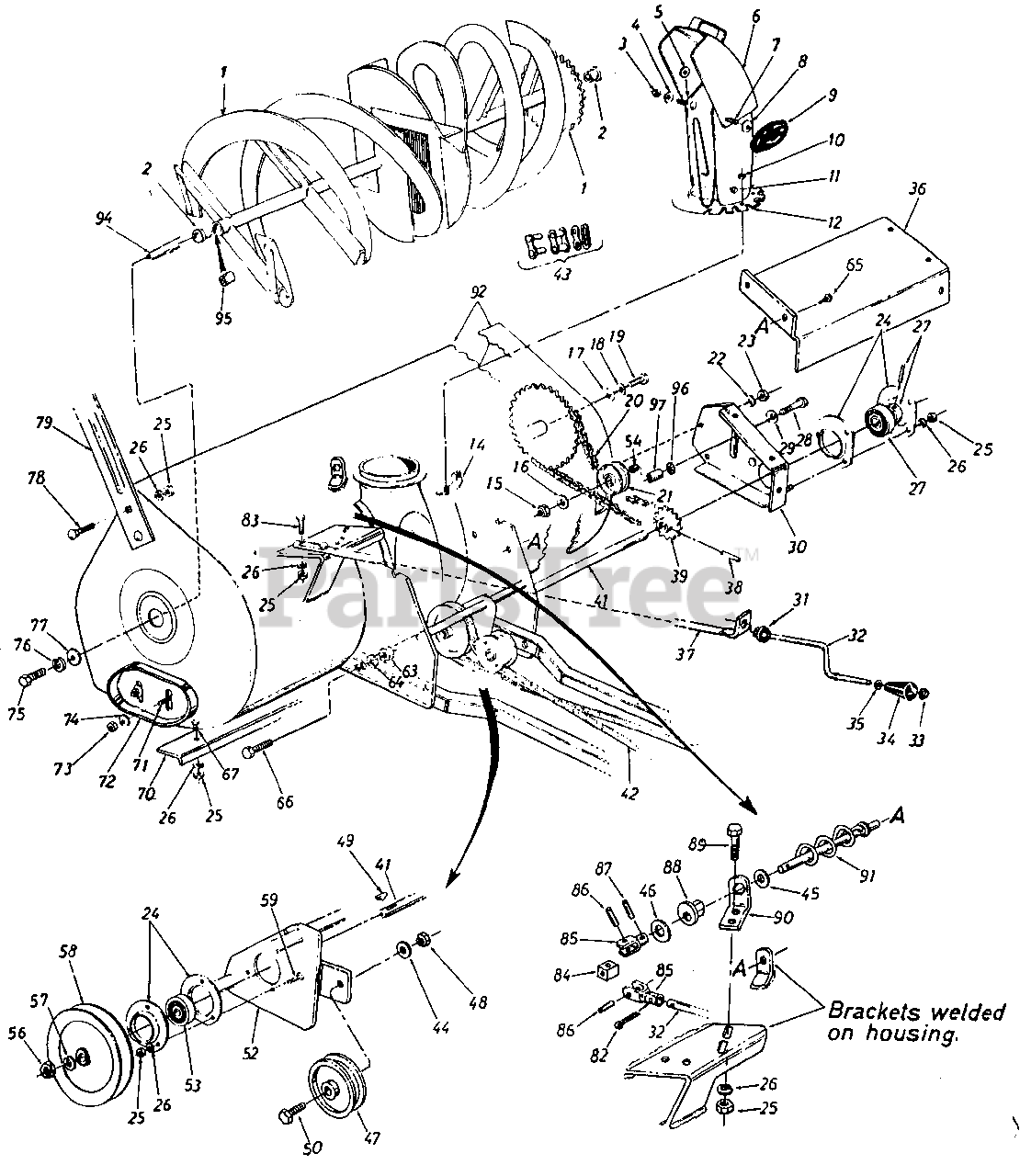

Snow Thrower 42 Inch (Single Stage) Parts Diagram

  • Title

1

Cub Cadet 05730

ROTOR ASSY.

$

$

Not available

2

Cub Cadet 741-0227

BEARING, FLANGE

$11.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0158

NUT, 5/16-18 LOCK
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

4

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0179

WASHER, 3/8 FLAT

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 05225

CHUTE ASSY. TOP

$

$

Currently unavailable

7

Cub Cadet 710-0260

BOLT, 5/16-18 X .62 CRG
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 09966

KNOB, HAND
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0107

NUT, 1/4-20 LOCK
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 726-0111

CAP, PUSH-.188 DIA ROD

$

$

Not available

12

Cub Cadet 05954

CHUTE ASSY.

$

$

Currently unavailable

?13

NOT USED

$

$

Not available

14

Cub Cadet 05031

KEPPER ASSY. CHUTE FLANGE

$

$

Not available

15

Cub Cadet 712-0375

NUT, 3/8-16 LOCK

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 736-0300

WASHER, FLAT

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0179

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 736-0253

WASHER, BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0493

BOLT, 1/2-13 X 1
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

20

Cub Cadet 713-0189

CHAIN (77 LINKS OF NO.420 1/2" PITCH)

$

$

Not available

21

Cub Cadet 756-0358

IDLER, PLASTIC (2.00 IN. DIA)

$

$

Not available

22

Cub Cadet 736-0329

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

23

Cub Cadet 712-0287

NUT, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet 741-0311

HOUSING, BEARING
(Superseded to 941-0311)

$

$

Not available

25

Cub Cadet 712-0267

NUT, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0119

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 741-0310

BEARING, SELF-ALIGNING

$

$

Not available

28

Cub Cadet 710-0347

BOLT, 3/8-16 X 1.75

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 05721

GUARD ASSY, CHAIN

$

$

Not available

31

Cub Cadet 735-0218

GROMMET
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 747-0487

GRANK, CHUTE (.375 DIA X 39 IN. LONG)

$

$

Not available

33

Cub Cadet 726-0100

NUT, 3/8 PUSH-ON

$4.49

$

In Stock, Qty 17

0

34

Cub Cadet 720-0171

KNOB, 3/8 DIA HOLE
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0117

WASHER, FLAT
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

36

Cub Cadet 784-5092

COVER, DRIVE SHAFT

$

$

Not available

37

Cub Cadet 749-0675

SUPPORT, CRANK

Variations

Cub Cadet 749-0675-0637

TUBING-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 715-0118

PIN, 5/16 X 1.75 SPIRAL

$12.99

$

In Stock, Qty 7

0

39

Cub Cadet 713-0188

SPROCKET ASSY, 14T

$70.99

$

Usually ships in 3-6 days

0

?40

NOT USED

$

$

Not available

41

Cub Cadet 784-5078

SHAFT, DRIVE

$

$

Not available

Cub Cadet 754-0236

BELT, V (1/2 X 85.2 LONG) (KEVLAR)
(Superseded to 954-0236)

$

$

Not available

43

Cub Cadet 713-0154

LINK, MASTER (FOR NO. 420 CHAIN)
(Superseded to 913-0154)

$

$

Not available

44

Cub Cadet 736-0169

WASHER, 3/8 LOCK

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0140

WASHER, .385 X .62

$7.49

$

In Stock, Qty 6

0

46

Cub Cadet 736-0234

WASHER, .390 X 1.50

$6.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 756-0417

IDLER W/FLANGES, FLAT

$

$

Not available

48

Cub Cadet 712-0342

NUT, 3/8-26 JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

49

Cub Cadet 714-0388

KEY, NO.61 HI-PRO
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0520

BOLT, 3/8-16 X 1.50

$4.49

$

In Stock, Qty 5

0

?51

NOT USED

$

$

Not available

52

Cub Cadet 05725

HOUSING, ROTOR

$

$

Currently unavailable

53

Cub Cadet 741-0309

BEARING, SELF-ALIGNING
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 741-0322

SLEEVE, BEARING (.50 ID)

$

$

Not available

?55

NOT USED

$

$

Not available

56

Cub Cadet 712-0301

NUT, 3/4-10

$7.99

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0367

WASHER, 3/4 LOCK
(Superseded to 936-0364)

$

$

Not available

58

Cub Cadet 756-0456

PULLEY, V (.750 ID X 6.00 OD)

$

$

Not available

59

Cub Cadet 710-0198

BOLT, 5/16-18 X .75 SEMS
(Superseded to 910-0198)

$

$

Not available

?60

NOT USED

$

$

Not available

?61

NOT USED

$

$

Not available

?62

NOT USED

$

$

Not available

63

Cub Cadet 712-0239

NUT, 1/2-20 LOCK

$5.99

$

In Stock, Qty 20+

0

64

Cub Cadet 736-0921

WASHER, 1/2 LOCK

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 710-0599

SCREW, 1/4-20 X .50 HEX-WASHER-HD TAP

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0504

BOLT, 1/2-20 X 1.25

$

$

Not available

67

Cub Cadet 710-0260

BOLT, 5/16-18 X .62 CRG
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

?68

NOT USED

$

$

Not available

?69

NOT USED

$

$

Not available

70

Cub Cadet 05723

PLATE, SHAVE

Variations

Cub Cadet 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

Cub Cadet 710-0389

BOLT, 3/8-16 X .75 CRG

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 784-5030

SHOW, SKID
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, only 4 left!

0

73

Cub Cadet 712-0798

NUT, 3/8-16

$4.49

$

In Stock, Qty 6

0

74

Cub Cadet 736-0105

WASHER, 3/8 BLELLEVILLE

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 710-0493

BOLT, 1/2-13 X 1
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

76

Cub Cadet 736-0253

WASHER, 1/2 BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

77

Cub Cadet 736-0179

WASHER, 3/8 FLAT

$4.99

$

In Stock, only 2 left!

0

78

Cub Cadet 710-0260

BOLT, 5/16-18 X .62 CRG
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 05139

CUTTER, DRIFT
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

?80

NOT USED

$

$

Not available

?81

NOT USED

$

$

Not available

82

Cub Cadet 714-0111

PIN, 3/32 COT.

$4.99

$

In Stock, Qty 13

0

83

Cub Cadet 710-0442

BOLT, 5/16-18 X 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 711-0584

BLOCK, JOINT

$

$

Not available

85

Cub Cadet 05096

BRACKET ASSY. JOINT

$

$

Not available

86

Cub Cadet 715-0248

PIN, 3/16 X .75 ROLL

$

$

Not available

87

Cub Cadet 715-0103

PIN, 1/8 X .75 ROLL

$

$

Not available

88

Cub Cadet 741-0403

BUSHING, .385 ID HEX.

$

$

Not available

89

Cub Cadet 710-0260

BOLT, 5/16-18 X .62 CRG
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Cub Cadet 784-5085

BRACKET, CHUTE CRANK

$

$

Not available

91

Cub Cadet 784-5084

CRANK ASSY. CHUTE

$

$

Not available

92

Cub Cadet 784-5081

HOUSING ASSY. ROTOR

$

$

Not available

?93

NOT USED

$

$

Not available

94

Cub Cadet 05737

AXLE ASSY. ROTOR

$

$

Not available

95

Cub Cadet 741-0217

BEARING, SLEEVE
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 5

0

96

Cub Cadet 736-0247

WASHER, FLAT

$9.49

$

In Stock, Qty 12

0

97

Cub Cadet 750-0252

SPACER, IDLER
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0
