350 (190-350-100) - Cub Cadet 40" Snow Thrower Attachment att Lift & Carriage Parts Diagram

40" Snow Thrower Attachment

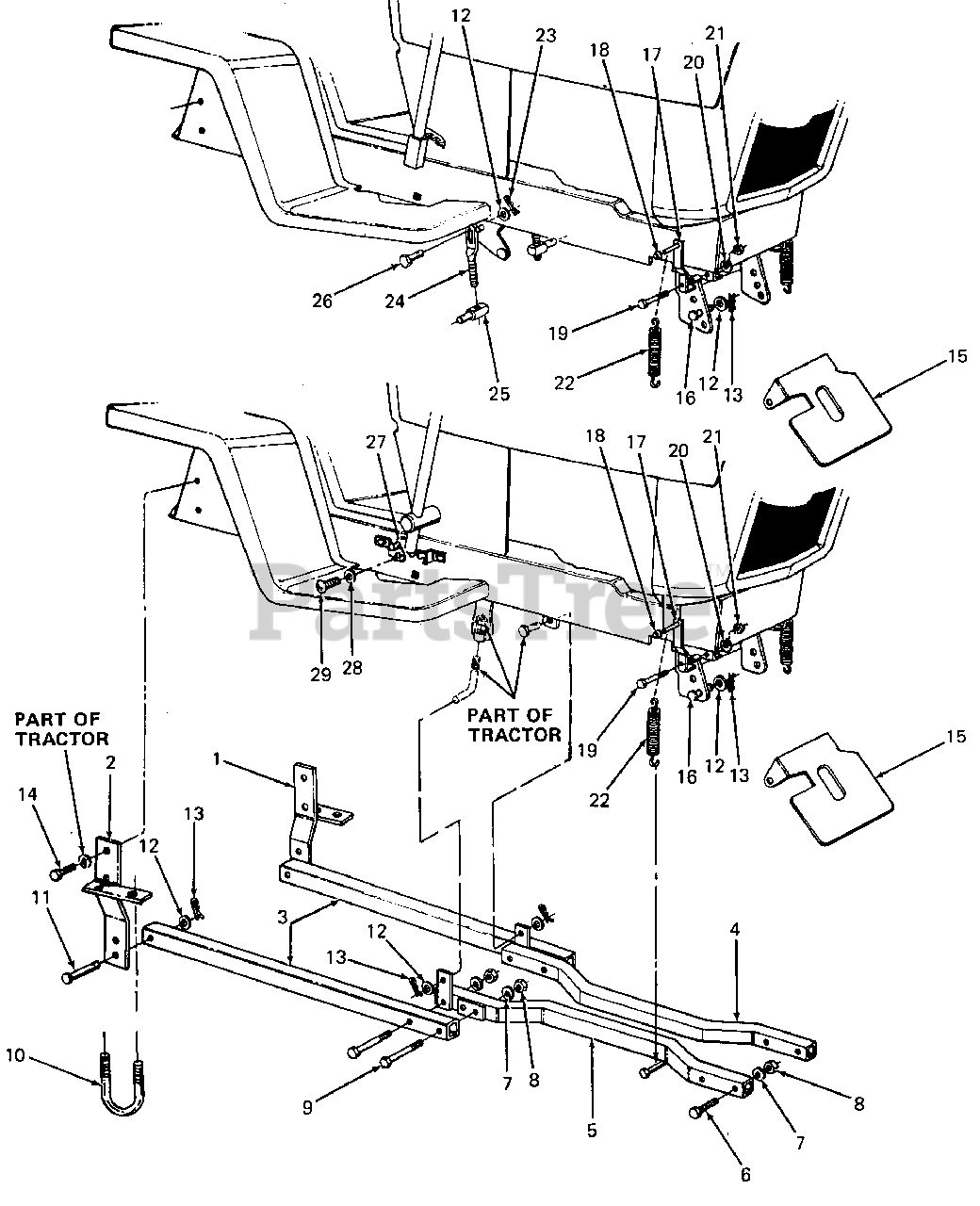

Lift & Carriage Parts Diagram

  • Title

1

Cub Cadet 784-5119A

Hanger, LH - Rear

$

$

Currently unavailable

2

Cub Cadet 784-5120A

Hanger, RH - Rear

$

$

Currently unavailable

3

Cub Cadet 750-0641

Tubing, 1.5 X 1.5 X 35.0 Lg

$

$

Not available

4

Cub Cadet 784-5105

Tubing, LH - Front Support

Variations

Cub Cadet 784-5105-0499

TUBING ASSEMBLY-FT-SUP - CUB BEIGE (0499)

$

$

Not available

$

$

5

Cub Cadet 784-5106

Tubing, RH - Front Support

$

$

Not available

6

Cub Cadet 710-0490

Screw, Hex Cap, 1/2-13 X 2.75

$

$

Not available

7

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0786

Screw, Hex Cap, 1/2-13 X 4.0 Lg

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 747-0657

U-Bolt, 5/16-18 X 2.75 Lg

$

$

Not available

11

Cub Cadet 711-0510

Pin, Clevis, .50 Dia X 2.19 Lg

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0101

Pin, Internal Cotter

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 784-5091A

Bracket, Guide

$

$

Not available

16

Cub Cadet 711-0785

Pin, Clevis, .50 Dia X .40 Lg

$

$

Not available

17

Cub Cadet 784-5206

Bracket, Helper Spring

Variations

Cub Cadet 784-5206-0637

BRACKET-ASSEMBLY-HELPE - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 726-0106

Cap, Speed Nut Push

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0428

Screw, Hex Cap, 1/4-28 X 1.25 Lg

$2.49

$

In Stock, only 1 left!

0

20

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

21

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0488

Spring, Extension, 1.0 OD X 4.17 Lg

$

$

Not available

23

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

24

Cub Cadet 719-3010

Link, Adjustment
(Superseded to 919-3010)

$

$

Not available

25

Cub Cadet 711-3021

Ferrule, Adjustment
(Superseded to 911-3021)

$34.99

$

In Stock, only 1 left!

0

26

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

27

Cub Cadet 784-5135

Plate, Lift Handle Stop

$

$

Not available

28

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0255

Screw, Truss Mach, 1/4-20 X .75 Lg
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0
