350 (190-350-100) - Cub Cadet 40" Snow Thrower Attachment att Drive Parts Diagram

40" Snow Thrower Attachment

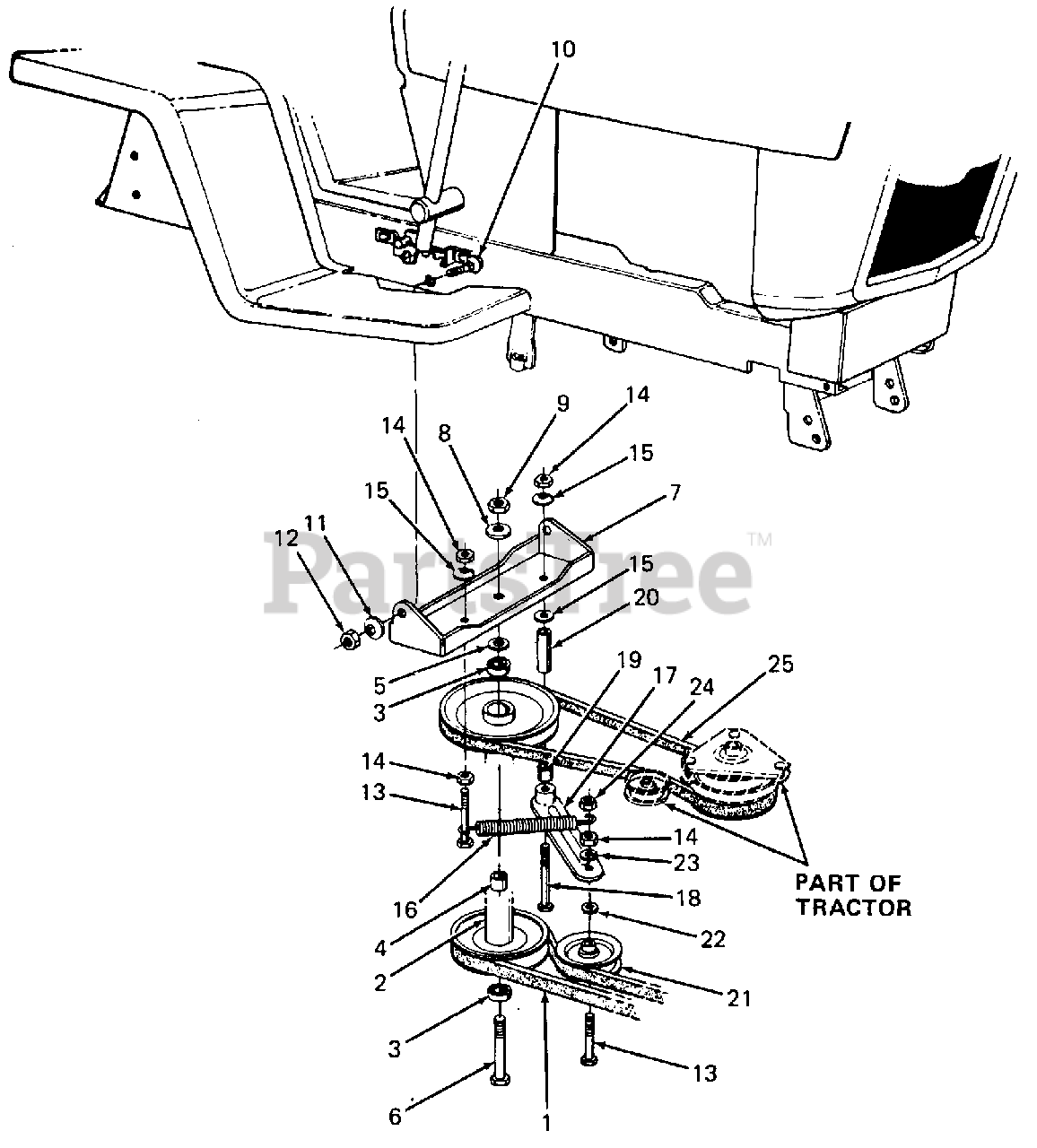

Drive Parts Diagram

  • Title
1

Cub Cadet 754-0330

V-Belt, 1/2 X 90.0 Lg
(Superseded to 954-0330)

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 759-3477

Pulley Assembly, Double Drive

Note: [Includes Ref No. 3 (Qty 2) & 4]

$

$

Not available

3

Cub Cadet 741-0155

Bearing, Ball, .62 X 1.38 X .44 Wide
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

4

Cub Cadet 750-3043

Spacer, Pulley

$

$

Not available

5

Cub Cadet 736-0290

Washer, Flat, .640 X 1.0 X .063 Thk HDN

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3152

Screw, Hex Cap, 5/8-18 X 5.0 Lg GR5

$

$

Not available

7

Cub Cadet 784-5121

Bracket, Jack Shaft Support

Variations

Cub Cadet 784-5121-0637

BRACKET ASSEMBLY-JACKSH - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 736-0317

Washer, Bell, .640 X 1.25 X .09 Thk

$7.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0318

Nut, Hex Jam, 5/8-18

$3.49

$

In Stock, Qty 12

0

10

Cub Cadet 710-0260

Bolt, Carriage, 5/16-18 X .62 Lg
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0756

Screw, Hex Cap, 3/8-16 X 2.25 Lg

$

$

Not available

14

Cub Cadet 712-0342

Nut, Hex Jam, 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet 736-0105

Washer, Bell, .380 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 732-0470A

Spring, Extension, .53 OD X 4.75 Lg
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

17

Cub Cadet 703-1292

Arm, Idler
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0644

Screw, Hex Cap, 3/8-16 X 3.25 Lg
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

19

Cub Cadet 750-0252

Spacer, .3776 X .500 X .830 Lg
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

20

Cub Cadet 750-0511

Spacer, .37 X .562 X 1.50 Lg

$

$

Not available

21

Cub Cadet 756-0417

Pulley, Idler

$

$

Not available

22

Cub Cadet 736-0206

Washer, Flat, .378 X 1.0 X .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 754-0352

V-Belt, 1/2 A X 48.0 Lg
(Superseded to 954-0352)

$

$

Not available
