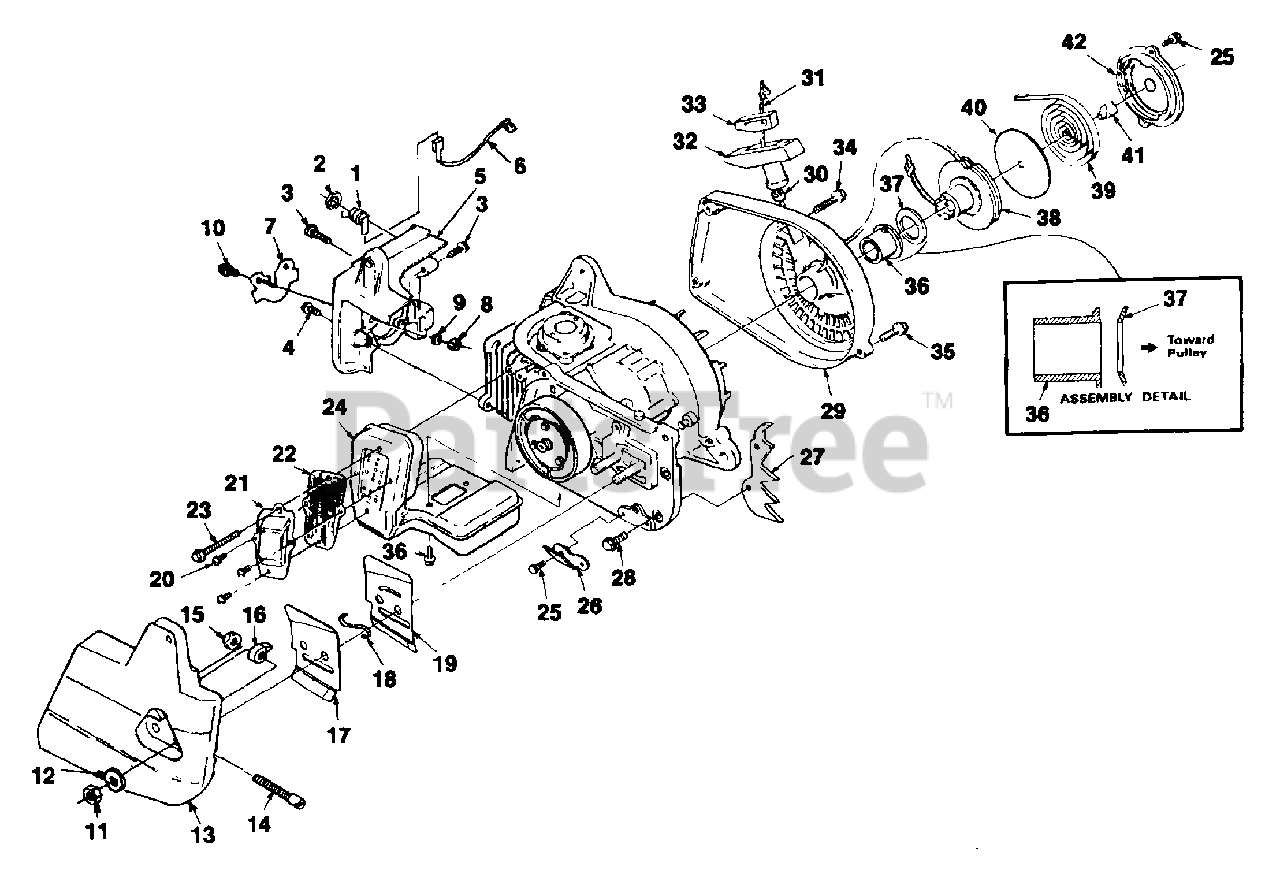

35 SL (UT-10670) - Homelite Chainsaw Starter & Muffler Parts Diagram

Chainsaw

Starter & Muffler Parts Diagram

  • Title

1

Homelite A576503B

SWITCH-Grounding

Note: Includes Item 2

$

$

Not available

2

Homelite 720841A

NUT

$

$

Currently unavailable

3

Homelite 88051

SCREW-Hex sems (10-24 x 3/4")

$

$

Not available

4

Homelite 88054

SCREW-(10-24 x 1 1/4")
(Superseded to UP04267)

$

$

Not available

5

Homelite 947792

SHIELD-Cylinder

$

$

Not available

6

Homelite A94850

LEAD-Ground

$

$

Not available

7

Homelite 792951

SHIELD-Insert

$

$

Currently unavailable

8

Homelite 81223

NUT-Centerlock (8-32)

$

$

Not available

9

Homelite 84025

WASHER-Flat (#8)

$

$

Not available

10

Homelite 88041

SCREW-Hex sems (8-32 x 3/8")

$

$

Not available

11

Homelite 81196

NUT-Hex (5/16-18)
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

12

Homelite 84032

WASHER-Flat (5/16")

$

$

Not available

13

Homelite A939302

COVER-Drivecase

Note: Includes Items 14 - 16

$

$

Not available

14

Homelite 93962

SCREW-Guide bar adjusting
(Superseded to UP05583)

$20.99

$

Usually ships in 3-7 days

0

15

Homelite 81206

NUT-Centerlock (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

16

Homelite 651121

PIN-Guide bar adjusting
(Superseded to 651121A)

$

$

Not available

Homelite A70688

KIT-Guide bar plate

Note: Includes Items 17 - 19

$

$

Currently unavailable

17

Homelite 70398

PLATE-Guide bar (Outer)
(Superseded to UP07300)

$

$

Not available

18

Homelite 69966

SPRING-Guide bar
(Superseded to UP07407)

$7.99

$

Usually ships in 3-7 days

0

19

Homelite 70397

PLATE-Guide bar (Inner)

$

$

Not available

20

Homelite 82370

SCREW

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 947951

PLATE-Exhaust

$

$

Currently unavailable

22

Homelite 94797

SPARK ARRESTOR SCREEN

$

$

Not available

23

Homelite 93460

SCREW

$

$

Not available

24

Homelite A947851

MUFFLER

$459.99

$

Usually ships in 3-7 days

0

25

Homelite 88042

SCREW

$

$

Not available

26

Homelite 70705

STOP-Chain

$

$

Not available

27

Homelite A12272D

BUMPER-Spiked (accessory)

Note: Includes Item 28

$

$

Not available

28

Homelite 88048

SCREW-Hex hd. (10-24 x 3/8")
(Superseded to 5687301)

$

$

Not available

29

Homelite A12114A

HOUSING-Rewind starter

Note: Includes Item 30

$

$

Currently unavailable

30

Homelite 65185

BUSHING-Rope

$

$

Not available

31

Homelite 94564A

ROPE-Starter (38" #4)

$

$

Not available

32

Homelite A69962B

GRIP-Starter rope

Note: Includes Item 33

$19.99

$

Usually ships in 3-7 days

0

33

Homelite 70018A

INSERT-Rope retaining

$

$

Not available

34

Homelite 88055

SCREW-Hex sems (10-24 x 1 3/8")

$

$

Not available

35

Homelite 82218

SCREW-w/Washer (10-24 x 1 1/8")

$

$

Not available

36

Homelite 12053

BUSHING-Starter

$

$

Not available

37

Homelite 70842

WASHER-Spring

$

$

Not available

38

Homelite A12214A

PULLEY & CUP

$

$

Currently unavailable

39

Homelite 65107

Spring-Rewind

$

$

Not available

40

Homelite 12052

SPRING-Shield

$

$

Not available

41

Homelite 65102

LOCK-Spring

$

$

Not available

42

Homelite A02566

STARTER COVER & DECAL KIT

$

$

Currently unavailable
