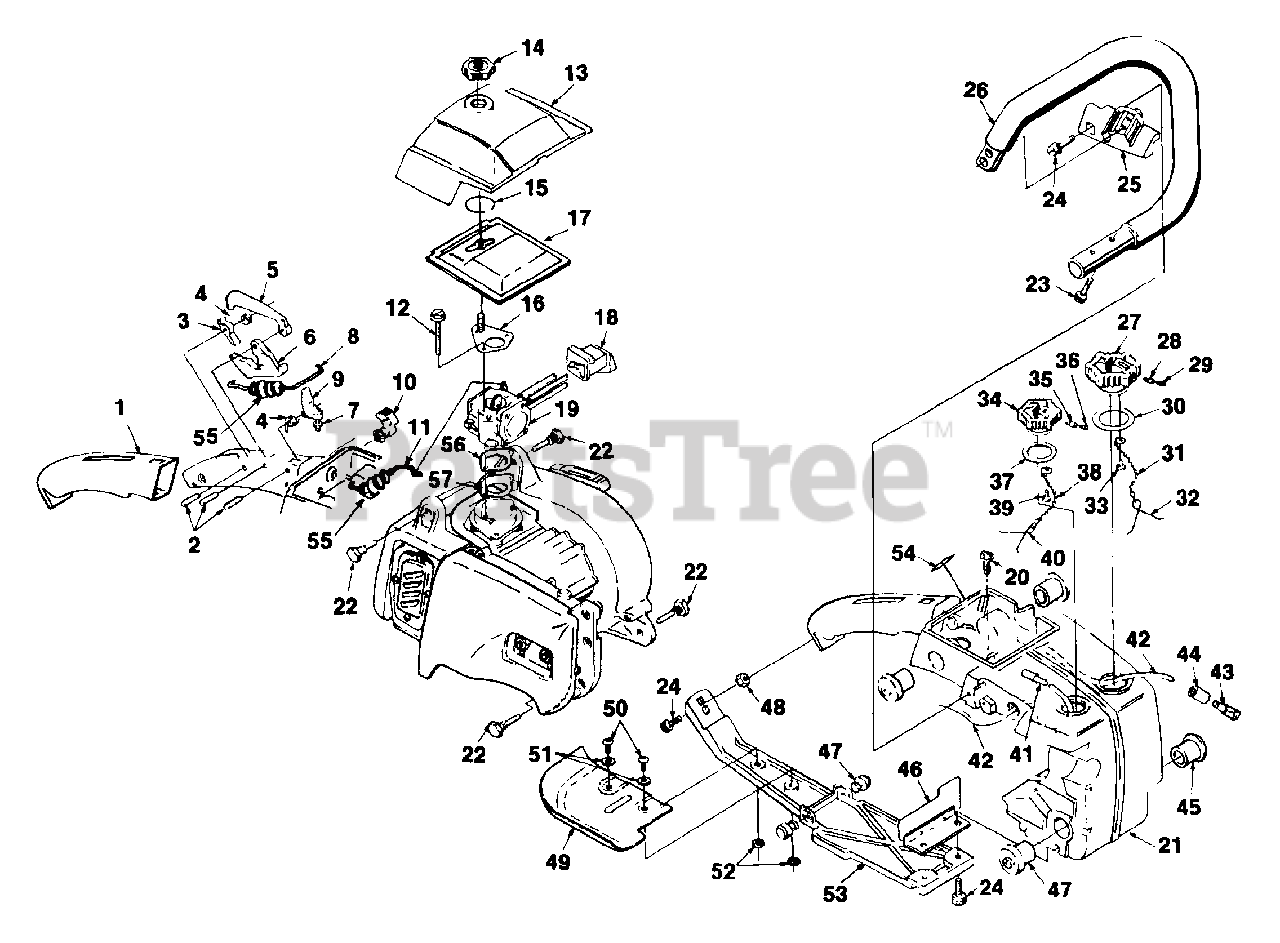

35 SL (UT-10670) - Homelite Chainsaw Intake, Handles & Tank Parts Diagram

Chainsaw

Intake, Handles & Tank Parts Diagram

  • Title

1

Homelite 12049

GRIP-Throttle handle

$

$

Not available

2

Homelite 70253

PIN-Dowel

$

$

Not available

3

Homelite 12092

LEVER-Trigger lock

$

$

Not available

4

Homelite 12051

SPRING-Torsion

$

$

Not available

5

Homelite 12093

LOCK-Trigger

$

$

Not available

6

Homelite A12966

KIT-Trigger & Screw

Note: Includes Item 7

$

$

Currently unavailable

7

Homelite 120941A

SCREW-Trigger latch

$

$

Currently unavailable

8

Homelite 120781A

ROD-Throttle

$

$

Currently unavailable

9

Homelite 120911A

LATCH-Trigger

$

$

Currently unavailable

10

Homelite 94765

KNOB-Choke

$

$

Not available

11

Homelite 94977

ROD-Choke

$

$

Not available

12

Homelite 93460

SCREW-Hex sems (10-24 x 1 3/4")

$

$

Not available

13

Homelite 704256

AIR FILTER COVER

$

$

Currently unavailable

14

Homelite A676392

NUT-Filter cover mounting

$

$

Not available

15

Homelite 58319A

RING-Retaining

$

$

Not available

16

Homelite A93240

BRACKET-Mounting cover

$

$

Currently unavailable

17

Homelite 78209

FILTER-Air

$

$

Not available

18

Homelite 12054

GROMMET-HI-LO

$

$

Not available

19

Homelite A97801

CARBURETOR-(HDC-39-A)

$

$

Currently unavailable

20

Homelite 88050

SCREW-Hex sems (10-24 x 5/16")
(Superseded to 88063)

$2.99

$

Usually ships in 3-7 days

0

21

Homelite A79357A

HOUSING-Engine

$

$

Currently unavailable

Homelite A70624A

SET-Isolator pin

Note: Includes Item 22

$

$

Currently unavailable

22

Homelite 12100B

PIN-Isolator

$

$

Currently unavailable

23

Homelite 82262

SCREW-Soc. hd. (10-24 x 7/8")

$

$

Not available

24

Homelite 88051

SCREW-Hex sems (10-24 x 3/4")

$

$

Not available

25

Homelite 120592A

BRACKET-Handle bar

$

$

Currently unavailable

26

Homelite A12107A

HANDLEBAR

$

$

Currently unavailable

27

Homelite A69500A

CAP-Fuel filler
(Superseded to UP06559)

Note: Includes Items 28 - 33

$

$

Not available

28

Homelite 69451

VALVE-Check (oval duckbill)

$

$

Not available

29

Homelite 69454

FILTER-Filler cap

$

$

Not available

30

Homelite 69501

GASKET-Fuel cap

$

$

Not available

31

Homelite 69502

CHAIN-Bead

$

$

Not available

32

Homelite 96535

RETAINER

$

$

Not available

33

Homelite 82256A

SCREW-Pan hd. plastite (6 x 1/4")

$

$

Not available

34

Homelite A12222

CAP-Oil filler

Note: Includes Items 35 - 40

$

$

Currently unavailable

35

Homelite 69451

VALVE-Check (oval duckbill)

$

$

Not available

36

Homelite 69454

FILTER-Filler cap

$

$

Not available

37

Homelite 12126

GASKET-Oil cap

$

$

Not available

38

Homelite 69502

CHAIN-Bead

$

$

Not available

39

Homelite 82256A

SCREW-Pan hd. plastite (6 x 1/4")

$

$

Not available

40

Homelite 96535

RETAINER-Cap

$

$

Not available

41

Homelite A59009A

FINDER-Oil

$

$

Currently unavailable

42

Homelite 9311242

TUBING-Rubber (10 1/2")

$

$

Not available

43

Homelite A69923

FUEL PICK-UP
(Superseded to UP06560)

Note: Includes Item 44

$

$

Not available

44

Homelite 64083

FILTER-Felt

$

$

Not available

45

Homelite A70623

SET-Isolator (soft) (set of four)

$

$

Not available

Homelite A70622

SET-Isolator (hard) (set of four)

Note: (Alternate)

$

$

Currently unavailable

46

Homelite A12153

DEFLECTOR-Air (exhaust)

$

$

Currently unavailable

47

Homelite 12096

BUMPER

$

$

Not available

48

Homelite 70810

NUT-Hex (10-24)
(Superseded to UP06986)

$

$

Not available

49

Homelite A12267B

KIT-Right hand guard

Note: (optional) Includes Items 50 - 53

$

$

Currently unavailable

50

Homelite 82275

SCREW-Hex hd. cap

$

$

Not available

51

Homelite 84003

WASHER

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 81208

NUT-Center lock (#10-24)

$

$

Not available

53

Homelite 120422

BRACE-Handle

$

$

Not available

54

Homelite 79304

DECAL-Choke

$7.49

$

Usually ships in 3-7 days

0

55

Homelite 58348

GROMMET

$

$

Not available

56

Homelite A70923A

BUSHING

Note: Includes 57

$

$

Currently unavailable

57

Homelite 70743A

GASKET

$

$

Currently unavailable
