35 - Husqvarna Chainsaw (SN: 19902200001 & Above) FUEL TANK & HANDLE Parts Diagram

Chainsaw

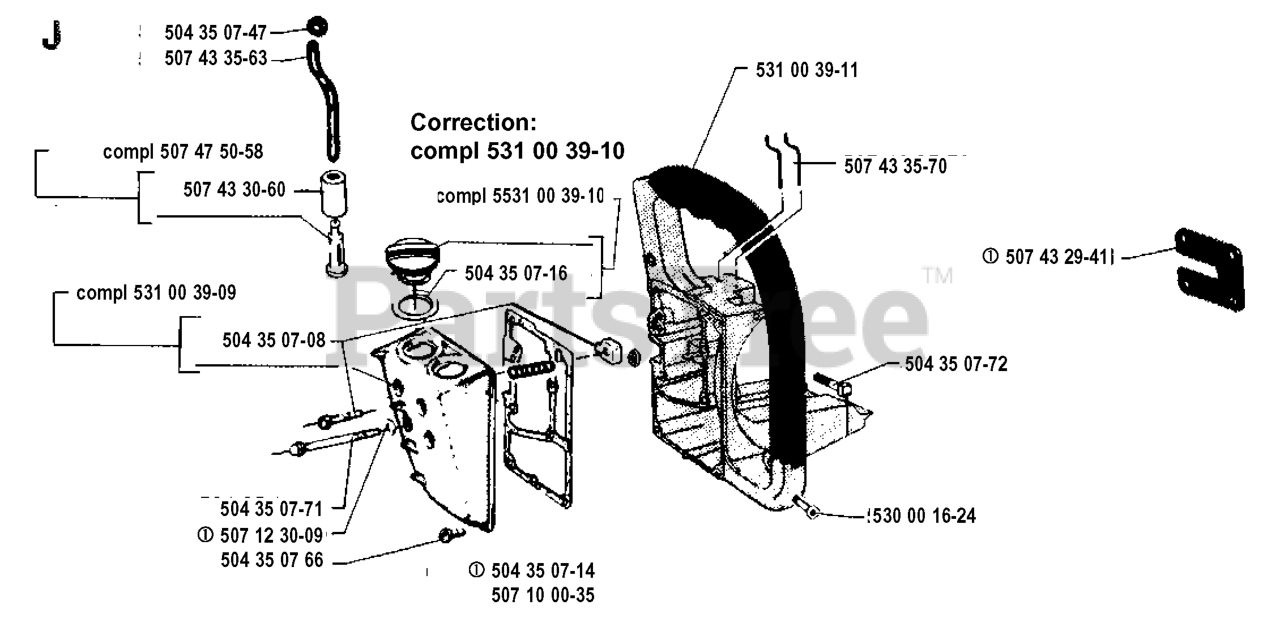

FUEL TANK & HANDLE Parts Diagram

  • Title
504 35 07-72

Husqvarna 504350772

BAR BOLT
(Superseded to 507470820)

$

$

Not available

507 10 00-35

Husqvarna 507100035

OIL PICKUP SCREEN
(Superseded to 507100630)

$

$

Not available

504 35 07-16

Husqvarna 504350716

GASKET
(Superseded to 507100045)

$3.99

$

Usually ships in 3-10 days

0

507 12 30-09

Husqvarna 507123009

FIBER WASHER

$

$

Not available

507 43 29-41

$

$

Not available

507 43 30-60

Husqvarna 507433060

FUEL FILTER

$

$

Not available

531 00 39-09

Husqvarna 531003909

TANK
(Superseded to 507114640)

$

$

Not available

504 35 07-66

Husqvarna 504350766

SCREW
(Superseded to 507410004)

$

$

Not available

504 35 07-71

$

$

Not available

504 35 07-14

Husqvarna 504350714

TANK GASKET
(Superseded to 507100042)

$

$

Not available

530 00 16-24

Husqvarna 530001624

SCREW 1/4-20 X 7/8

$3.99

$

Usually ships in 3-10 days

0

531 00 39-10

Husqvarna 531003910

TANK CAP CPL
(Superseded to 507101641)

Note: CORRECTION:

$

$

Not available

504 35 07-47

Husqvarna 504350747

GROMMET
(Superseded to 507100125)

$

$

Not available

531 00 39-11

Husqvarna 531003911

TANK WITH HANDLE
(Superseded to 507476665)

$116.99

$

Usually ships in 3-10 days

0

504 35 07-08

$

$

Currently unavailable

507 43 35-70

$

$

Not available

507 47 50-58

Husqvarna 507475058

FUEL PICKUP ASSEMBLY
(Superseded to 530091878)

$

$

Not available

507 43 35-63

$

$

Not available
