35 - Husqvarna Chainsaw (SN: 19902200001 & Above) CYLINDER PISTON Parts Diagram

Chainsaw

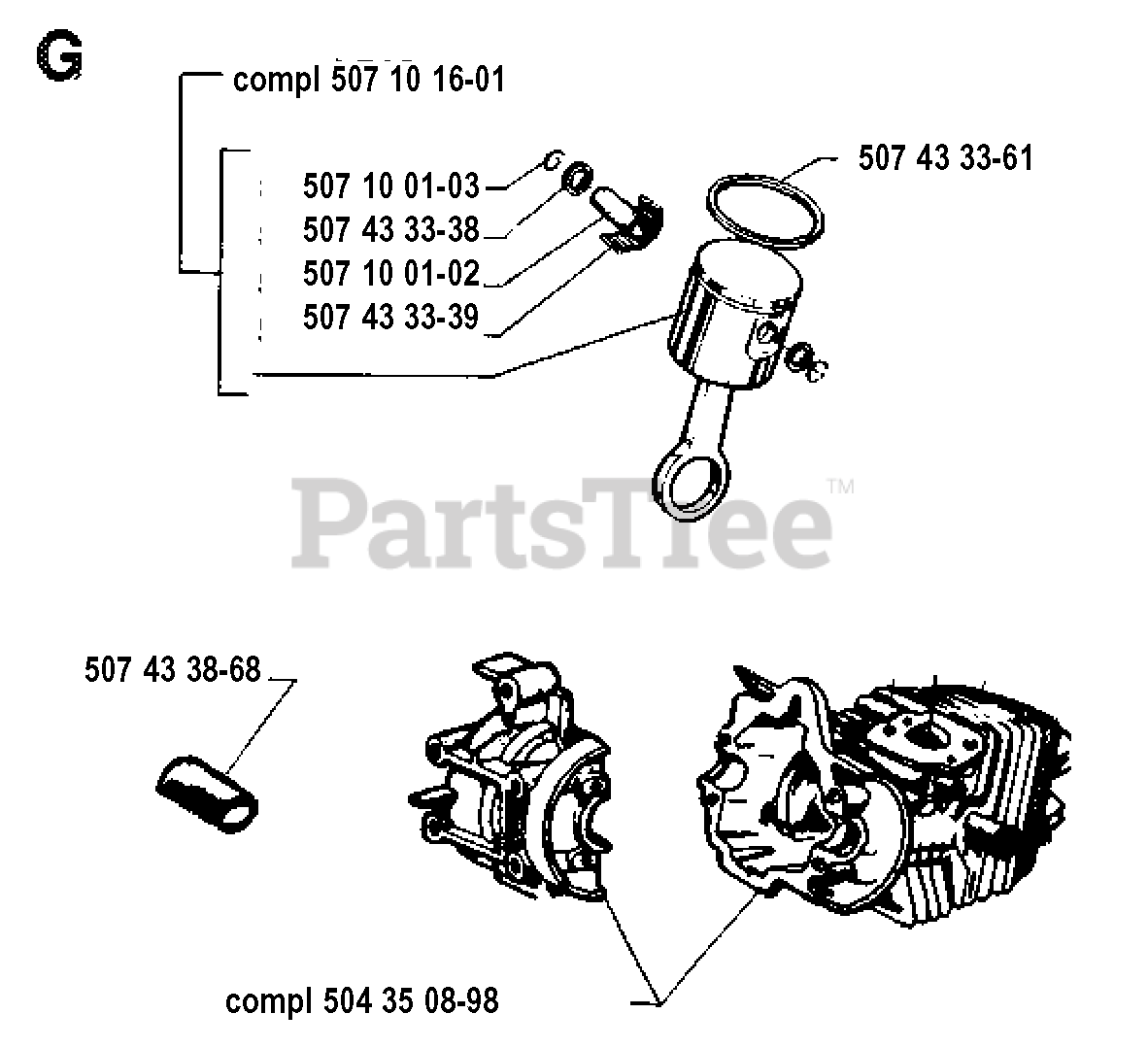

CYLINDER PISTON Parts Diagram

  • Title
507 43 33-39

Husqvarna 507433339

WRIST PIN BEARING

$

$

Not available

507 10 01-03

Husqvarna 507100103

WRIST PIN CLIP

$

$

Not available

507 43 33-38

Husqvarna 507433338

THRUST WASHER

$

$

Not available

507 43 38-68

$

$

Not available

507 43 33-61

Husqvarna 507433361

PISTON RING

$

$

Not available

507 10 01-02

Husqvarna 507100102

WRIST PIN NLA

$

$

Not available

504 35 08-98

Husqvarna 504350898

CYLINDER & CRANKCASE
(Superseded to 507476679)

$

$

Not available

507 10 16-01

Husqvarna 507101601

PISTON CON ROD ASSY.

$

$

Not available
