35 - Husqvarna Chainsaw (SN: 19902200001 & Above) CLUTCH Parts Diagram

Chainsaw

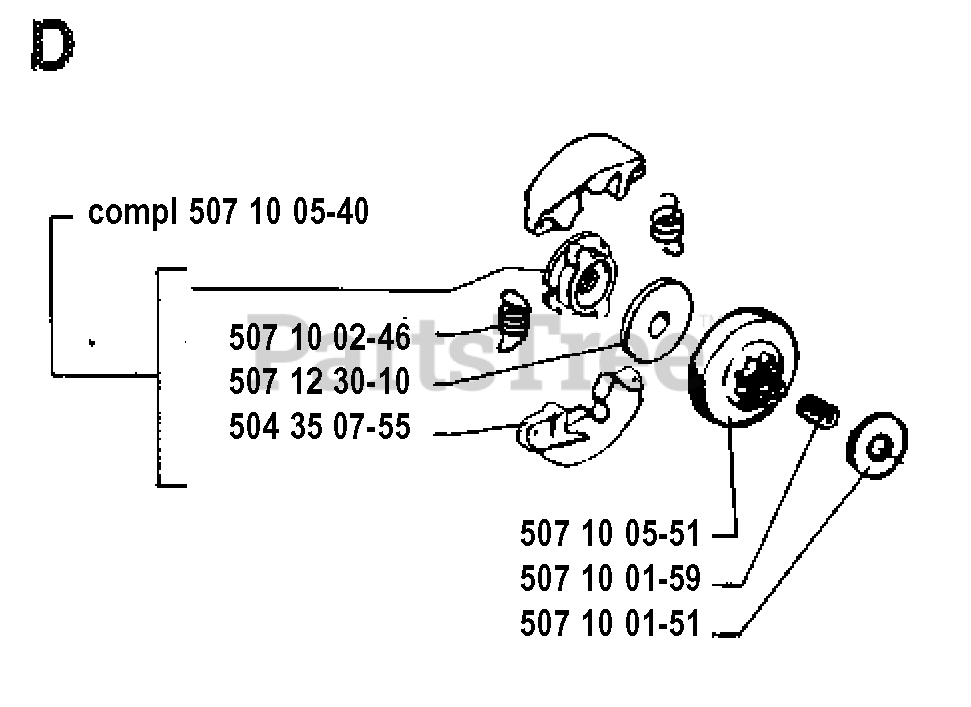

CLUTCH Parts Diagram

  • Title
507 10 05-51

Husqvarna 507100551

CLUTCH DRUM & SPROCKET
(Superseded to 640200084)

$

$

Not available

507 10 01-51

Husqvarna 507100151

SIDE PLATE WASHER

$

$

Not available

507 10 01-59

Husqvarna 507100159

CLUTCH DRUM BEARING

$

$

Not available

507 10 05-40

Husqvarna 507100540

CLUTCH ASSY CPL NLA

$

$

Not available

507 10 02-46

Husqvarna 507100246

CLUTCH SHOE SPRING

$

$

Not available

507 12 30-10

Husqvarna 507123010

HAT WASHER

$

$

Not available

504 35 07-55

Husqvarna 504350755

CLUTCH SHOE
(Superseded to 507100245)

$

$

Not available
