35-30SL03 - Toro 30" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SPINDLE & BLADE ASSEMBLY Parts Diagram

30" Side-Discharge Mower Deck

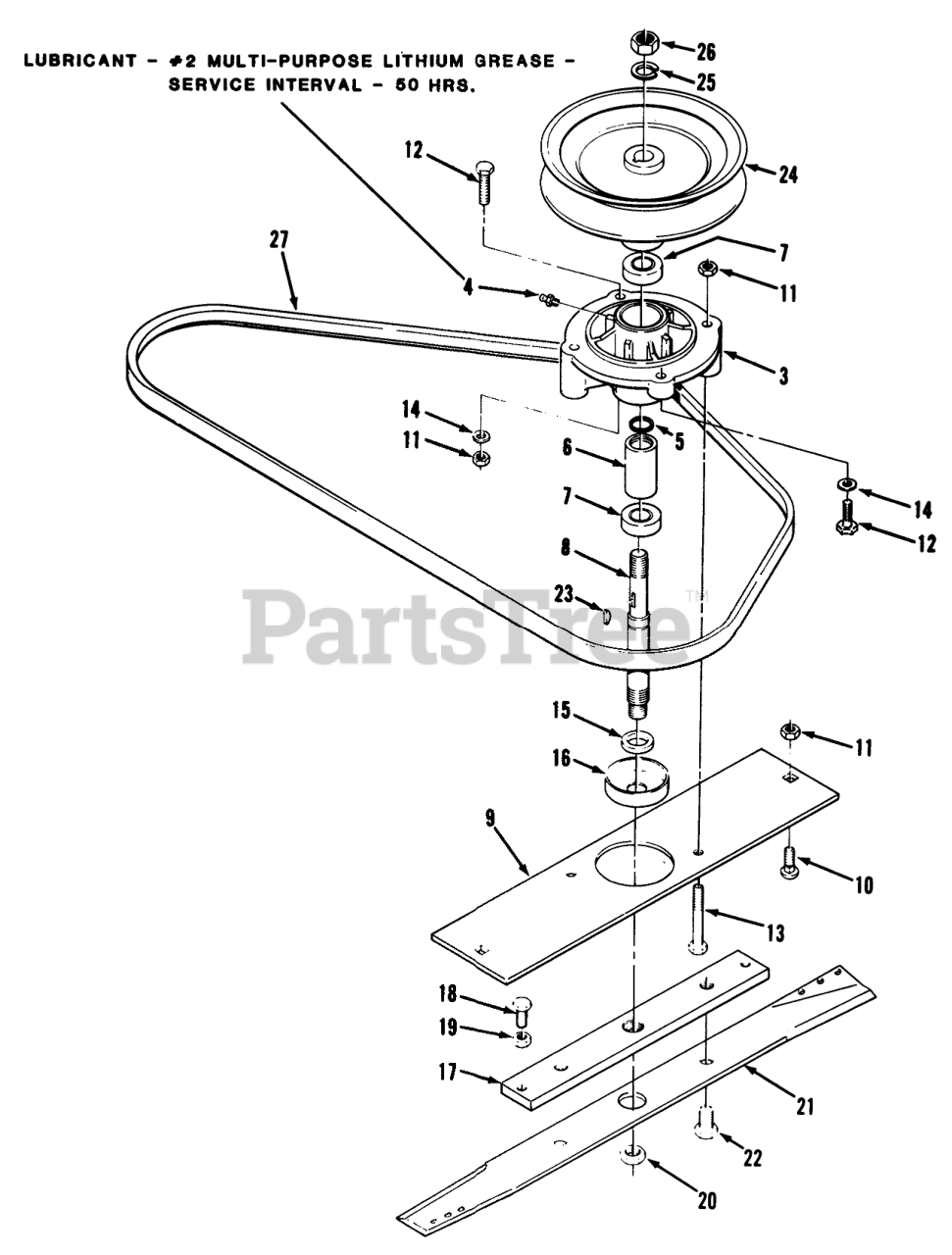

SPINDLE & BLADE ASSEMBLY Parts Diagram

  • Title

3

Toro 111544

HOUSING-SPINDLE

$

$

Not available

4

Toro 302-16

ZERK FITTING

$

$

Not available

5

Toro 936321

SNAP RING

$

$

Not available

6

Toro 111543

TUBE

$

$

Not available

7

Toro 111135

BALL BEARING

$

$

Not available

8

Toro 111542

SHAFT

$

$

Not available

9

Toro 111545

BAR R

$

$

Not available

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-24

NUT-LOCK, NI

$4.99

$

In Stock, Qty 20+

0

15

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

16

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

17

Toro 113309

BAR-BLADE R
(Superseded to 113309-01)

$

$

Not available

18

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

19

Toro 109779

NUT-HEX, JAM

$

$

Not available

20

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

21

Toro 111144

Blade
(Superseded to 112560)

$152.99

$

Usually ships in 3-6 days

0

22

Toro 911440

HEX BOLT 1/2-13X3/4

$

$

Not available

23

Toro 937225

KEY-HI-PRO

$5.49

$

Usually ships in 3-6 days

0

24

Toro 111546

PULLEY HUB ASSY

$222.99

$

Usually ships in 3-6 days

0

25

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

27

Toro 114421

V-BELT DRIVE

$42.99

$

Usually ships in 3-6 days

0
