35-30SL02 - Toro 30" Side-Discharge Mower Deck (SN: 010000001 - 019999999) (1991) DECK ASSEMBLY Parts Diagram

30" Side-Discharge Mower Deck

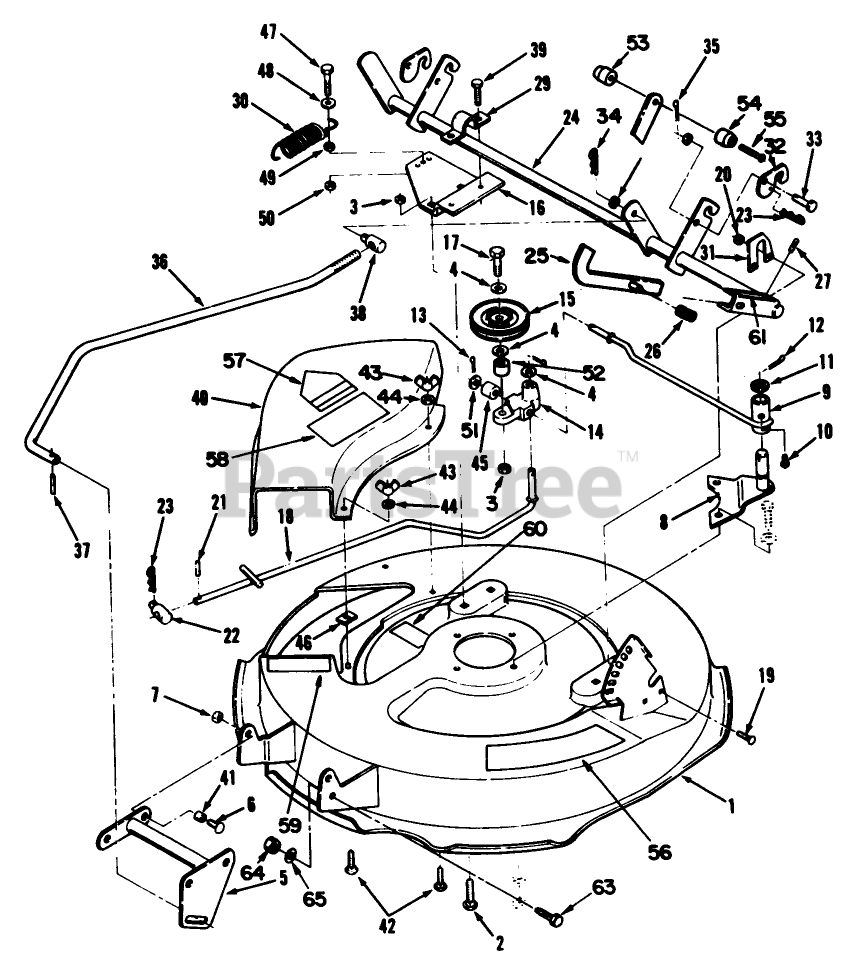

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 117117

ASM-DECK (30" L) R

$

$

Not available

2

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

3

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

4

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

5

Toro 114837

ASM-FRONT LIFT R

$150.99

$

Usually ships in 3-6 days

0

6

Toro 900234

Bolt-Carriage
(Superseded to 3231-22)

$3.49

$

In Stock, Qty 20+

0

7

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

8

Toro 113296

ASM-PIVOT, IDLER

$

$

Not available

9

Toro 119820

WLDMT-IDLER ROD

$

$

Not available

10

Toro 1030

Zerk

$

$

Not available

11

Toro 920232

WASHER
(Superseded to 9202324)

$1.49

$

In Stock, only 3 left!

0

12

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

13

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

14

Toro 111560

BLOCK IDLER

$26.99

$

In Stock, only 1 left!

0

15

Toro 113112

PULLEY-IDLER V

$78.99

$

Usually ships in 3-6 days

0

16

Toro 117324

BRACKET-HEIGHT ADJ M R

$

$

Not available

17

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

18

Toro 113298

ASS'Y-IDLER ROD

$

$

Not available

19

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

20

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

21

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

22

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

23

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 117119

ASSY-HEIGHT ADJ S R

$

$

Not available

25

Toro 78-8321

WLDMT-LIFT LEVER R

$

$

Not available

26

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

27

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

29

$8.99

$

Usually ships in 3-6 days

0

30

Toro 1014

Spring

$

$

Not available

31

Toro 117143

PLATE-RETAINER R

$

$

Not available

32

Toro 120610

LATCH B
(Superseded to 120610-03)

$

$

Not available

33

$

$

Not available

34

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

35

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

36

Toro 113289

ASS'Y-HEIGHT ADJ R

$184.99

$

Usually ships in 3-6 days

0

37

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

38

Toro 7736

STUD-TRUNION

$50.99

$

Usually ships in 3-6 days

0

39

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

40

Toro 115205

Deflector
(Superseded to 115206)

$

$

Not available

41

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

42

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

43

Toro MW8756

Nut-Wing
(Superseded to 32103-19)

$1.49

$

In Stock, only 2 left!

0

44

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

45

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

46

Toro 106535

SPEED NUT 1/4-20

$

$

Not available

47

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

48

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

49

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

50

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

51

Toro 111108

SPACER

$

$

Not available

52

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

53

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

54

Toro 8693

KNOB

$5.99

$

In Stock, Qty 9

0

55

Toro 911747

BOLT-4

$4.99

$

In Stock, Qty 10

0

56

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

57

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

58

Toro 63-1340

WASHER

$3.49

$

Usually ships in 3-6 days

0

59

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

60

Toro 112161

DECAL-BELT ADJUST

$

$

Not available

61

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

63

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

64

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

65

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0
