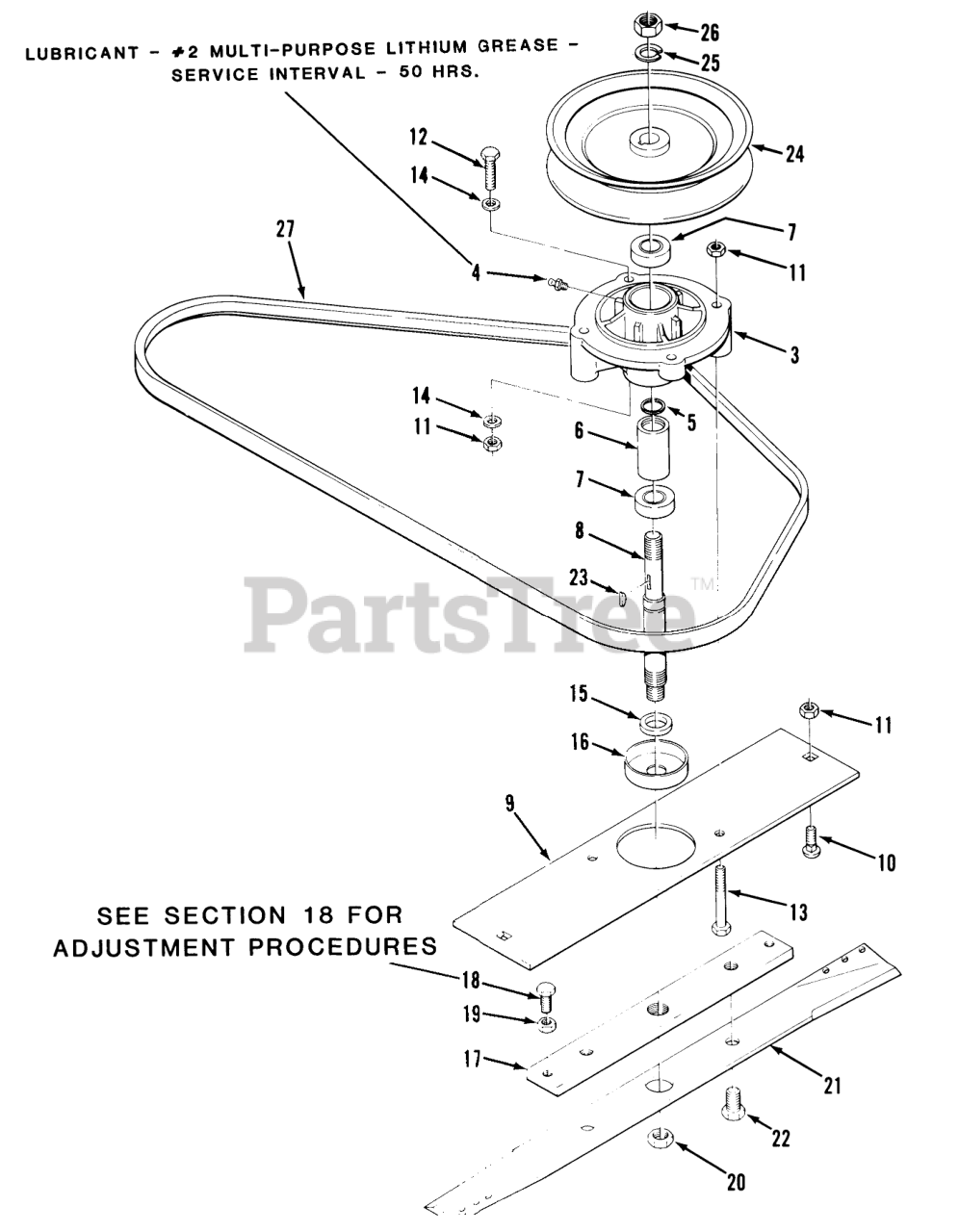

35-30SL01 - Toro 30" Side-Discharge Mower Deck (1990) SIDE DISCHARGE MOWER - 30" (76.2CM), VIN 35-30SL01 Parts Diagram

30" Side-Discharge Mower Deck

SIDE DISCHARGE MOWER - 30" (76.2CM), VIN 35-30SL01 Parts Diagram

  • Title

1

Toro 11541

Spindle Assy (Includes items 3 thru 8)

$

$

Currently unavailable

3

Toro 111544

HOUSING-SPINDLE

$

$

Not available

4

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 936321

SNAP RING

$

$

Not available

6

Toro 111543

TUBE

$

$

Not available

7

Toro 111135

BALL BEARING

$

$

Not available

8

Toro 111542

SHAFT

$

$

Not available

9

Toro 111545

BAR R

$

$

Not available

10

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 20+

0

14

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

15

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

16

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

17

Toro 113309

BAR-BLADE R
(Superseded to 113309-01)

$

$

Not available

18

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

19

Toro 109779

NUT-HEX, JAM

$

$

Not available

20

Toro 9150894

Jam Nut
(Superseded to 3220-6)

$1.49

$

In Stock, only 2 left!

0

21

Toro 111144

Blade
(Superseded to 112560)

$134.99

$

Usually ships in 3-6 days

0

22

Toro 911440

HEX BOLT 1/2-13X3/4

$

$

Not available

23

Toro 937225

KEY-HI-PRO

$4.99

$

Usually ships in 3-6 days

0

24

Toro 117112

PULLEY

$190.99

$

Usually ships in 3-6 days

0

25

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

26

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

27

Toro 114421

V-BELT DRIVE

$38.99

$

Usually ships in 3-6 days

0
