3497 A99 - Electrolux/AYP Tiller (1999) TINE ASSEMBLY Parts Diagram

Tiller

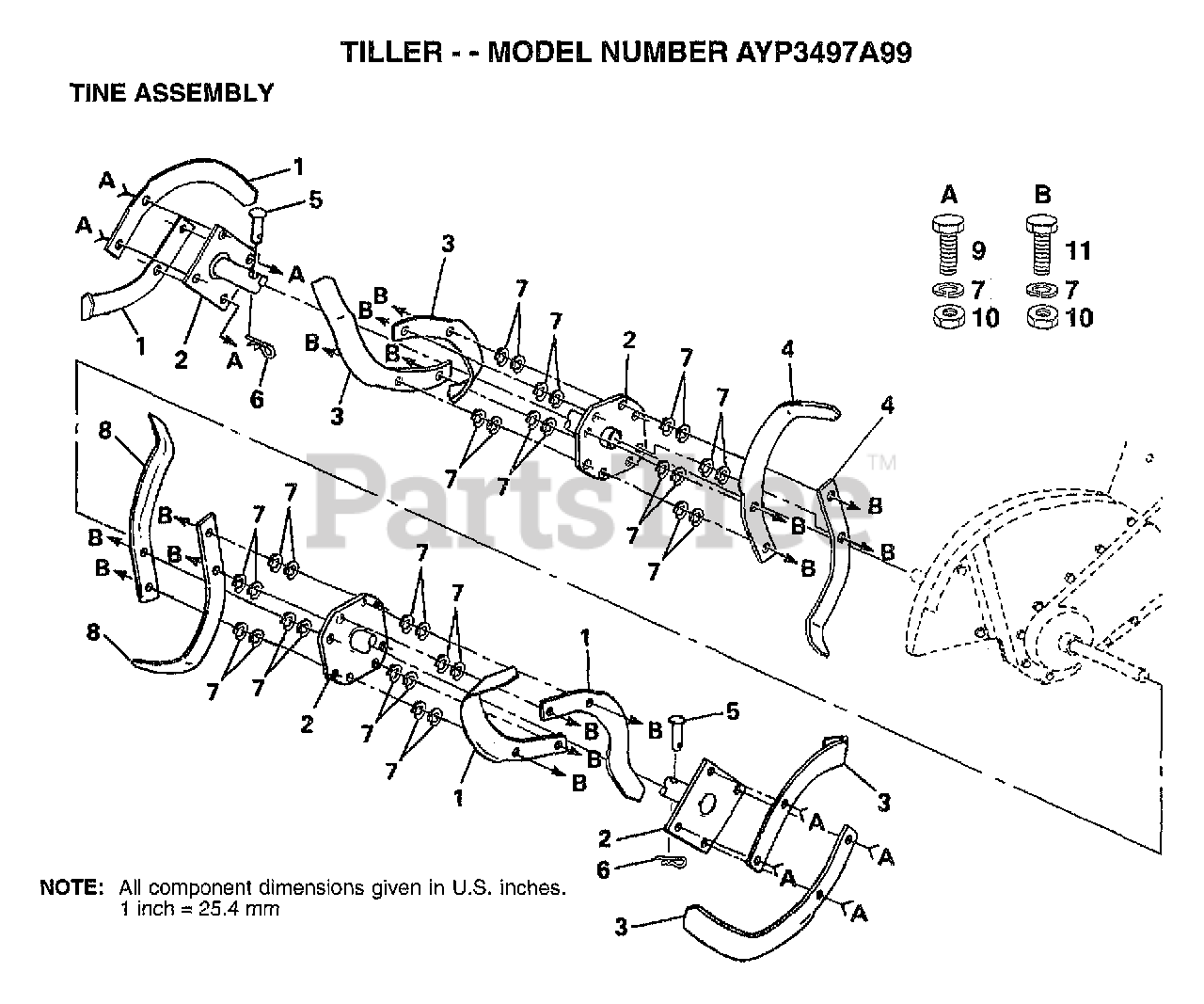

TINE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 6556J

SUB= 101194M

$

$

Not available

2

Electrolux/AYP 100445L

TINE ASSY CRT
(Superseded to 532100445)

$

$

Not available

3

Electrolux/AYP 6557J

SUB= 101193M

$

$

Not available

4

Electrolux/AYP 101194M

TINE.LH.CRT
(Superseded to 532101194)

$24.99

$

In Stock, only 3 left!

0

5

Electrolux/AYP 4929H

RIVET.PAN HD.1.75
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 163552

RETAINER SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 101193M

TINE RH CRT
(Superseded to 532101193)

$24.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 74610616

BOLT
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0
