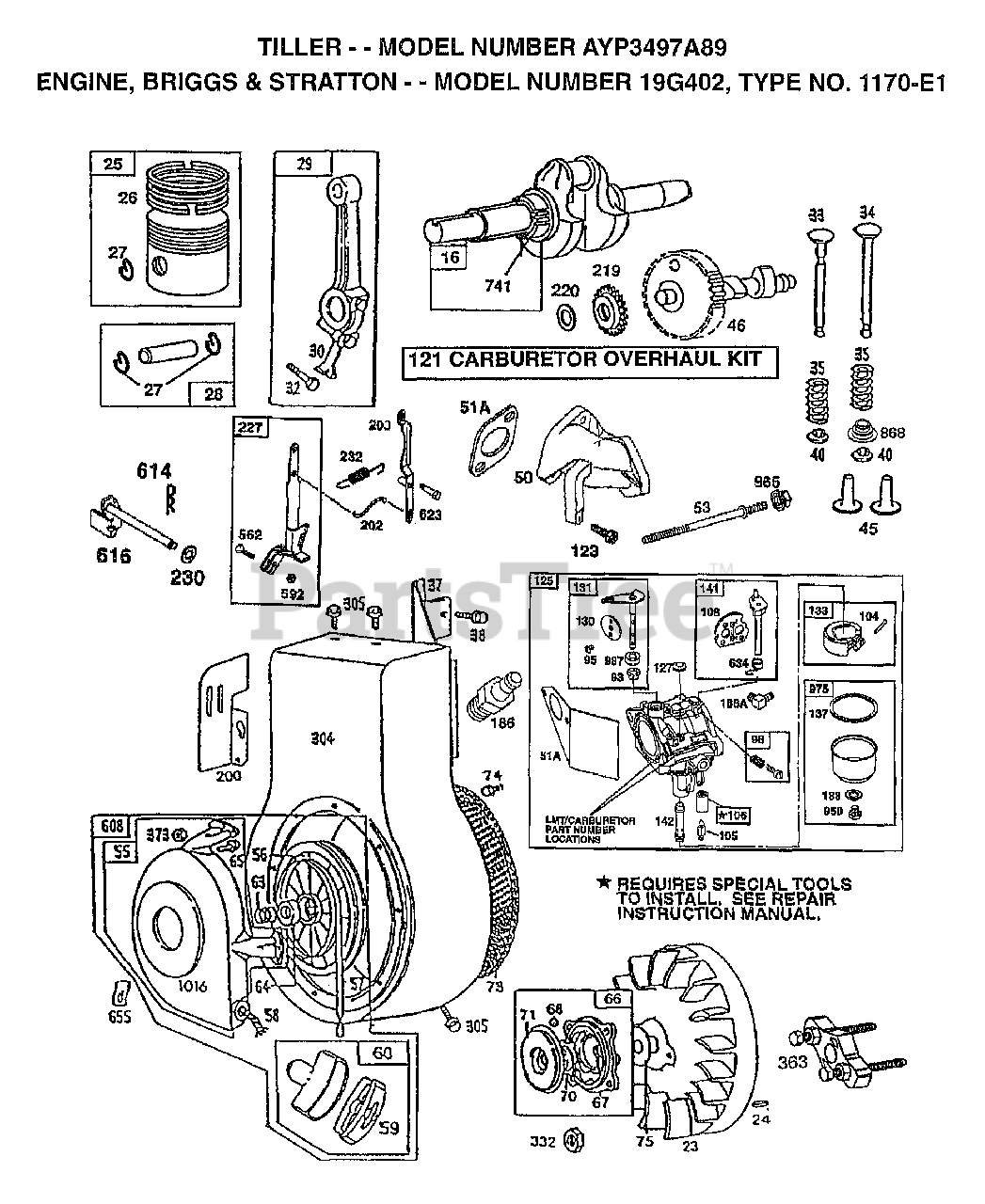

ENGINE, BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 495631

CYLINDER ASSEMBLY

$

$

Not available

2

Briggs & Stratton 495657

BUSHING, CYLINDER
(Superseded to 698340)

$22.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214347

HEAD, CYLINDER
(Superseded to 691159)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272163

GASKET, CYLINDER HEAD
(Superseded to 272163S)

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 498038

BREATHER ASSEMBLY

$60.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280819

TUBE, BREATHER
(Superseded to 691907)

$24.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 271701

GASKET, CRANKCASE COVER 1/64"
(Superseded to 692221)

$8.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 27876

GASKET,CRANKCASE COVER .005"

$

$

Not available

12

Briggs & Stratton 27877

GASKET, CRANKCASE COVER .009"

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 94565

SCREW, CYLINDER HEAD
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

13A

Briggs & Stratton 94926

STUD, HEX DRIVE
(Superseded to 691690)

$

$

Not available

14

Briggs & Stratton 93723

SCREW, CYLINDER HEAD 3"
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 94880

PLUG, OIL DRAIN, FLUSH
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 495648

CRANKSHAFT

$217.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

18

Briggs & Stratton 496982

COVER ASSEMBLY, CRANKCASE

$100.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295964

BUSHING, CRANKCASE

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 281658

PLUG-OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

SCREW, HEX HEAD
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 298260

FLYWHEEL, MAGNETO

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499907

PISTON ASSEMBLY STANDARD

$

$

Not available

25

Briggs & Stratton 499908

PISTON ASSEMBLY

$

$

Not available

25

Briggs & Stratton 499909

PISTON ASSEMBLY

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499910

PISTON ASSEMBLY

$

$

Not available

26

Briggs & Stratton 499921

RING SET, PISTON STANDARD

$47.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690018

SPRING, GOVERNOR

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 690019

SPRING, GOVERNED IDLE

$59.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 690020

RING SET, PISTON

$

$

Not available

27

Briggs & Stratton 263181

LOCK, PISTON PIN
(Superseded to 690975)

$3.99

$

In Stock, Qty 11

0

28

Briggs & Stratton 499911

PIN ASSEMBLY, PISTON STANDARD
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Electrolux/AYP 499920

PIN ASSEMBLY, PISTON

$

$

Not available

29

Briggs & Stratton 390401

ROD ASSEMBLY, CONNECTING

$

$

Not available

29

Briggs & Stratton 390773

ROD ASSEROD ASSEMBLY, CONNECTING

$103.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 222113

DIPPER, CONNECTING ROD
(Superseded to 691728)

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92659

SCREW, CONNECTING ROD
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 263017

VALVE, EXHAUST
(Superseded to 691287)

$

$

Not available

34

Briggs & Stratton 261055

VALVE, INTAKE
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 222475

GUARD, FLYWHEEL
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 94811

SCREW, HEX HEAD
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

45

Briggs & Stratton 260933

TAPPET, VALVE
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 214786

GEAR, CAM

$

$

Not available

50

Briggs & Stratton 214170

ELBOW, INTAKE
(Superseded to 691157)

$

$

Not available

51

Briggs & Stratton 272708

GASKET, CARBURETOR MOUNTING
(Superseded to 691886)

$

$

Not available

51A

Briggs & Stratton 272707

GASKET, INTAKE MANIFOLD
(Superseded to 691885)

$4.99

$

In Stock, Qty 5

0

53

Briggs & Stratton 94778

STUD, CARB. MOUNTING
(Superseded to 691672)

$

$

Not available

55

Briggs & Stratton 393576

HOUSING, REWIND STARTER

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

PULLEY, REWIND STARTER

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

SPRING, REWIND STARTER

$

$

Not available

58

Briggs & Stratton 66884

ROPE, REWIND STARTER
(Superseded to 692188)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 490653

INSERT, STARTER HANDLE
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

HANDLE, REWIND STARTER

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

SPRING, RATCHET
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 281204

ADAPTER, RATCHET SPRING
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

CLUTCH ASSEMBLY, REWIND STARTER

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

HOUSING, STARTER CLUTCH

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

BALL, CLUTCH
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

RATCHET, REWIND STARTER
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

WASHER, CLUTCH RETAINER
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 224874

SCREEN, REWIND STARTER
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 94680

SCREW, CYLINDER SHIELD
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 225136

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

75A

Briggs & Stratton 495659

WASHER, SET

$2.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 281346

BUSHING, THROTTLE SHAFT
(Superseded to 690602)

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 496589

VALVE, IDLE ADJUSTMENT

$12.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 495800

SCREW, IDLE SPEED

$10.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 493280

SCREW ASSY SPEED ADJ

$8.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

PIN, FLOAT HINGE
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231935

VALVE, NEEDLE
(Superseded to 691782)

$18.99

$

In Stock, Qty 8

0

106

Briggs & Stratton 231856

SEAT, INLET
(Superseded to 691780)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 224666

VALVE, CHOKE
(Superseded to 690467)

$5.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-RING, FUELVALVE
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

121

Briggs & Stratton 497581

CARBURETOR OVERHAUL KIT

$

$

Not available

123

Briggs & Stratton 94913

SCREW, TORX HEX
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Electrolux/AYP 690011

CARBURETOR

$

$

Not available

130

Briggs & Stratton 224539

VALVE, THROTTLE
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Electrolux/AYP 498846

SHAFT, THROTTLE

$

$

Not available

133

Briggs & Stratton 494381

FLOAT, CARBURETOR

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

GASKET, FLOAT BOWL
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

WASHER, FLOAT BOWL SCREW
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 497160

SHAST, CHOKE

$15.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 690125

NOZZLE, CARBURETOR

$

$

Not available

142

Briggs & Stratton 690126

NOZZLE, CARBURETOR

$30.99

$

In Stock, only 1 left!

0

161

Briggs & Stratton 497669

BASE, AIR CLEANER
(Superseded to 498544)

$152.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 273101

GASKET, AIR CLEANER
(Superseded to 692277)

$6.99

$

In Stock, Qty 5

0

165

Briggs & Stratton 94692

NUTWING
(Superseded to 690355)

$3.49

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 230318

CONNECTOR, IMPULSE PUMP
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

186A

Briggs & Stratton 493496

ELBOW, FUEL PIPE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 296004

PIPE, FUEL
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 497029

LINE, FUEL

$16.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

SCREW, SEMS 3/4"
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

200

Briggs & Stratton 221760

GUIDE, AIR
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 263051

LINK, GOVERNOR
(Superseded to 691854)

$12.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 263049

LINK, THROTTLE
(Superseded to 691853)

$9.49

$

In Stock, only 1 left!

0

203

Briggs & Stratton 497207

LEVER, LINKAGE
(Superseded to 691415)

$12.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 263212

SPRING, GOVERNOR
(Superseded to 692136)

$10.99

$

In Stock, only 1 left!

0

210

Briggs & Stratton 492044

STRAINER, FUEL
(Superseded to 691370)

$8.99

$

In Stock, only 1 left!

0

211

Briggs & Stratton 263182

SPRING, GOVERNED IDLE
(Superseded to 691307)

$21.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 497037

GEAR GOVERNOR
(Superseded to 496786)

$32.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 221551

WASHER THRUST
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 499103

PLATE, GOVERNOR CONTROL
(Superseded to 691478)

$48.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 499096

LEVER ASSEMBLY, GOVERNOR

$

$

Not available

230

Briggs & Stratton 94927

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 263020

SPRING, LINK
(Superseded to 691848)

$11.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94929

SCREW, SELF-TAPPING
(Superseded to 691693)

$3.99

$

In Stock, Qty 12

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

298

Briggs & Stratton 261409

LOCKNUT, MUFFLER
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

300

Briggs & Stratton 496127

MUFFLER, EXHAUST
(Superseded to 692025)

$41.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 491596

HOUSING, BLOWER

$

$

Not available

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 13

0

306

Briggs & Stratton 496797

SHIELD, CYLINDER

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 225055

COVER, CYLINDER HEAD
(Superseded to 691212)

$12.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 398811

ARMATURE, MAGNETO

$63.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 496018

SPARK PLUG
(Superseded to 496018S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 94896

SCREW, SEMS
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

353

Briggs & Stratton 92791

WASHERLOCK
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 94726

NUT, HEX
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

354A

Briggs & Stratton 90576

NUT, HEX
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398838

WIRE, GROUND

$7.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 496868

WIRE, GROUND
(Superseded to 691408)

$12.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 497070

GASKET SET

$55.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 94908

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

385

Briggs & Stratton 94789

SCREW, FUEL PUMP MOUNTING
(Superseded to 691673)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496257

PUMP, FUEL
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

445

Briggs & Stratton 496077

CARTRIDGE, AIR CLEANER
(Superseded to 691643)

$17.99

$

In Stock, Qty 7

0

467

Briggs & Stratton 280715

KNOB, CONTROL
(Superseded to 692295)

$9.49

$

In Stock, only 4 left!

0

520

Briggs & Stratton 93722

TERMINAL, SPADE
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

552

Briggs & Stratton 491893

BUSHING, GOVERNOR CRANK

$107.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 94907

BOLT, GOVENOR LEVEL
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231978

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 95162

CLAMP, FUEL LINE
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 390391

STARTER ASSEMBLY, REWIND
(Superseded to 693900)

$131.99

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 496818

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

623

Briggs & Stratton 231520

SCREW, SHOULDER
(Superseded to 691776)

$

$

Not available

634

Briggs & Stratton 494455

SEAL, SPRING ASSY.
(Superseded to 690802)

$9.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

642

Briggs & Stratton 281357

COVER, AIR CLEANER
(Superseded to 691925)

$

$

Not available

655

Briggs & Stratton 222598

ANCHOR, SPRING
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

657

Briggs & Stratton 94906

SCREW
(Superseded to 690804)

$

$

Not available

676

Briggs & Stratton 393757

DEFLECTOR, EXHAUST, SIDE OUTLET
(Superseded to 796956)

$10.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 263025

GEAR, TIMING
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 280643

SLEEVE, LEVER
(Superseded to 691322)

$2.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 497656

SEAL, INTAKE VALVE
(Superseded to 692324)

$

$

Not available

869

Briggs & Stratton 211661

SEAT, INTAKE AND EXHAUST VALVES
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

GUIDE, INTAKE VALVE

$14.99

$

In Stock, Qty 7

0

918

Briggs & Stratton 497457

LINE, VACUUM

$9.49

$

In Stock, Qty 7

0

950

Briggs & Stratton 94642

SCREW, FUEL BOWL
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

956

Briggs & Stratton 493337

FUEL TANK ASSEMBLY
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0

957

Briggs & Stratton 493988

CAP, FUEL TANK
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

VALVE ASSEMBLY, FUEL SHUT-OFF
(Superseded to 698182)

$

$

Not available

959

Briggs & Stratton 495664

BRACKET, FUEL TANK, UPPER

$

$

Not available

960

Briggs & Stratton 492990

BRACKET, FUEL TANK LOWER
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 94095

SCREW, TANK MOUNTING
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 94010

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

969

Briggs & Stratton 94777

SCREW, SLOTTED HEX
(Superseded to 691671)

$5.99

$

In Stock, Qty 9

0

975

Briggs & Stratton 494378

BOWL ASSEMBLY, CARBURETOR
(Superseded to 495933)

$

$

Not available

985

Briggs & Stratton 398525

INSULATOR ASSEMBLY
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

987

Briggs & Stratton 281166

SEAL, THROTTLE SHAFT
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

SPACER

$9.49

$

In Stock, Qty 5

0

1036

Briggs & Stratton 499354

LABEL KIT, EMISSION

$4.49

$

In Stock, only 1 left!

0

1058

Briggs & Stratton 273682

OWNER'S MANUAL

$

$

Not available

2500

Electrolux/AYP 192402-1015

REPLACEMENT ENGINE

$

$

Not available

Electrolux/AYP 497536

REPLACEMENT SHORTBLOCK

$

$

Not available

Briggs & Stratton 497578

CARBURETOR KIT

$

$

Not available

Briggs & Stratton 497069

CARBURETOR GASKET SET
(Superseded to 497849)

$

$

Not available

Briggs & Stratton 497534

VALVE OVERHAUL GASKET SET
(Superseded to 498544)

$152.99

$

Usually ships in 2-12 days

0
