348 (190-348-100) - Cub Cadet 38" & 46" Mower Dethatcher att 38" & 46" Mower Thatcher Parts Diagram

38" & 46" Mower Dethatcher

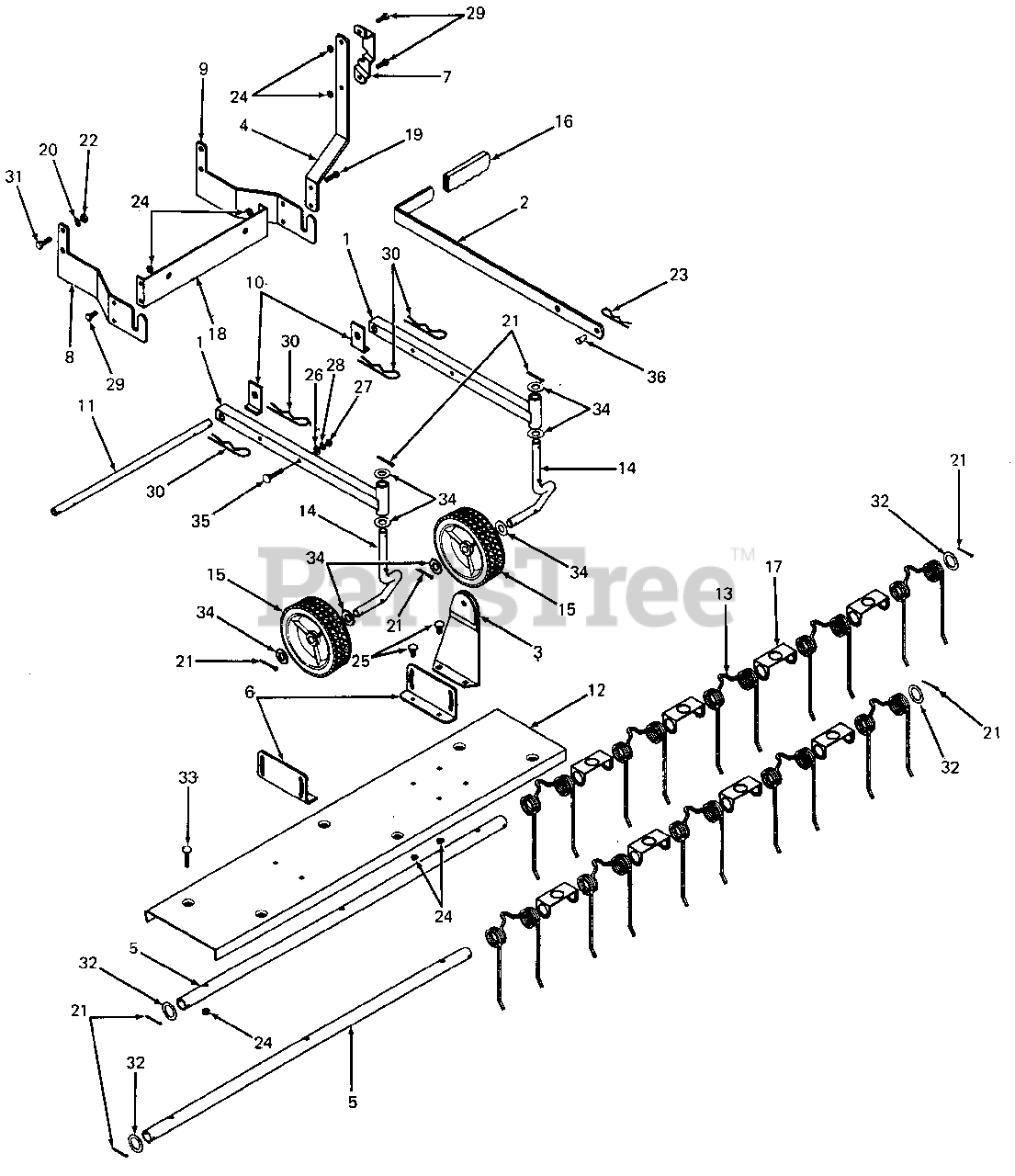

38" & 46" Mower Thatcher Parts Diagram

  • Title

1

Cub Cadet AF-62599

Arm Assy, Mounting

$

$

Not available

2

Cub Cadet AF-62600

Handle Assy, Lift

$

$

Not available

3

Cub Cadet AF-62601

Bracket Assy, Lift Handle

$

$

Not available

4

Cub Cadet AF-23674

Arm, Lift Handle

$

$

Not available

5

Cub Cadet AF-23665

Tube, Spring Mounting

$

$

Not available

6

Cub Cadet AF-23666

Bracket, Angle Mounting

$

$

Not available

7

Cub Cadet AF-23673

Bracket, Handle Lock

$

$

Not available

8

Cub Cadet AF-23694

Bracket, Hitch RH

$

$

Not available

9

Cub Cadet AF-23693

Bracket, Hitch LH

$

$

Not available

10

Cub Cadet AF-23676

Keeper, Plate

$

$

Not available

11

Cub Cadet AF-23677

Shaft, Mounting

$

$

Currently unavailable

12

Cub Cadet AF-23678

Shield, Spring Mounting

$

$

Not available

13

Cub Cadet AF-43783

Spring, De-Thatcher

$

$

Not available

14

Cub Cadet AF-44148

Axle

$

$

Not available

15

Cub Cadet AF-44213

Wheel - Cream

$

$

Not available

16

Cub Cadet AF-43943

Grip, Lift Handle

$

$

Not available

17

Cub Cadet AF-44207

Bracket, Spring

$

$

Not available

18

Cub Cadet AF-23688

Bracket, Weight Mount

$

$

Not available

19

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0144

Pin, Cotter, 1/8 Dia X 1.25 Lg

$

$

Not available

22

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR 5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet AF-43055

Hairpin Cotter, 3/32
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

25

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0264

Washer, Flat, .344 X .62 X .063

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet AF-43343

Hairpin Cotter, 1/8

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet AF-43601

Washer, Flat, 1.06 ID X 1.6 OD X 16 Ga

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 X 1.5 Lg

$3.99

$

In Stock, Qty 11

0

34

Cub Cadet IH-AF-R19212016

Washer, Pivot, 21/32

$

$

Currently unavailable

35

Cub Cadet 710-0458

Bolt, Carriage, 5/16-18 X 1.75 Lg

$4.49

$

In Stock, only 4 left!

0

36

Cub Cadet AF-44044

Pin, Clevis, 3/8 Dia X .75 Lg

$1.49

$

Usually ships in 3-6 days

0
