347 (190D347-100) - Cub Cadet 46" Mower Deck for GMT Mower Frame Assembly Parts Diagram

46" Mower Deck for GMT

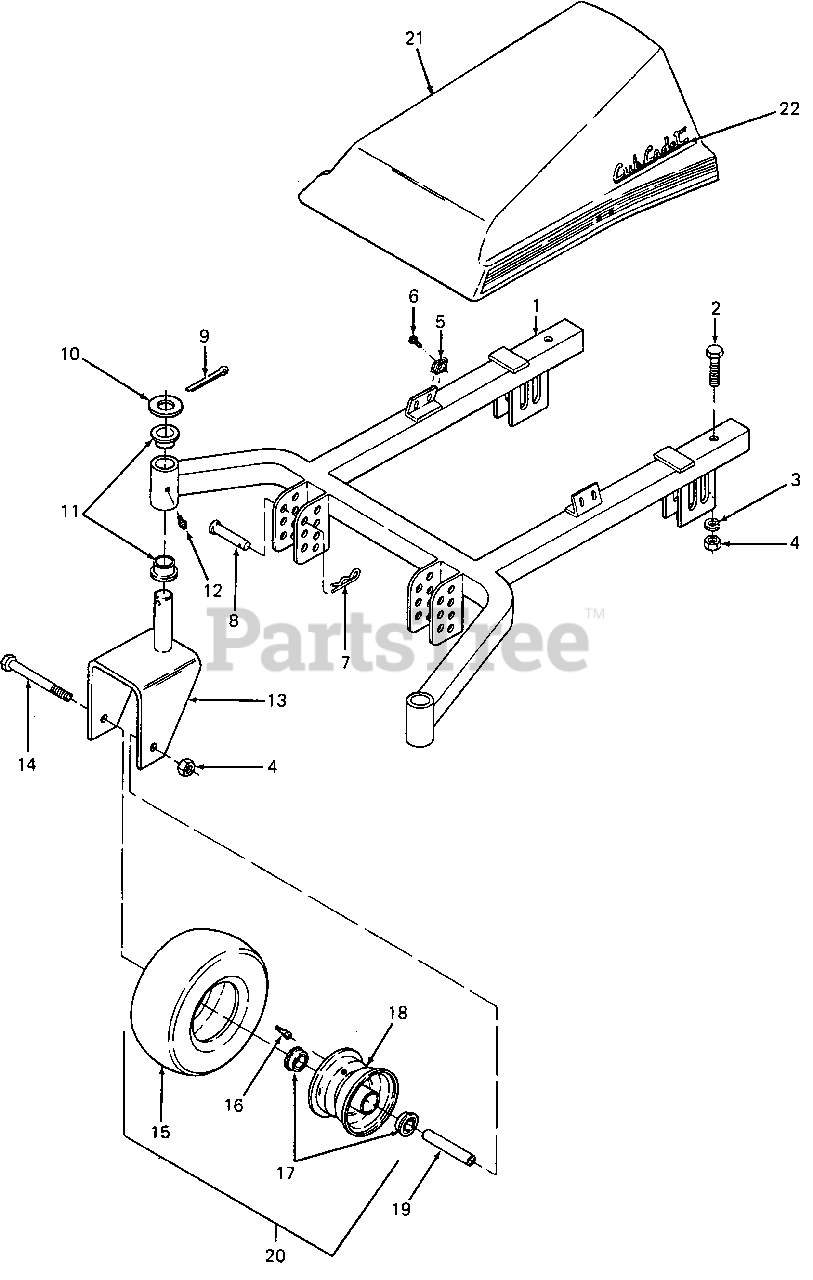

Mower Frame Assembly Parts Diagram

  • Title

1

Cub Cadet TE-1000305

Frame, Mower

$

$

Not available

2

Cub Cadet 710-0489

Screw, Hex Cap, 1/2-13 X 2.0 Lg

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet TE-1000518

Nut, Speed

$

$

Not available

6

Cub Cadet 710-0255

Screw, Truss Mach, 1/4-20 X .75 Lg
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet TE-1000310

Cotter, Hairpin, 1/8

$

$

Not available

8

Cub Cadet 711-0761

Pin, Clevis, 1/2 Dia X 2.5 Lg

$19.99

$

In Stock, only 4 left!

0

9

Cub Cadet TE-103422

Pin, Cotter, 1/4 Dia X 2.0 Lg

$

$

Currently unavailable

10

Cub Cadet TE-131019

Washer, Flat, 1" Narrow

$

$

Not available

11

Cub Cadet TE-1000308

Bushing, Caster Fork

$

$

Not available

12

Cub Cadet TE-1000340

Fitting, Grease, 1/4-28 Str. Short

$

$

Not available

13

Cub Cadet TE-1000179

Fork, Caster

$

$

Not available

14

Cub Cadet 710-0382

Screw, Hex Cap, 1/2-13 X 5.0 Lg

$12.99

$

In Stock, only 2 left!

0

15

Cub Cadet TE-1000673

Tire, Smooth, 3.5-9 X 4

$

$

Not available

16

Cub Cadet TE-1000674

Stem, Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet TE-1000676

Bearing

$

$

Currently unavailable

18

Cub Cadet TE-1000675

Wheel Assy w/Graphic

$

$

Not available

19

Cub Cadet TE-1000187

Spacer, Caster Wheel

$

$

Currently unavailable

20

Cub Cadet TE-1000336

Wheel Assy, Caster

Note: (Includes Ref No. 15 thru 18)

$

$

Not available

21

Cub Cadet TE-1000301

Cover, Mower

$

$

Not available

22

Cub Cadet 731-3053A

Script, CCC
(Superseded to 931-3053A)

$24.99

$

In Stock, only 2 left!

0
