347 (190D347-100) - Cub Cadet 46" Mower Deck for GMT Deck Plate Assembly, Spindles & Blades Parts Diagram

46" Mower Deck for GMT

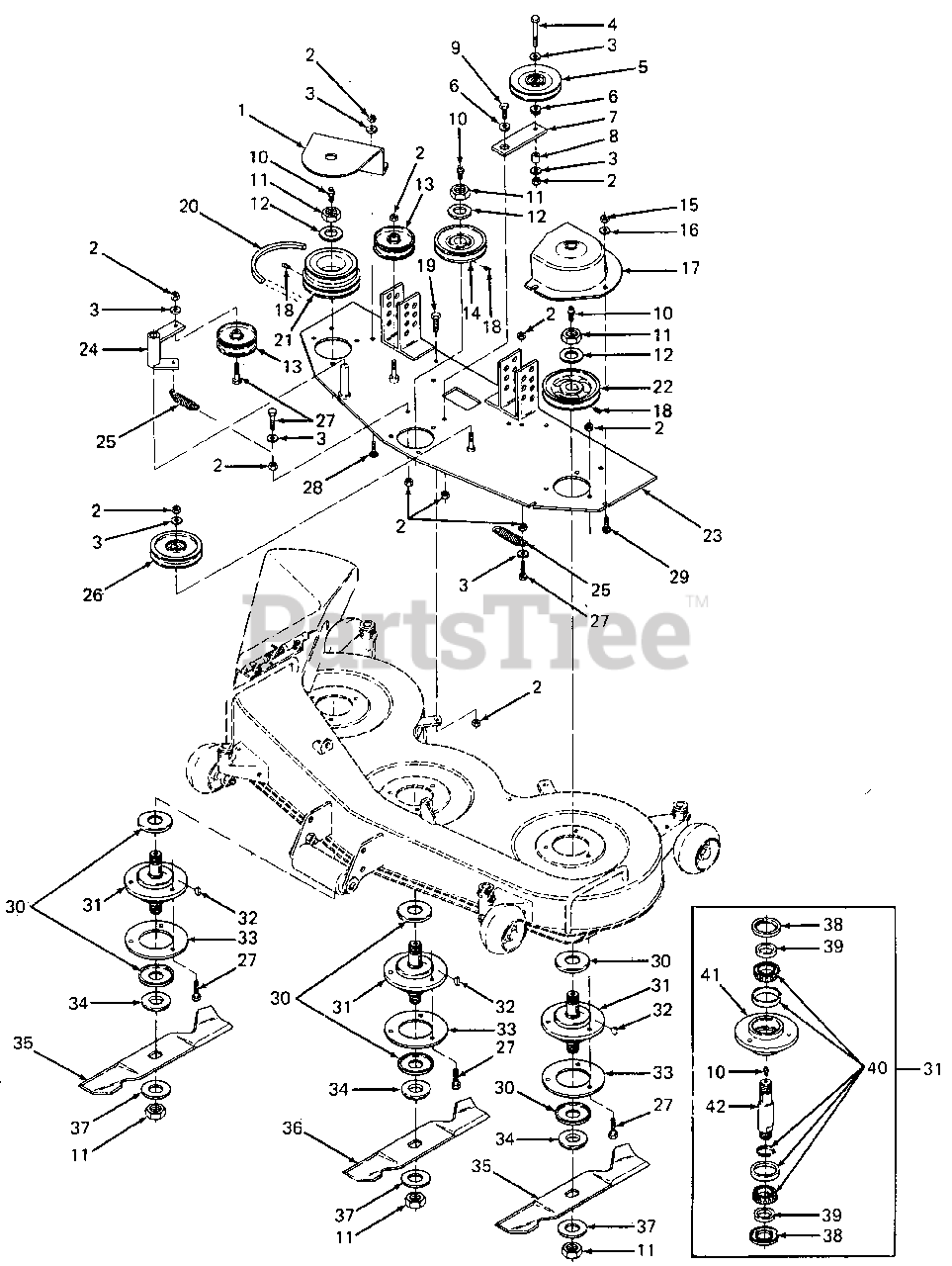

Deck Plate Assembly, Spindles & Blades Parts Diagram

  • Title

1

Cub Cadet TE-1000479

Guard, Belt, RH

$

$

Not available

2

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 736-0262

Washer, Flat, .385 X .870 X .090 Thk

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 X 2.75 Lg

$5.49

$

In Stock, Qty 7

0

5

Cub Cadet TE-1000312

Pulley, Idler

$

$

Not available

6

Cub Cadet TE-1000465

Spacer, Flanged

$

$

Currently unavailable

7

Cub Cadet TE-1000406

Arm, Idler

$

$

Not available

8

Cub Cadet TE-1000424

Spacer

$

$

Currently unavailable

9

Cub Cadet 710-3095

Screw, Hex Cap, 3/8-16 X 7/8 Lg GR8

$

$

Currently unavailable

10

Cub Cadet TE-1000340

Fitting, Grease

$

$

Not available

11

Cub Cadet TE-426899

Nut, Hex Jam, 1/8

$

$

Not available

12

Cub Cadet TE-131019

Washer, Flat, 1 Narrow

$

$

Not available

13

Cub Cadet TE-1000165

Pulley, Idler

$

$

Not available

14

Cub Cadet TE-1000517

Pulley, Spindle, Center

$

$

Not available

15

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

16

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .063 Thk

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet TE-1000478

Guard, Belt, LH
(Superseded to 703-1651A-4021)

$

$

Not available

18

Cub Cadet 710-3006

Setscrew, 5/16-18 X 3/8 Cup/Knurl

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1 Lg GR5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet TE-1000472

Belt, Deck

$

$

Not available

21

Cub Cadet TE-1000468

Pulley, Double Groove

$

$

Not available

22

Cub Cadet TE-1000469

Pulley, Deck

$

$

Not available

23

Cub Cadet TE-1000569

Plate, Deck

$

$

Currently unavailable

24

Cub Cadet TE-1000477

Idler Arm

$

$

Not available

25

Cub Cadet TE-1000298

Spring, Idler Extension

$

$

Not available

26

Cub Cadet TE-1000311

Pulley, Idler

$

$

Not available

27

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1-1/2 Lg GR5

$4.49

$

In Stock, Qty 7

0

28

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1 Lg

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X 3/4 Lg

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet TE-1000394

Shield, Bearing
(Superseded to 703-2184)

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet TE-1000399

Spindle Assy

$

$

Not available

32

Cub Cadet TE-1000536

Key, Woodruff, Hi-Pro
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 6

0

33

Cub Cadet TE-1000335

Ring, Spindle Reinforcement

$

$

Currently unavailable

34

Cub Cadet TE-1000393

Ring, Blade Support

$

$

Currently unavailable

35

Cub Cadet 759-3499

Blade, Mower, 16.28 Lg

$

$

Not available

Cub Cadet 759-3500

Blade, Mower, Hard Coated, 16.28 Lg
(Superseded to 759-3499)

$

$

Not available

36

Cub Cadet 759-3501

Blade, Mower, 14.88 Lg

$

$

Not available

Cub Cadet 759-3502

Blade, Mower, Hard Coated, 14.88 Lg

$

$

Not available

37

Cub Cadet TE-131002

Washer, Flat, 1 Wide Zinc

$

$

Currently unavailable

38

Cub Cadet TE-1000397

Seal, Lip

$

$

Currently unavailable

39

Cub Cadet TE-1000392

Ring, Seal

$

$

Currently unavailable

40

Cub Cadet TE-1000398

Bearing Assy, Tapered

$

$

Not available

41

Cub Cadet TE-1000395

Housing, Spindle

$

$

Currently unavailable

42

Cub Cadet TE-1000391

Shaft, Spindle

$

$

Not available
