347 (190D347-100) - Cub Cadet 46" Mower Deck for GMT att Deck Assembly Parts Diagram

46" Mower Deck for GMT

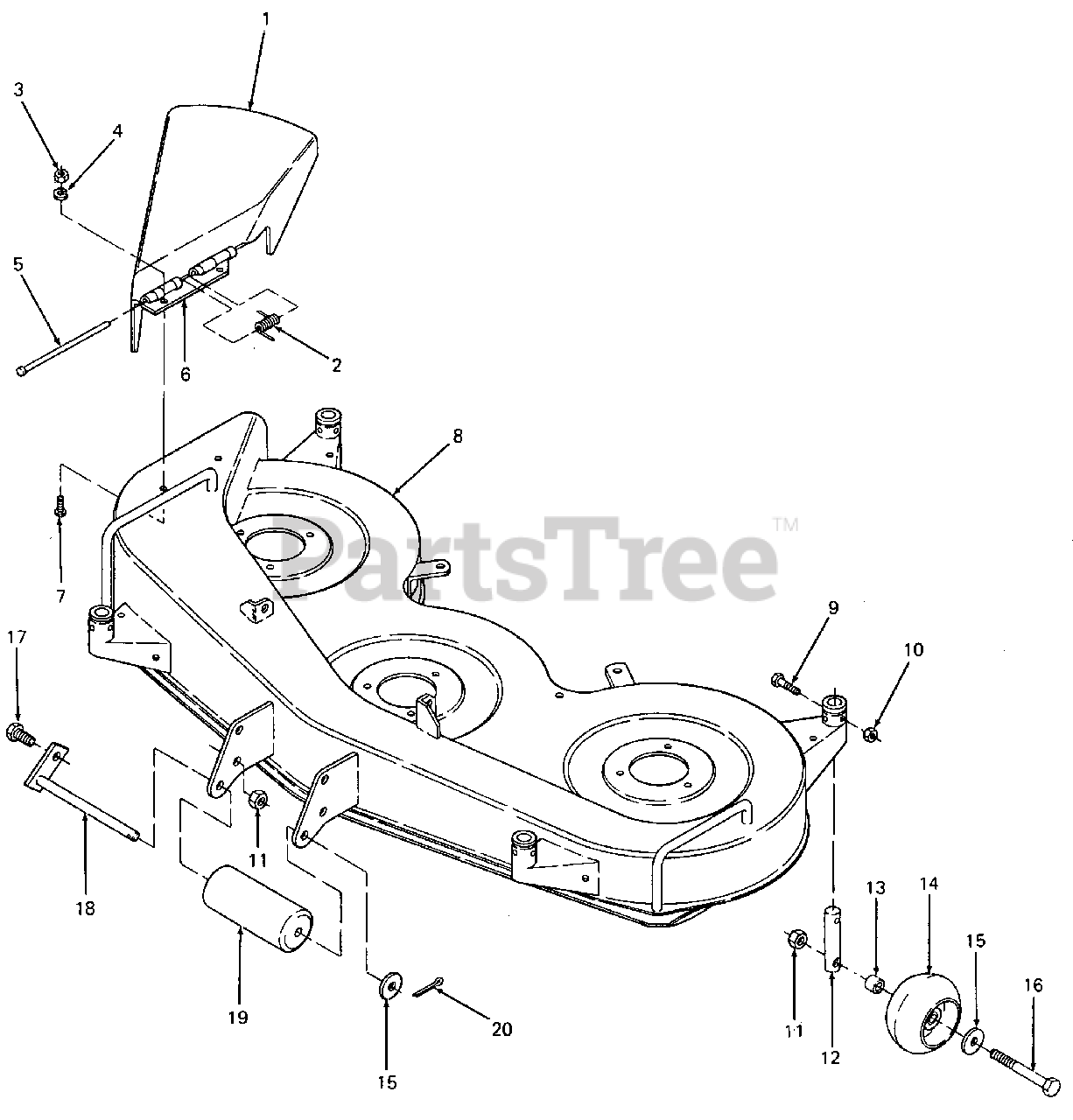

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet TE-1000565

Chute, Discharge w/Graphic
(Superseded to 759-3492P)

$

$

Not available

2

Cub Cadet 732-0542

Spring, Torsion, .29 ID X 1.14 Lg
(Superseded to 932-0542)

$

$

Not available

3

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

Cub Cadet 711-0792

Pin, Hinge, .25 Dia X 6.75 Lg
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet TE-1000321

Hinge, Discharge Chute

$

$

Currently unavailable

7

Cub Cadet 710-0255

Screw, Truss Mach, 1/4-20 X .75 Lg
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet TE-1000560

Deck Assy w/Graphics

$

$

Currently unavailable

9

Cub Cadet 710-0442

Screw, Hex Cap, 5/16-18 X 1.5 Lg
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

11

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

12

Cub Cadet TE-1000470

Pin, Gage Wheel

$

$

Not available

13

Cub Cadet TE-1000523

Spacer, Gage Wheel

$

$

Not available

14

Cub Cadet 734-3058

Wheel, Ball, 5" Dia
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0179

Washer, Flat, .531 X 1.25 X .100 Thk

$4.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0382

Screw, Hex Cap, 1/2-13 X 5.0 Lg

$12.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-0865

Screw, Hex Cap, 1/2-13 X 1.0 Lg GR5

$

$

Not available

18

Cub Cadet TE-1000441

Pin, Roller

$

$

Not available

19

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0
