34686 (8122) - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

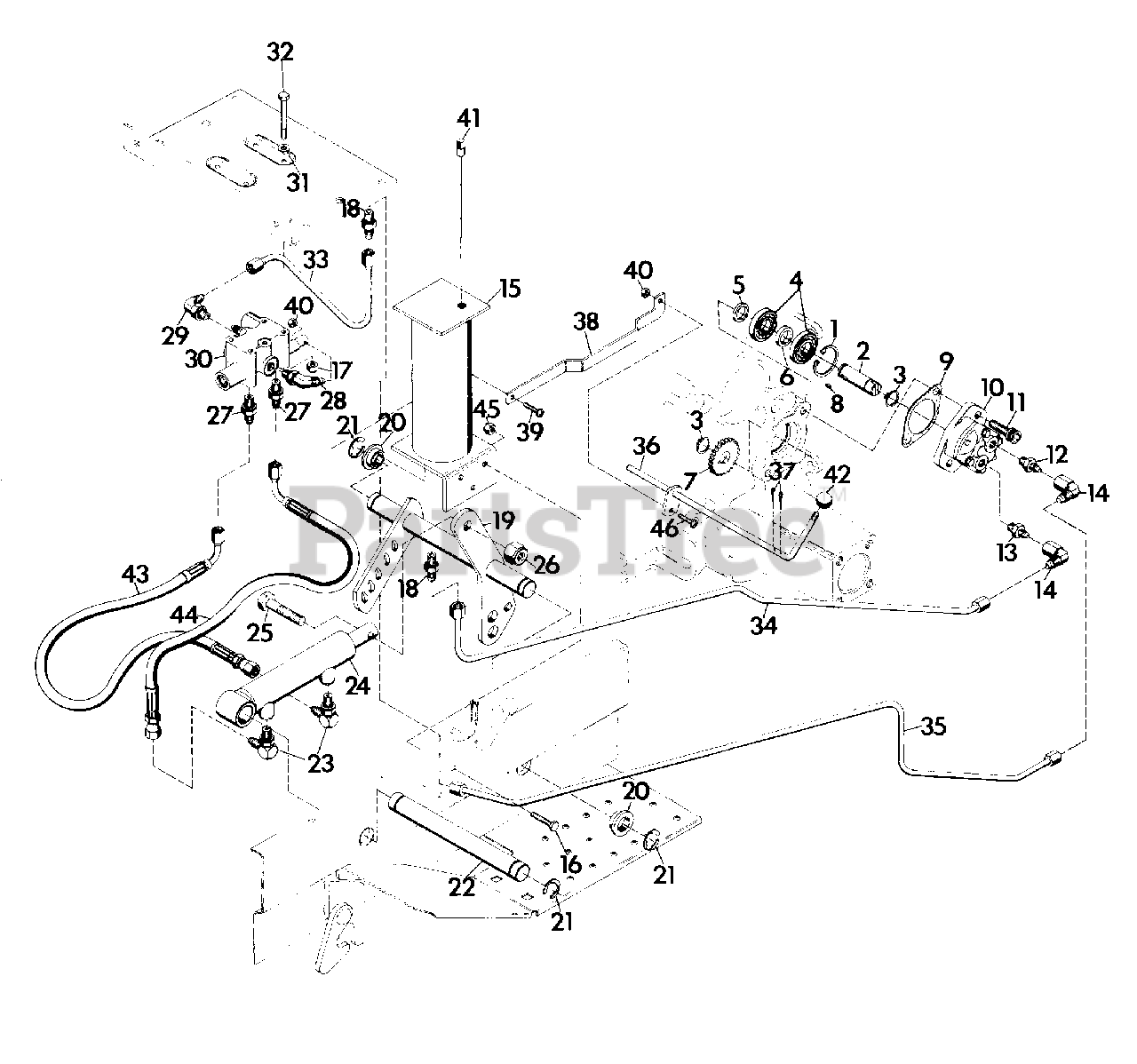

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 018799

RING, RETAINING 1.378 BORE
(Superseded to 05705500)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 018797

SHAFT, HYDRAULIC PUMP
(Superseded to 08787300)

$249.99

$

Usually ships in 4-12 days

0

3

Gravely 018809

RING, RETAINING .594 SHAFT
(Superseded to 05712800)

$

$

Not available

4

Gravely 012626

BEARING, BALL .590X1.378X.433
(Superseded to 05429000)

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 018807

SPACER, .620X.750X.276
(Superseded to 08730600)

$

$

Not available

6

Gravely 018798

SPACER, .620X.750X.364
(Superseded to 08729000)

$

$

Not available

7

Gravely 018808

GEAR, HYDRAULIC PUMP
(Superseded to 08708500)

$

$

Not available

8

Gravely 271089

KEY, WOODRUFF .125X.375 HARD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 018422

GASKET, COVER PLATE
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

10

Gravely 018813

PUMP, HYDRAULIC
(Superseded to 08900900)

$

$

Not available

11

Gravely 426370

SCREW, CAP 3/8-16 HEX SOCKET HD
(Superseded to 05933300)

$

$

Not available

12

Gravely 023206

ADAPTOR
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 018817

ADAPTOR(P-H #0503-10-6)
(Superseded to 21121800)

Note: (P-H #0503-10-6)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 018818

ADAPTOR(P-H #3903-6-6)
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 022460

WELDMENT, HYDRAULIC TANK
(Superseded to 21361000)

$

$

Not available

16

Gravely 180122

BOLT, HEX 3/8-16X1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 019167

ADAPTOR(P-H #0503-6-6)
(Superseded to 07017500)

Note: (P-H #0503-6-6)

$11.99

$

In Stock, only 2 left!

0

19

Gravely 018822

WELDMENT, LIFT LEVER SHAFT
(Superseded to 08708700)

$256.99

$

Usually ships in 4-12 days

0

20

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

21

Gravely 011112

E-RING, 1.000 SHAFT
(Superseded to 05716000)

$3.99

$

In Stock, only 3 left!

0

22

Gravely 018830

SHAFT, HYDRAULIC CYLINDER
(Superseded to 08708900)

$

$

Not available

23

Gravely 018826

ADAPTOR(P-H #2503-4-4)
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 031284

CYLINDER, HYDRAULIC
(Superseded to 08727500)

$

$

Not available

25

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$

$

Not available

26

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 021286

ADAPTOR(P-H #0503-4-4)
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 018829

ADAPTOR(P-H #3503-6-6)
(Superseded to 08901200)

Note: (P-H #3503-6-6)

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 018828

ADAPTOR(P-H #2503-6-6)
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 018825

VALVE, HYDRAULIC
(Superseded to 08901100)

$

$

Not available

31

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 180050

BOLT, HEX 1/4-20X2-3/4
(Superseded to 05969900)

$

$

Not available

33

Gravely 019165

LINE, RETURN VALVE TO TANK
(Superseded to 20274600)

$

$

Not available

34

Gravely 034815

LINE, HYD.(IN) TANK TO PUMP CONS.
(Superseded to 20611300)

Note: (IN) TANK TO PUMP CONS.

$

$

Not available

34

Gravely 034817

LINE, HYD.(IN) TANK TO PUMP PROF.
(Superseded to 20611500)

Note: (IN) TANK TO PUMP PROF.

$

$

Not available

35

Gravely 034816

LINE, HYD.(OUT) VALVE TO PUMP CONS.
(Superseded to 20611400)

Note: (OUT) VALVE TO PUMP CONS.

$

$

Not available

35

Gravely 034818

LINE, HYD.(OUT) VALVE TO PUMP PROF.
(Superseded to 20611600)

Note: (OUT) VALVE TO PUMP PROF.

$

$

Not available

36

Gravely 018833

ROD, WELDMENT HYD. VALVE
(Superseded to 20267800)

$

$

Not available

37

Gravely 121222

PIN, COTTER .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

38

Gravely 018836

ROD, HYDRAULIC CONTROL
(Superseded to 20268000)

$

$

Not available

38

Gravely 031303

ROD, HYDRAULIC CONTROL PROF.
(Superseded to 20551100)

$

$

Not available

39

Gravely 132848

SCREW, MACHINE 10-24X1 RD HD
(Superseded to 06112700)

$

$

Not available

40

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 022457

GAUGE, HYDRAULIC TANK LEVEL
(Superseded to 08801900)

$

$

Not available

42

Gravely 011261

KNOB, ADJ. CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

43

Gravely 039337

HOSE, HYDRAULIC 12.5
(Superseded to 20660400)

$

$

Not available

44

Gravely 039338

HOSE, HYDRAULIC 9.5
(Superseded to 20660500)

$

$

Not available

45

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

46

Gravely 120910

SCREW, MACHINE 10-24X3/4 RD HD
(Superseded to 06112500)

$

$

Not available
