34686 (8122) - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift BRAKE LINKAGE Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

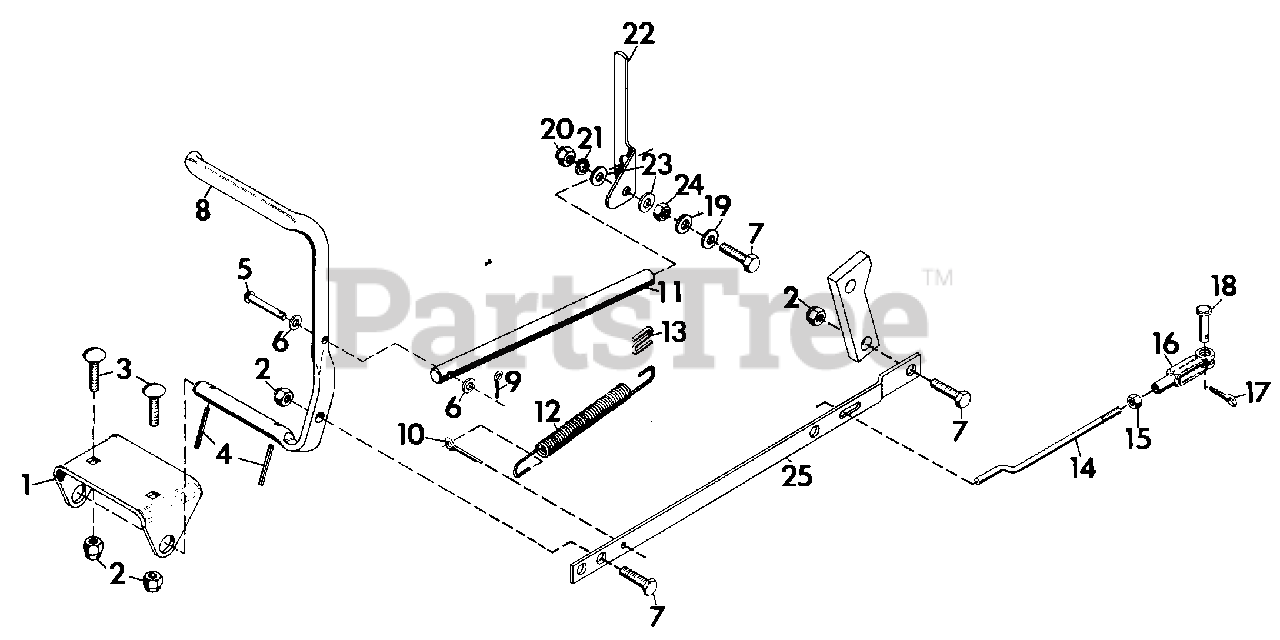

BRAKE LINKAGE Parts Diagram

  • Title
1

Gravely 011021

BRACKET, BRAKE PEDAL
(Superseded to 21336000)

$

$

Not available

2

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 454668

PIN, SPRING .187X1.25
(Superseded to 21072600)

$

$

Not available

5

Gravely 417923

PIN, CLEVIS .25X1.50
(Superseded to 06814600)

$3.99

$

In Stock, Qty 6

0

6

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 011009

PEDAL, BRAKE
(Superseded to 21335700)

$

$

Not available

9

Gravely 121223

PIN, COTTER .06X.75
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

10

Gravely 179128

PIN, COTTER .25X1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 020773

ROD
(Superseded to 21133000)

$72.99

$

Usually ships in 4-12 days

0

12

Gravely 011263

SPRING, EXT. 5.50X.50X20 RATE
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 011329

CLIP, SPRING
(Superseded to 08657900)

$

$

Not available

14

Gravely 021132

LINK, REAR
(Superseded to 21135800)

$

$

Not available

15

Gravely 120367

NUT, HEX 1/4-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 104036

CLEVIS, ADJUSTABLE 1/4-28
(Superseded to 21048500)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 423302

PIN, COTTER .078X.627
(Superseded to 21069000)

$

$

Not available

18

Gravely 138083

PIN, CLEVIS .25X.766
(Superseded to 06812000)

$

$

Not available

19

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 020772

ARM, PARKING BRAKE LOCK
(Superseded to 08859800)

$

$

Not available

23

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

24

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 034726

LINK, FRONT
(Superseded to 21233100)

$

$

Not available
