3468 A99 - Electrolux/AYP Tiller (1999) ENGINE, BRIGGS AND STRATTON Parts Diagram

Tiller

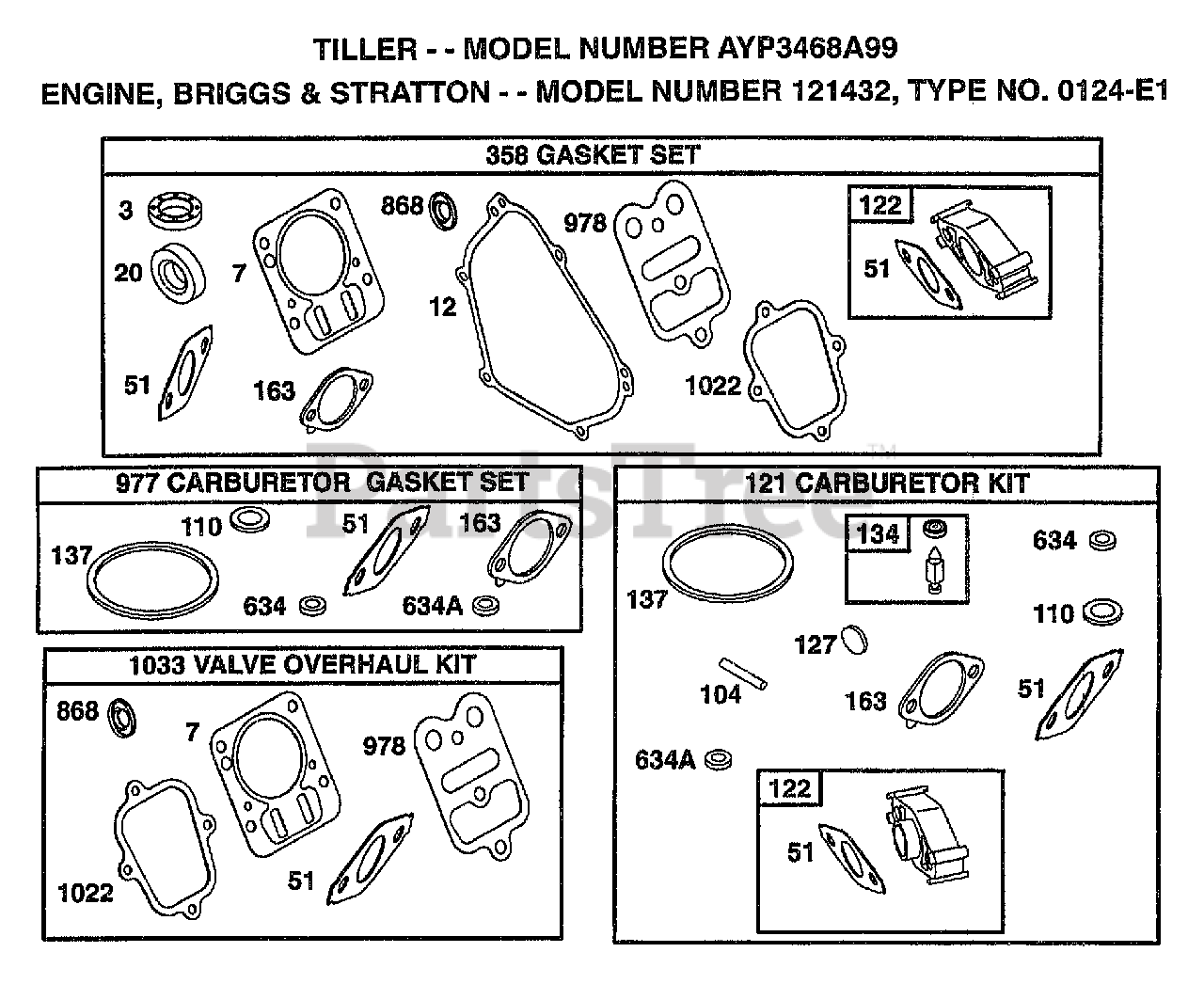

ENGINE, BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 690045

CYLINDER ASS'Y
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

BUSHING ASSY
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 693643

HEAD
(Superseded to 594514)

$

$

Not available

7

Briggs & Stratton 273489

GASKET
(Superseded to 698210)

$8.99

$

In Stock, Qty 16

0

11

Briggs & Stratton 693647

TUBE

$10.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692549

GASKET
(Superseded to 699485)

$8.99

$

In Stock, Qty 16

0

13

Briggs & Stratton 95049

SCREW
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94916

PLUG, PIPE, HEX SOCKET
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 693403

CRANKSHAFT
(Superseded to 797072)

$192.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 498185

BEARING
(Superseded to 798538)

$31.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 693204

COVER
(Superseded to 699804)

$209.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

SEAL

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658

PLUG-OIL FILLER
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

21A

Briggs & Stratton 693463

CAP

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 692551

SCREW

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 692987

FLYWHEEL
(Superseded to 699488)

$185.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

PISTON ASS'Y
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 692788

PISTON ASS'Y

$55.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692789

PISTON ASS'Y
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692790

PISTON ASS'Y

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

RING SET

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692785

RING SET

$

$

Not available

26

Briggs & Stratton 692786

RING SET

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

RING SET

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263190

LOCK, PISTON PIN
(Superseded to 691866)

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

PIN, PISTON, STANDARD SIZE

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

ROD
(Superseded to 798813)

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 225279

DIPPER
(Superseded to 791584)

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 499642

VALVE

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

VALVE
(Superseded to 795443)

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 263149

SPRING
(Superseded to 691304)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 262679

TAPPET, VALVE
(Superseded to 690977)

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 693404

CAMSHAFT

$73.99

$

In Stock, Qty 5

0

51

Briggs & Stratton 692555

GASKET

$3.99

$

In Stock, Qty 7

0

55

Briggs & Stratton 497442

HOUSING, REWIND STARTER
(Superseded to 691422)

$45.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 498144

PULLEY, REWIND STARTER

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 693389

ROPE

$9.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 715257

GRIP
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

65

Briggs & Stratton 692608

SCREW

$3.99

$

Usually ships in 2-12 days

0

65A

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 495659

WASHER, SET

$2.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

SCREW IDLE ADJ

$7.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 493280

SCREW ASSY SPEED ADJ

$8.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 223471

VALVE CHOKE
(Superseded to 691182)

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693628

CHOKE

$28.99

$

Usually ships in 2-12 days

0

110

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

111

Briggs & Stratton 262715

SPRING, CHOKE
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

117

Briggs & Stratton 690048

JET

$

$

Not available

121

Briggs & Stratton 690032

CARBURETOR KIT
(Superseded to 695157)

$18.99

$

In Stock, only 2 left!

0

122

Briggs & Stratton 690043

SPACER
(Superseded to 795643)

$13.99

$

In Stock, Qty 8

0

124

Briggs & Stratton 692568

SCREW

$3.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 693518

CARBURETOR
(Superseded to 591925)

$

$

Not available

127

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

130

Briggs & Stratton 223470

VALVE THROTTLE
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 690024

SHAFT THROTTLE

$27.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

VALVE, INLET

$6.49

$

In Stock, Qty 20+

0

137

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

146

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

155

Briggs & Stratton 225430

PLATE
(Superseded to 696268)

$

$

Not available

161

Briggs & Stratton 693459

BASE

$

$

Not available

163

Briggs & Stratton 272948

GASKET
(Superseded to 272948S)

$6.49

$

In Stock, Qty 6

0

176

Briggs & Stratton 94905

SCREW
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

186

Briggs & Stratton 493496

ELBOW, FUEL PIPE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 298049

LINE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 692601

LINE
(Superseded to 791867)

$15.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 94644

SCREW, HEX HEAD
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

188A

Briggs & Stratton 692590

SCREW

$3.99

$

In Stock, only 1 left!

0

189

Briggs & Stratton 263108

BALL
(Superseded to 694543)

$

$

Not available

209

Briggs & Stratton 693710

SPRING

$7.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 693710

SPRING

$7.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 693578

GEAR GOVERNOR

$26.99

$

In Stock, only 1 left!

0

220

Briggs & Stratton 221551

WASHER THRUST
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 693405

BRACKET
(Superseded to 699885)

$136.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 499506

LEVER
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

232

Briggs & Stratton 693408

SPRING

$8.99

$

In Stock, only 3 left!

0

238

Briggs & Stratton 263131

CAP
(Superseded to 691300)

$9.49

$

In Stock, Qty 9

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

281

Briggs & Stratton 693407

PANEL

$11.99

$

Usually ships in 2-12 days

0

285

Briggs & Stratton 692595

STRAP

$15.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 693593

MUFFLER

$37.99

$

In Stock, only 1 left!

0

304

Briggs & Stratton 693621

HOUSING
(Superseded to 699598)

$90.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 692577

SCREW

$3.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 690960

SCREW, HEX
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

305B

Briggs & Stratton 692557

SCREW

$3.99

$

Usually ships in 2-12 days

0

305C

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 693610

SHIELD
(Superseded to 795334)

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 692605

ARMATURE
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055

PLUG, SPARK
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

346

Briggs & Stratton 94896

SCREW, SEMS
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

353

Briggs & Stratton 95137

NUT
(Superseded to 694543)

$

$

Not available

354

Briggs & Stratton 692575

NUT

$2.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 398808

WIRE, GROUND

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 690031

GASKET SET
(Superseded to 698216)

$69.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 692582

NUT

$7.99

$

Usually ships in 2-12 days

0

373A

Briggs & Stratton 94907

BOLT, GOVENOR LEVEL
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

383

Briggs & Stratton 19374

WRENCH
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 94655

SCREW
(Superseded to 690349)

$6.99

$

In Stock, only 1 left!

0

423A

Briggs & Stratton 94929

SCREW, SELF-TAPPING
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

445

Briggs & Stratton 498596

FILTER
(Superseded to 697029)

$13.99

$

In Stock, Qty 20+

0

455

Briggs & Stratton 225457

CUP
(Superseded to 591302)

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

RETAINER, STARTER
(Superseded to 692299)

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505

PAWL, RATCHET
(Superseded to 281505S)

$3.49

$

In Stock, Qty 9

0

467

Briggs & Stratton 493903

KNOB, AIR CLEANER
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

478

Briggs & Stratton 693709

PANEL

$

$

Not available

526

Briggs & Stratton 94974

SCREW, HEX
(Superseded to 691127)

$4.49

$

In Stock, Qty 13

0

562

Briggs & Stratton 94852

BOLT, GOVERNOR LEVER
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

608

Briggs & Stratton 497830

STARTER ASSEMBLY, REWIND

$49.99

$

In Stock, only 3 left!

0

613

Briggs & Stratton 94706

SCREW
(Superseded to 691665)

$7.99

$

In Stock, only 4 left!

0

615

Electrolux/AYP 94672

RETAINER

$

$

Not available

616

Briggs & Stratton 692547

CRANK

$9.49

$

Usually ships in 2-12 days

0

619

Briggs & Stratton 94744

SCREW, SEMS
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

623

Briggs & Stratton 94943

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691696)

$11.99

$

In Stock, Qty 5

0

634

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

634A

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

635

Briggs & Stratton 805529

ELBOW, SPARK PLUG
(Superseded to 692076)

$5.49

$

In Stock, Qty 20+

0

642

Briggs & Stratton 693460

COVER

$24.99

$

In Stock, only 1 left!

0

663

Briggs & Stratton 692577

SCREW

$3.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393757

DEFLECTOR, EXHAUST, SIDE OUTLET
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

689

Briggs & Stratton 263073

SPRING, RETAINER
(Superseded to 691855)

$4.49

$

In Stock, only 1 left!

0

717

Briggs & Stratton 693462

AIR CLEANER BRACKET

$8.49

$

Usually ships in 2-12 days

0

741

Electrolux/AYP 263157

GEAR

$

$

Not available

742

Briggs & Stratton 692564

RING

$4.49

$

In Stock, only 2 left!

0

743

Briggs & Stratton 692566

GEAR
(Superseded to 790278)

$17.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 692598

SCREW

$3.99

$

Usually ships in 2-12 days

0

819A

Briggs & Stratton 94914

SCREW, SEMS, TANK BRACKET MOUNT
(Superseded to 691685)

$3.99

$

In Stock, Qty 5

0

830

Electrolux/AYP 94993

SCREW

$

$

Not available

832

Briggs & Stratton 693583

GUARD
(Superseded to 593953)

$45.99

$

In Stock, only 1 left!

0

836

Briggs & Stratton 94896

SCREW, SEMS
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

836A

Briggs & Stratton 692596

BRACKET
(Superseded to 699229)

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

863A

Briggs & Stratton 692596

BRACKET
(Superseded to 699229)

$24.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 498592

SEAL
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 272309

GASKET, EXHAUST
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

957

Briggs & Stratton 493988

CAP, FUEL TANK
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 692586

VALVE
(Superseded to 698180)

$11.99

$

In Stock, Qty 20+

0

961

Electrolux/AYP 963598

SCREW

$

$

Not available

967

Briggs & Stratton 273356

FILTER
(Superseded to 273356S)

$5.49

$

In Stock, Qty 6

0

972

Briggs & Stratton 692587

TANK
(Superseded to 699885)

$136.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 690033

GASKET SET
(Superseded to 695157)

$18.99

$

In Stock, only 2 left!

0

978

Briggs & Stratton 273346

GASKET
(Superseded to 694088)

$8.49

$

In Stock, Qty 16

0

1005

Briggs & Stratton 692592

FAN
(Superseded to 555778)

$14.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 690035

LABEL KIT

$34.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 273241

GASKET
(Superseded to 691890)

$7.99

$

In Stock, only 2 left!

0

1023

Briggs & Stratton 499924

COVER
(Superseded to 595245)

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 693517

ROD

$9.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 225246

ARM
(Superseded to 691230)

$9.49

$

Usually ships in 2-12 days

0

1033

Briggs & Stratton 690034

KIT
(Superseded to 791798)

$33.99

$

In Stock, only 1 left!

0

1034

Briggs & Stratton 281621

GUIDE
(Superseded to 691343)

$9.99

$

In Stock, only 2 left!

0

1058

Electrolux/AYP 273700

OWNER'S MANUAL

$

$

Not available

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available
