346 XP TRIOBRAKE - Husqvarna Chainsaw (2008-09) Trio Brake Parts Diagram

Chainsaw

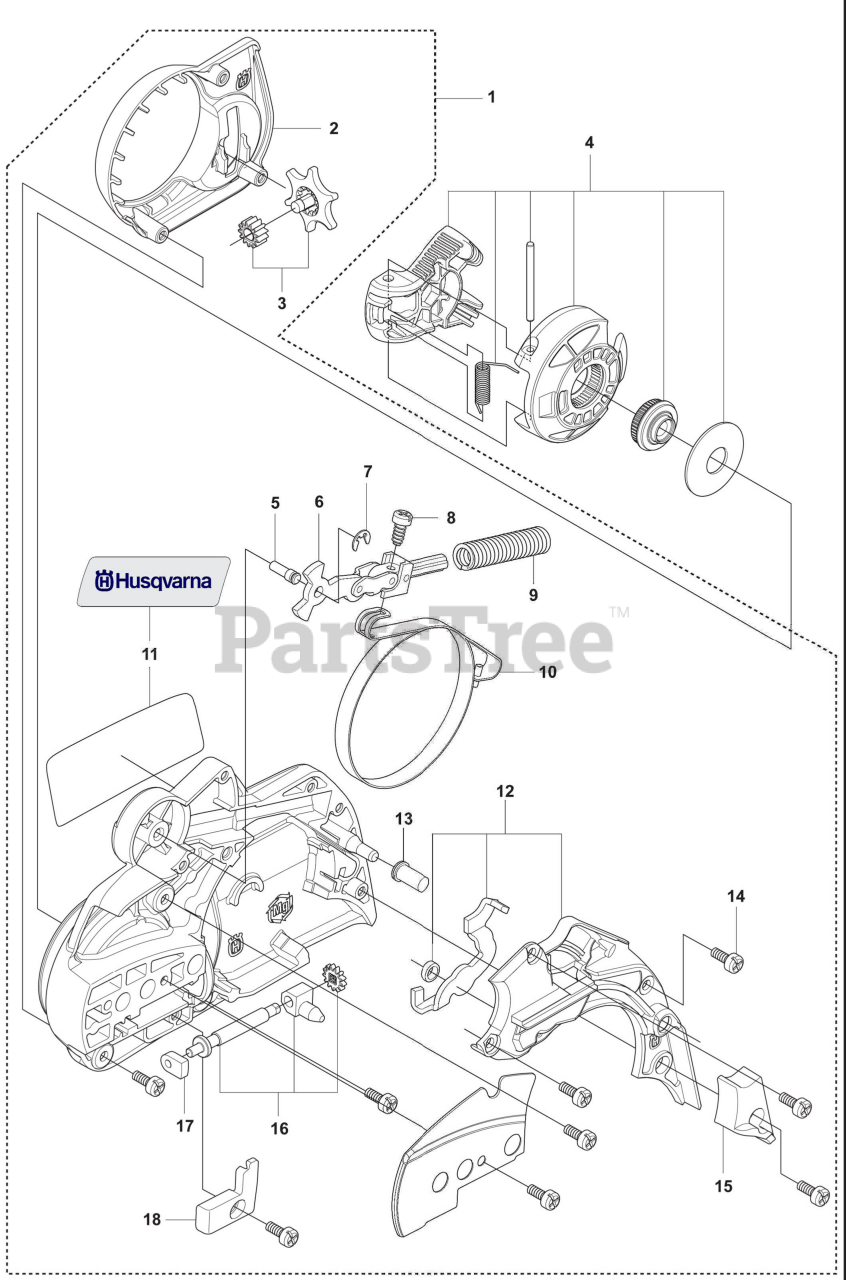

Trio Brake Parts Diagram

  • Title

1

Husqvarna 505324201

CLUTCH COVER ASSY

$

$

Not available

2

Husqvarna 537392601

Heat Shield

$12.99

$

In Stock, only 1 left!

0

3

Husqvarna 537347201

Chain Tensioner Wheel

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 537347801

Complete Knob

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 503890802

Joint

$40.99

$

In Stock, only 1 left!

0

7

Husqvarna 735310820

Bar Retainer

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 503217010

Screw

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 503465901

Spring

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 537043002

BRAKE BAND

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544357501

Clutch Housing Decal

$6.49

$

In Stock, only 3 left!

0

12

Husqvarna 502306101

Cover Lid Assembly

$20.76

$

Usually ships in 3-10 days

0

13

Husqvarna 503855201

Sleeve

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 503217010

Screw

$4.99

$

In Stock, Qty 17

0

15

Husqvarna 544083001

Chain Wear Guard

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537392901

Chain Tensioner Screw, Comp

$13.99

$

In Stock, only 1 left!

0

17

Husqvarna 544845501

Sleeve Bearing
(Superseded to 525354301)

$9.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537347601

Cover
(Superseded to 504542801)

$4.99

$

In Stock, Qty 6

0
