346 XP - Husqvarna Chainsaw HANDLE & CONTROLS Parts Diagram

Chainsaw

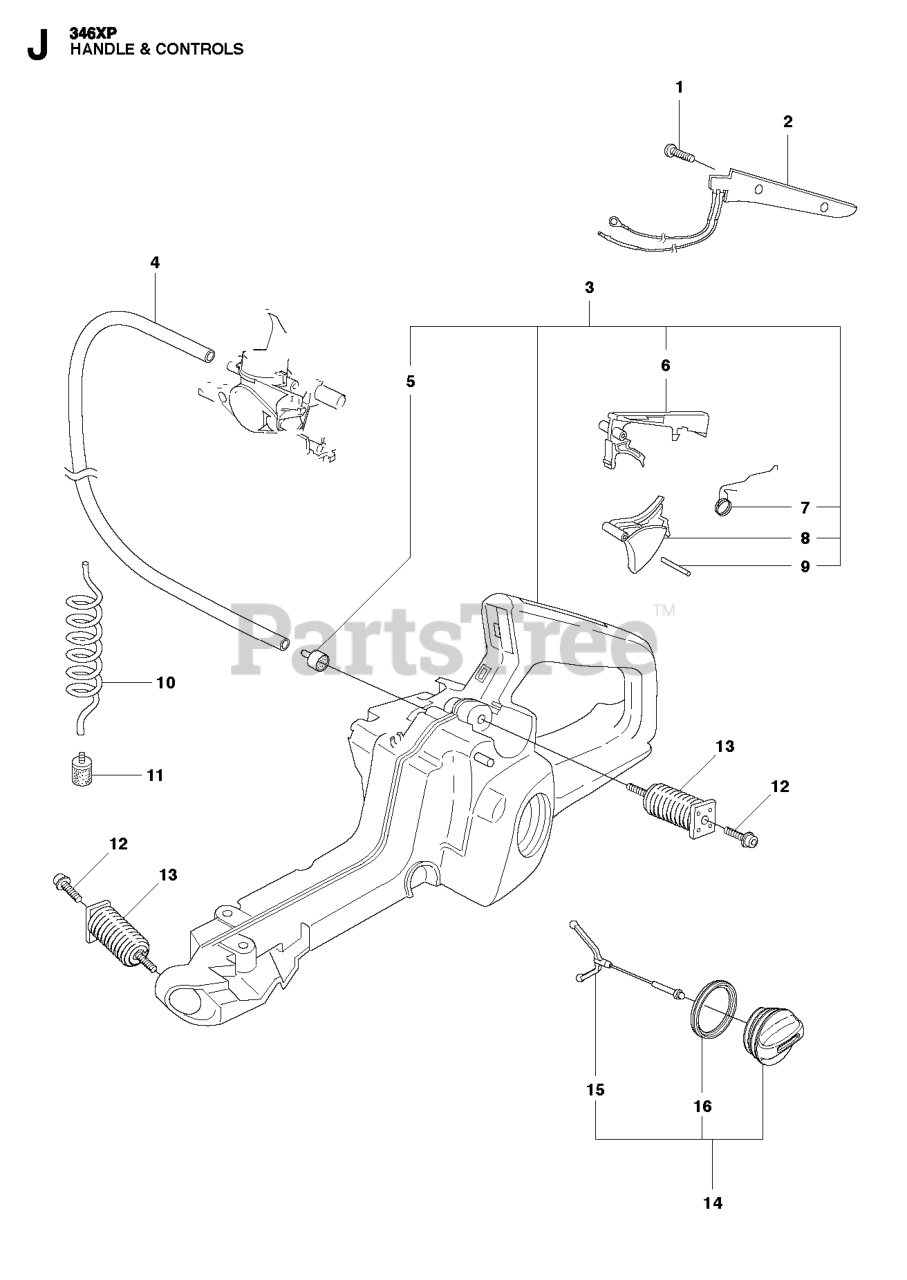

HANDLE & CONTROLS Parts Diagram

  • Title

4

Husqvarna 544324920

FUEL HOSE
(Superseded to 581756120)

$

$

Not available

6

Husqvarna 503854401

THROTTLE LOCK

$12.99

$

In Stock, only 3 left!

0

5

Husqvarna 501629801

VALVE PLUG

Note: - up to s/n 20050699999.

$7.49

$

In Stock, Qty 7

0

13

Husqvarna 503854101

VIBRATION ABSORBER

$24.99

$

In Stock, Qty 9

0

2

Husqvarna 503926102

HANDLE CIRCUIT

Note: XPG

$39.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503998601

SPRING

$9.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544325002

FUEL HOSE
(Superseded to 591375201)

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503600401

FILTER PLUG

Note: - up to s/n 20050699999.

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 537215208

TANK CAP

Note: E-tech

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 503863703

TANK UNIT

$

$

Not available

5

Husqvarna 501152901

FUEL TANK VENT

Note: From s/n 20050700001 -

$17.99

$

In Stock, Qty 6

0

14

Husqvarna 537215207

TANK CAP

Note: Std

$11.99

$

In Stock, Qty 12

0

9

Husqvarna 720182520

PIN

$2.99

$

In Stock, Qty 18

0

16

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

1

Husqvarna 503213801

SCREW

Note: XPG

$

$

Not available

12

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

11

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

8

Husqvarna 503854501

TRIGGER

$9.99

$

In Stock, only 2 left!

0
