346 XP - Husqvarna Chainsaw (SN: 20012200001 - 20032200000) IGNITION SYSTEM Parts Diagram

Chainsaw

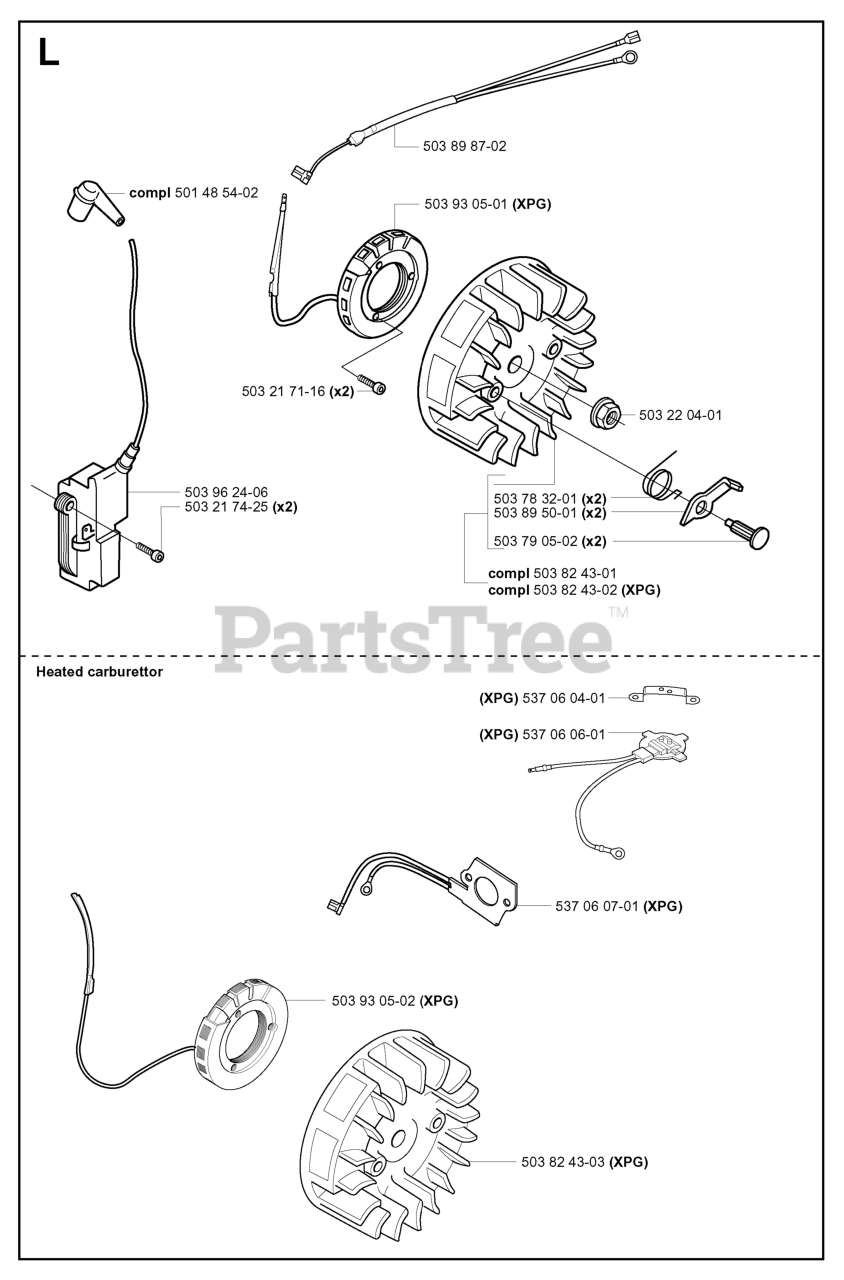

IGNITION SYSTEM Parts Diagram

  • Title

503 79 05-02

Husqvarna 503790502

RIVET

$4.99

$

In Stock, Qty 5

0

503 78 32-01

Husqvarna 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

$7.49

$

In Stock, Qty 7

0

503 93 05-01

Husqvarna 503930501

GENERATOR (G)
(Superseded to 537330201)

Note: XPG

$159.99

$

Usually ships in 3-10 days

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

503 21 71-16

Husqvarna 503217116

SCREW
(Superseded to 586444901)

$3.49

$

In Stock, Qty 7

0

503 89 50-01

Husqvarna 503895001

PAWL

$5.99

$

Usually ships in 3-10 days

0

503 82 43-02

Husqvarna 503824302

FLYWHEEL (G)

Note: XPG

$261.99

$

Usually ships in 3-10 days

0

537 06 04-01

Husqvarna 537060401

BRACKET

$5.76

$

Usually ships in 3-10 days

0

503 22 04-01

Husqvarna 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 7

0

503 89 87-02

Husqvarna 503898702

CABLE ASSY

$17.99

$

Usually ships in 3-10 days

0

537 06 07-01

Husqvarna 537060701

ELEMENT

$58.84

$

Usually ships in 3-10 days

0

503 96 24-06

Husqvarna 503962406

IGNITION MODULE
(Superseded to 544047001)

$121.99

$

Usually ships in 3-10 days

0

503 21 74-25

Husqvarna 503217425

SCREW
(Superseded to 503215525)

$6.49

$

In Stock, only 2 left!

0

503 93 05-02

Husqvarna 503930502

GENERATOR
(Superseded to 537330202)

$124.62

$

Usually ships in 3-10 days

0

503 82 43-03

Husqvarna 503824303

RP FLYWHEEL
(Superseded to 503824305)

$

$

Not available

503 82 43-01

Husqvarna 503824301

FLYWHEEL

$125.99

$

In Stock, only 1 left!

0

537 06 06-01

Husqvarna 537060601

THERMOSTAT
(Superseded to 537189901)

$101.54

$

Usually ships in 3-10 days

0
