346 XP - Husqvarna Chainsaw (SN: 20012200001 - 20032200000) CARBURETOR DETAILS Parts Diagram

Chainsaw

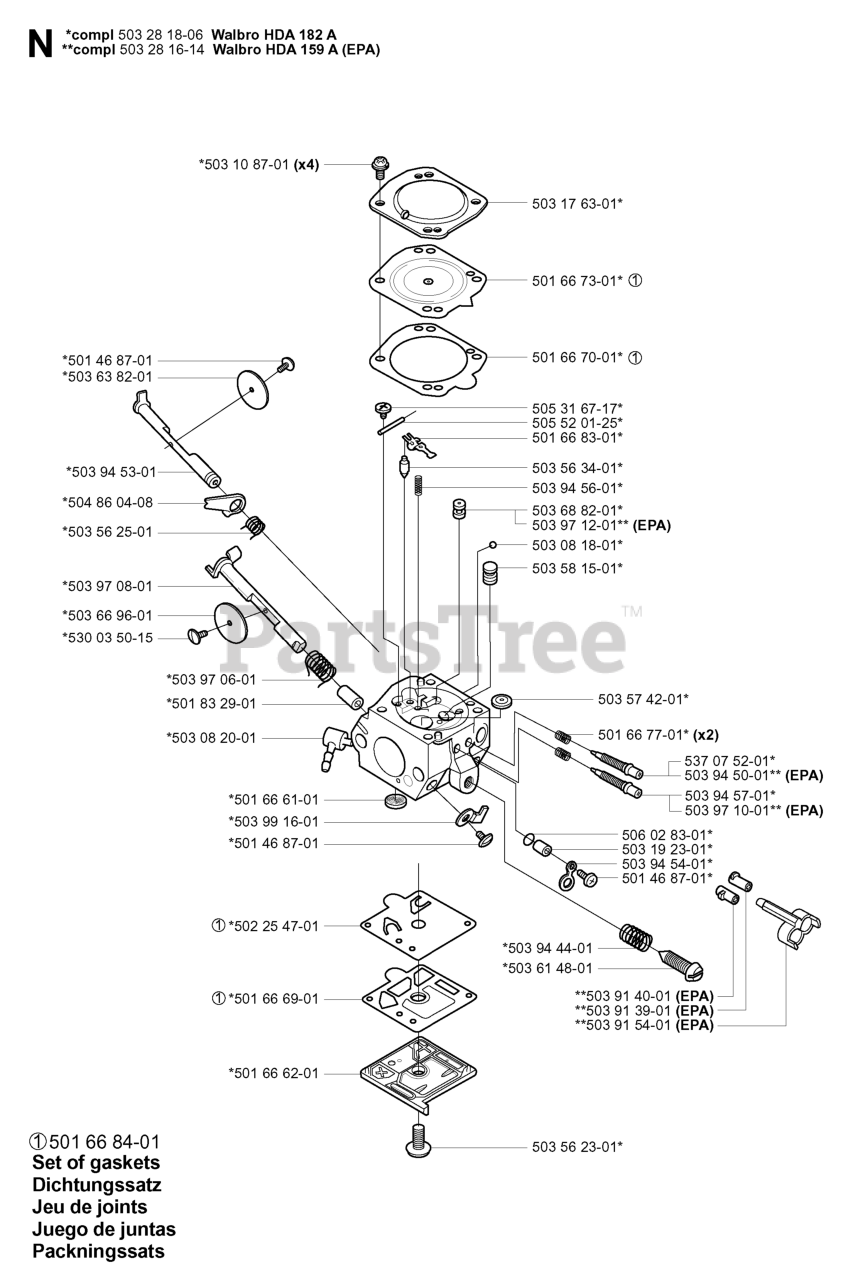

CARBURETOR DETAILS Parts Diagram

  • Title

503 94 56-01

Husqvarna 503945601

SPRING

$

$

Not available

503 63 82-01

Husqvarna 503638201

CHOKE VALVE

$2.49

$

Usually ships in 3-10 days

0

503 97 10-01

Husqvarna 503971001

Adjusting Screw (EPA)

Note: EPA

$

$

Not available

504 86 04-08

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

503 97 12-01

Husqvarna 503971201

JET

Note: EPA

$3.49

$

Usually ships in 3-10 days

0

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

In Stock, only 1 left!

0

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

503 91 54-01

Husqvarna 503915401

CAP

Note: EPA

$9.49

$

Usually ships in 3-10 days

0

503 97 06-01

Husqvarna 503970601

RETURN SPRING

$3.49

$

Usually ships in 3-10 days

0

501 66 62-01

Husqvarna 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

503 68 82-01

Husqvarna 503688201

JET

$6.99

$

Usually ships in 3-10 days

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

503 56 23-01

Husqvarna 503562301

Screw

$

$

Not available

501 66 69-01

Husqvarna 501666901

GASKET, PUMP SIDE

Note: 501 66 84-01 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

501 66 77-01

Husqvarna 501667701

SPRING

$9.49

$

In Stock, only 3 left!

0

503 94 54-01

Husqvarna 503945401

LEVER

$4.99

$

In Stock, only 3 left!

0

503 08 18-01

Husqvarna 503081801

Washer

$

$

Not available

503 28 16-14

Husqvarna 503281614

CARBURETOR HDA 159A EPA WALBRO
(Superseded to 503283208)

Note: WALBRO HDA 159 A EPA

$113.99

$

Usually ships in 3-10 days

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

501 66 70-01

Husqvarna 501667001

GASKET, METERING SIDE

Note: 501 66 84-01 SET OF GASKETS

$7.99

$

In Stock, only 3 left!

0

503 19 23-01

Husqvarna 503192301

SPACER

$

$

Not available

537 07 52-01

Husqvarna 537075201

ADJUSTING SCREW

$9.49

$

Usually ships in 3-10 days

0

503 91 39-01

Husqvarna 503913901

LIMITER CAP

Note: EPA

$

$

Not available

503 66 96-01

Husqvarna 503669601

THROTTLE VALVE

$5.99

$

Usually ships in 3-10 days

0

501 66 83-01

Husqvarna 501668301

LEVER

$17.99

$

Usually ships in 3-10 days

0

503 97 08-01

Husqvarna 503970801

Shaft

$

$

Not available

501 83 29-01

Husqvarna 501832901

BUSHING

$2.49

$

Usually ships in 3-10 days

0

501 66 73-01

Husqvarna 501667301

METERING DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$74.99

$

In Stock, only 1 left!

0

503 58 15-01

Husqvarna 503581501

JET

$5.99

$

Usually ships in 3-10 days

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

503 17 63-01

Husqvarna 503176301

COVER METERING DIAPHR.

$5.99

$

In Stock, only 2 left!

0

503 28 18-06

Husqvarna 503281806

CARBURETOR
(Superseded to 503283207)

Note: WALBRO HDA 182 A

$113.99

$

In Stock, only 1 left!

0

503 56 25-01

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

503 99 16-01

Husqvarna 503991601

LEVER

$

$

Not available

506 02 83-01

Husqvarna 506028301

WASHER

$13.99

$

Usually ships in 3-10 days

0

503 08 20-01

Husqvarna 503082001

NIPPLE

$5.99

$

In Stock, only 2 left!

0

503 94 44-01

Husqvarna 503944401

SPRING

$13.99

$

In Stock, only 1 left!

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503 94 53-01

Husqvarna 503945301

Chokeshaft

$

$

Not available

503 94 57-01

Husqvarna 503945701

IDLE NEEDLE

$5.99

$

In Stock, only 1 left!

0

503 91 40-01

Husqvarna 503914001

LIMITER CAP

Note: EPA

$5.99

$

In Stock, only 1 left!

0

503 94 50-01

Husqvarna 503945001

Adjusting Screw (EPA)

Note: EPA

$

$

Not available

503 61 48-01

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

502 25 47-01

Husqvarna 502254701

PUMP DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available
