346 XP - Husqvarna Chainsaw (2011-01) CYLINDER PISTON Parts Diagram

Chainsaw

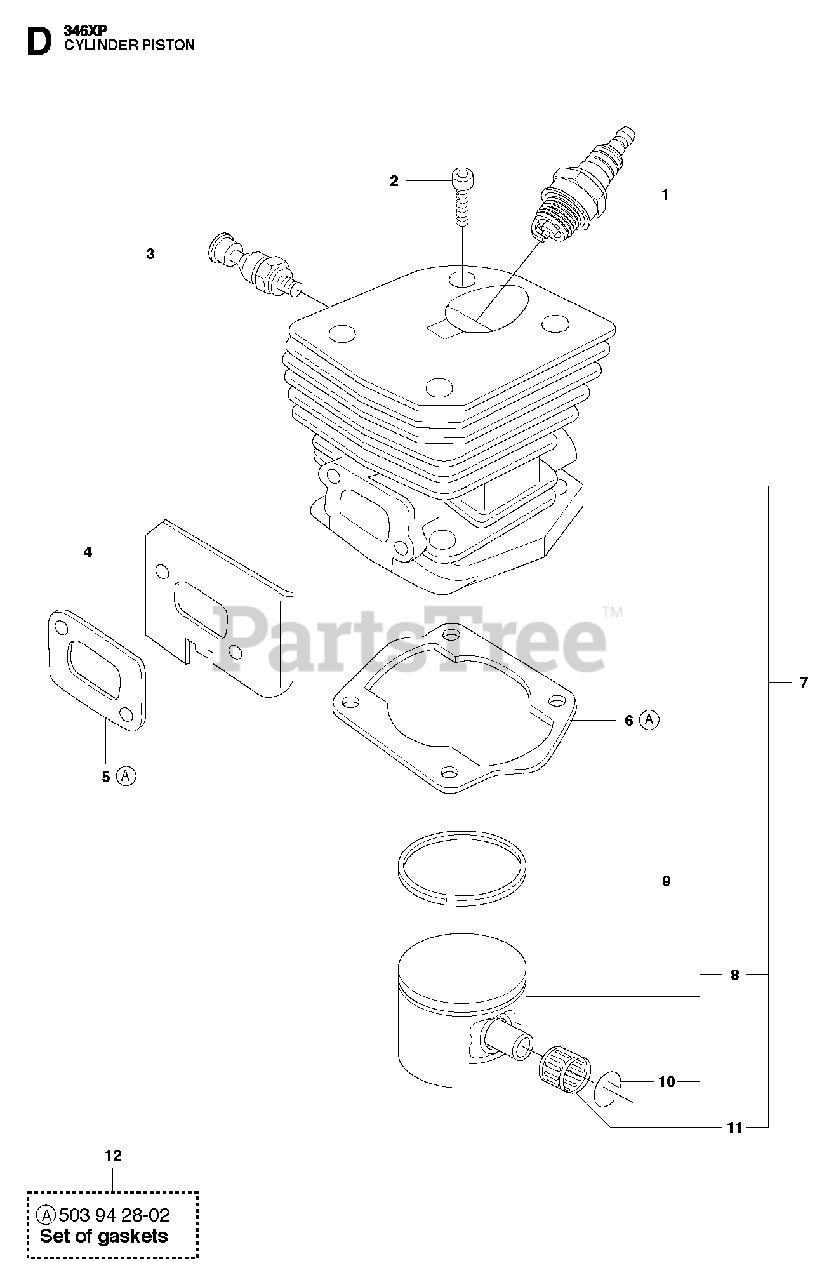

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

3

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$66.99

$

In Stock, only 2 left!

0

4

Husqvarna 503971301

GUARD

$12.99

$

In Stock, only 1 left!

0

5

Husqvarna 503862501

GASKET

Note: . 12

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 503894401

GASKET

Note: . 12

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142907

CYLINDER

Note: 346XP 50 cc

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142908

CYLINDER

Note: 346XP decomp 50 cc

$205.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503869872

Note: 346XP Japan 45 cc

$

$

Currently unavailable

8

Husqvarna 525470102

PISTON ASSY

Note: 346XP 50 cc 346XP decomp 50 cc. 7

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503907371

PISTON ASSY

Note: 346XP Japan 45 cc. 7

$102.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289056

PISTON RING
(Superseded to 544807601)

Note: 346XP 50 cc 346XP decomp 50 cc. 8

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289005

PISTON RING

Note: 346XP Japan 45 cc. 8

$31.99

$

In Stock, only 3 left!

0

10

Husqvarna 737441000

LOCKING RING

Note: . 8

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 501451601

SUPPORT BUSHING

Note: . 7

$24.99

$

In Stock, only 1 left!

0

12

Husqvarna 503942802

GASKET SET

Note: A Set of gaskets

$14.99

$

In Stock, only 1 left!

0
