346 XP - Husqvarna Chainsaw (2011-01) CLUTCH OIL PUMP Parts Diagram

Chainsaw

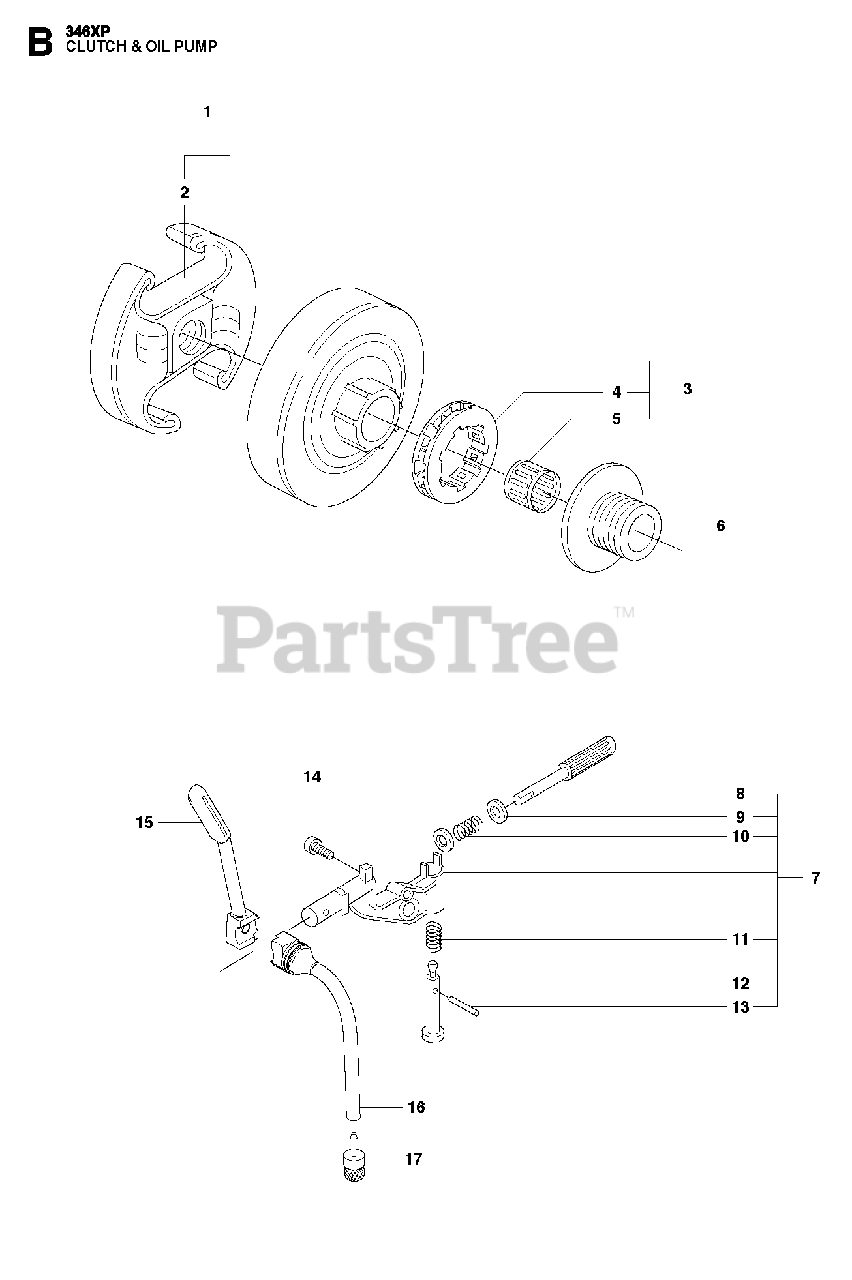

CLUTCH OIL PUMP Parts Diagram

  • Title

1

Husqvarna 537110503

CLUTCH

$48.99

$

In Stock, only 4 left!

0

2

Husqvarna 537359101

SPRING

Note: . 1

$8.99

$

In Stock, Qty 11

0

3

Husqvarna 503980002

CLUTCH DRUM

$66.99

$

In Stock, only 1 left!

0

4

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: . 3

$8.49

$

In Stock, Qty 6

0

5

Husqvarna 503255201

NEEDLE BEARING

Note: . 3

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503892103

PUMP PINION

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544180103

OIL PUMP ASSY

$74.99

$

In Stock, only 2 left!

0

8

Husqvarna 537069102

PUMP PISTON

Note: . 7

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503230060

WASHER

Note: . 7

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 503891601

SPRING

Note: . 7

$6.99

$

In Stock, only 3 left!

0

11

Husqvarna 503891501

SPRING

Note: . 7

$6.49

$

In Stock, Qty 7

0

12

Husqvarna 537027101

ADJUSTER

Note: . 7

$9.99

$

In Stock, only 2 left!

0

13

Husqvarna 721116430

PIN

Note: . 7

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 503217412

SCREW

$3.49

$

In Stock, Qty 7

0

15

Husqvarna 537413201

OIL PRESSURE HOSE

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 537101101

RP HOSE
(Superseded to 537101102)

$24.99

$

In Stock, only 2 left!

0

17

Husqvarna 504710003

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0
