346 XP - Husqvarna Chainsaw (2009-02) Cylinder Kit (NE) Parts Diagram

Chainsaw

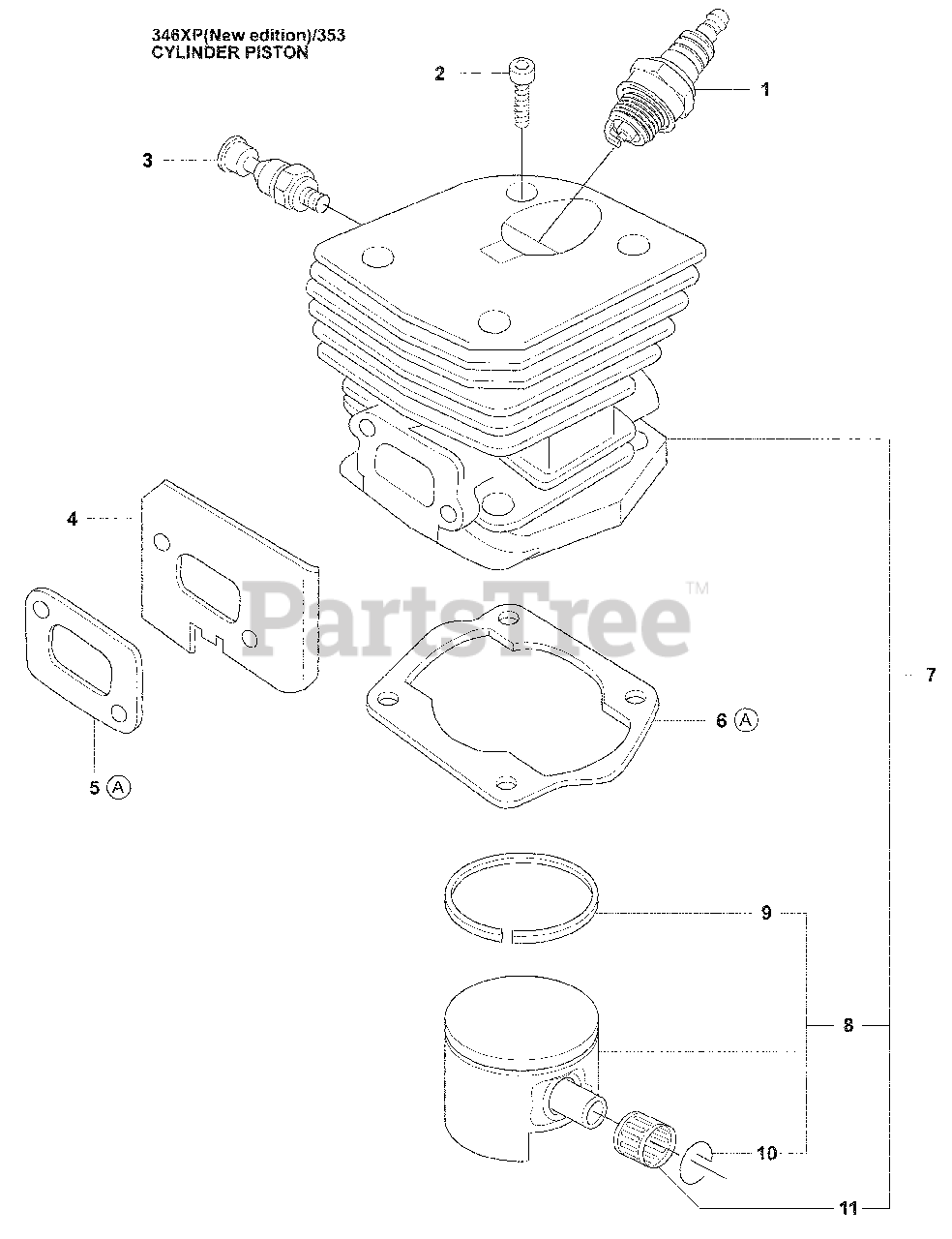

Cylinder Kit (NE) Parts Diagram

  • Title

1

Husqvarna 503235108

Solid Spark Plug, BPMR7A
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 725533355

Screw, MC6S 5 X 25

$6.49

$

In Stock, Qty 17

0

3

Husqvarna 503665401

Decompression Valve
(Superseded to 544200001)

$66.99

$

In Stock, only 2 left!

0

4

Husqvarna 503971301

Guard

$12.99

$

In Stock, only 1 left!

0

5

Husqvarna 503862501

Muffler Gasket

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 503894401

Gasket

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537253104

Cylinder Assembly

Note: 353

$227.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142903

Cylinder
(Superseded to 544142907)

Note: 346XP 50 cc

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142904

Cylinder
(Superseded to 544142908)

Note: 346XP decomp 50 cc

$205.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537223604

Piston

Note: 353

$157.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544143102

Piston
(Superseded to 525470102)

Note: 346XP 50 cc, 346XP decomp 50 cc

$125.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289011

Piston Ring
(Superseded to 544435001)

Note: 353

$31.99

$

In Stock, only 2 left!

0

9

Husqvarna 503289056

Piston Ring
(Superseded to 544807601)

Note: 346XP 50 cc, 346XP decomp 50 cc

$29.99

$

Usually ships in 3-10 days

0

10

Husqvarna 737441000

Locking Ring

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 501451601

Support Bushing

$24.99

$

In Stock, only 1 left!

0

12

Husqvarna 503942802

Gasket Set

Note: A = Set of gaskets

$14.99

$

In Stock, only 1 left!

0
