34501 - Troy-Bilt 42" & 48" GRS Attachment (SN: 0100101 - 0199999) 42" & 48" GRS ATTACHMENT Parts Diagram

42" & 48" GRS Attachment

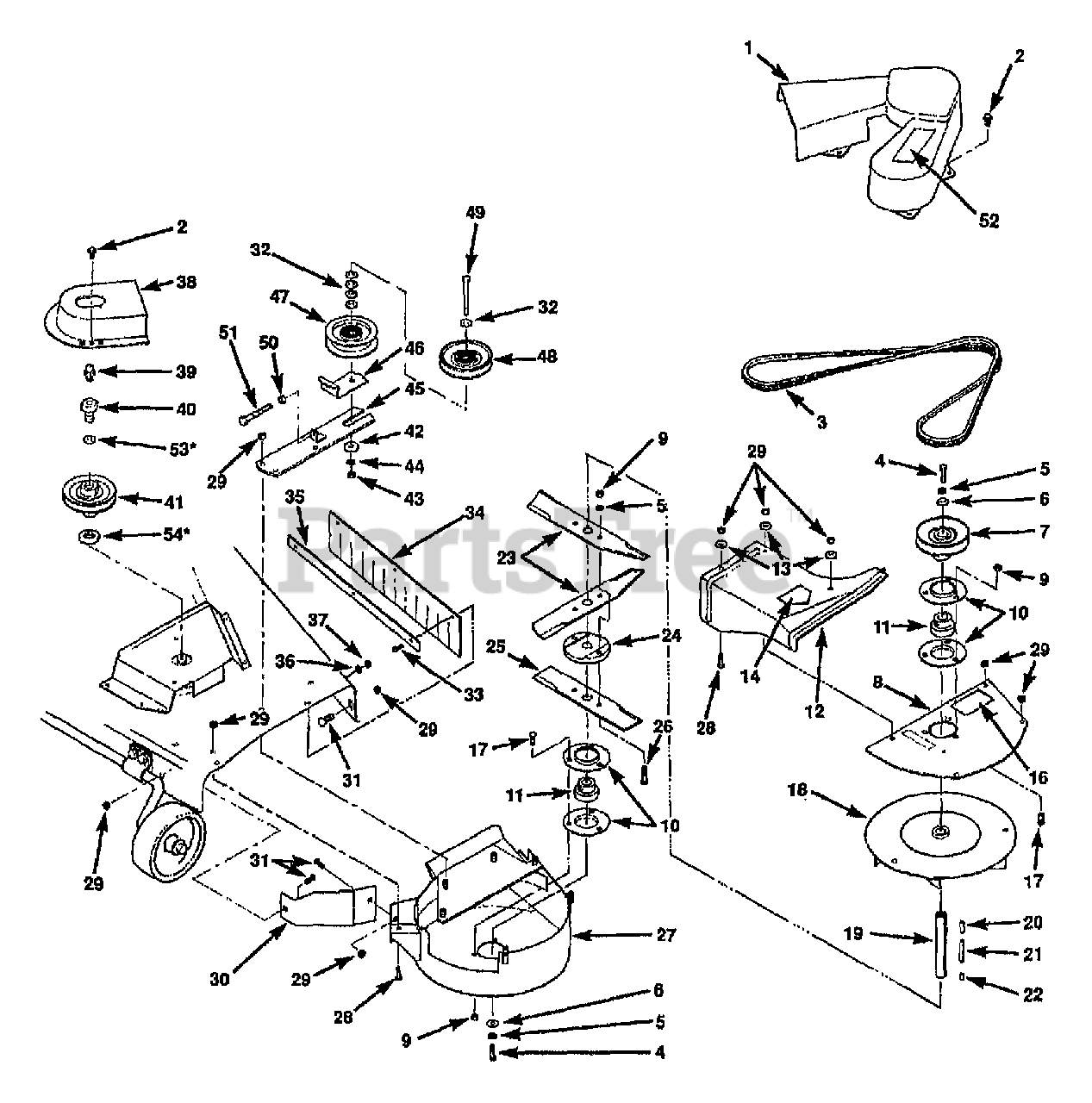

42" & 48" GRS ATTACHMENT Parts Diagram

  • Title

1

MTD 1761222

COVER-BELT

$

$

Not available

2

MTD 1185933

SCR-THRD FRM 1/4-14X.50

$

$

Not available

3

MTD 1761224

BELT-DRIVE

$

$

Not available

4

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 1729245

WASHER-.312 X 1.378

$

$

Not available

7

Troy-Bilt 1761234

SHEAVE-DRIVEN

$

$

Currently unavailable

8

MTD 1761221001

HOUSING-COVER

$

$

Not available

9

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1800418

BEARING

$

$

Not available

11

MTD 1735372

BEARING-BALL

$

$

Not available

12

Troy-Bilt 1762082

DEFLECTR-DISCH W/DECAL

$

$

Currently unavailable

13

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

14

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1761238

DECAL-BELT INSTALLATION

$

$

Currently unavailable

17

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1761272001

ASSM-FAN

$

$

Currently unavailable

19

Troy-Bilt 1761278

SHAFT

$

$

Currently unavailable

20

Troy-Bilt 1104333

KEY-.188 SQ X 1.0
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1104335

KEY-.188 SQ X 2.0
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1761237

KEY .188 SQ X.343

$

$

Currently unavailable

23

Troy-Bilt 1761280

BLADE-11.375"

$

$

Currently unavailable

24

Troy-Bilt 1761277

HUB-BLADE

$

$

Currently unavailable

25

Troy-Bilt 1761223

BLADE-10"

$

$

Currently unavailable

26

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

27

Troy-Bilt 1761215001

HOUSING-FAN

$

$

Currently unavailable

28

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 1761230001

BAFFLE-REAR

$

$

Currently unavailable

31

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

32

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

33

Troy-Bilt 1186294

SCR HFLK #10-24X.75 ZP

$

$

Currently unavailable

34

Troy-Bilt 1761232

SHIELD-DEFLECTOR

$

$

Currently unavailable

35

Troy-Bilt 1761233001

STRIP-RETAINER

$

$

Currently unavailable

36

Troy-Bilt 1100240

WASHER-LK M10

$

$

Not available

37

Troy-Bilt 1186227

NUT-HEX M10-24
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

38

MTD 1755634

GUARD-BELT

$

$

Not available

39

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 1755306

LOCK-SHEAVE

$

$

Currently unavailable

41

Troy-Bilt 1755638

PULLEY-DRIVE

$

$

Not available

42

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 1761282001

ASSM-IDLER BRACKET

$

$

Currently unavailable

46

Troy-Bilt 1761284

BRKT-ADJUSTMENT

$

$

Currently unavailable

47

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

49

Troy-Bilt 1110644

SCR-HHC 3/8-16X3.25
(Superseded to 1911403)

$

$

Not available

50

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

MTD 1744709

SCR-HHM 5/16-18X2.75

$

$

Not available

52

Troy-Bilt 1761239

DECAL-IDENTIFICATION

$

$

Currently unavailable

53

Troy-Bilt 1755993

SPACER-.625X.406X.179

$

$

Currently unavailable

54

Troy-Bilt 1755989

SPACER-1.25X.781X.179

$

$

Currently unavailable
