345 - Shindaiwa Chainsaw Piston, Crankshaft Parts Diagram

Chainsaw

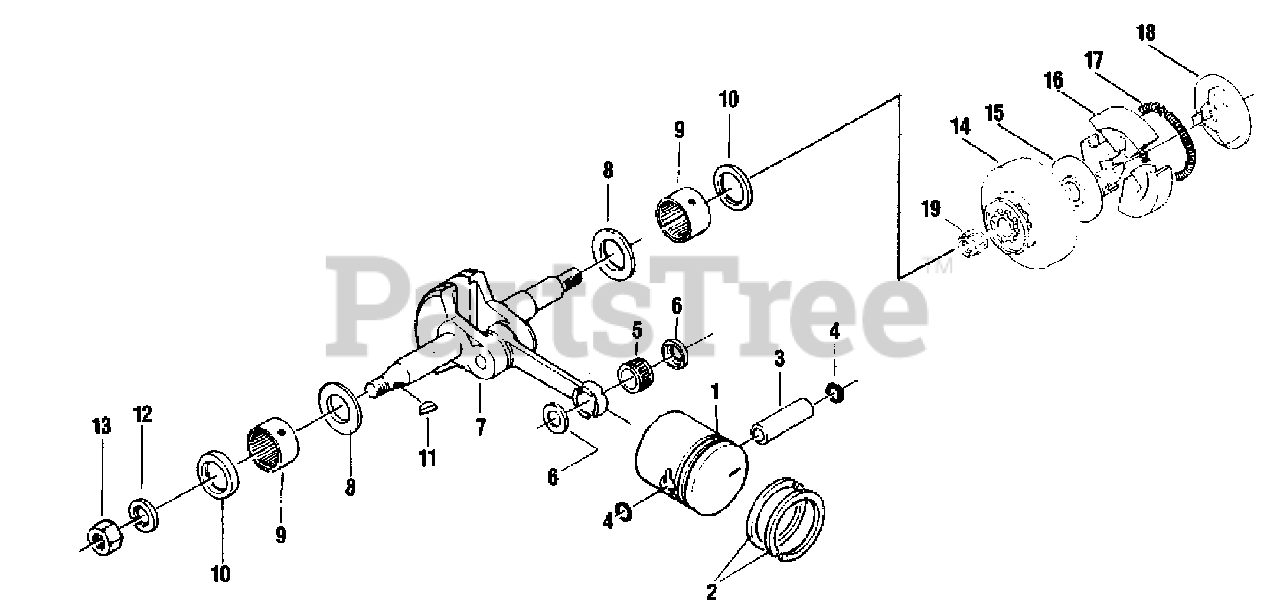

Piston, Crankshaft Parts Diagram

  • Title

Echo 99909-115

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 22106-41110

PISTON
(Superseded to Discontinued)

$

$

Not available

2

Echo 20010-41210

RING, PISTON
(Superseded to A101000380)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 22100-41220

PIN, PISTON

$4.99

$

Usually ships in 2-4 days

0

4

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$0.99

$

In Stock, only 1 left!

0

5

Echo 20010-41330

BEARING, NEEDLE
(Superseded to V555000090)

$9.49

$

In Stock, only 3 left!

0

6

Echo 22104-41340

WASHER, THRUST
(Superseded to 22156-41340)

$6.99

$

In Stock, only 2 left!

0

7

Echo 22128-42001

CRANKSHAFT ASSY
(Superseded to 22128-42002)

$76.99

$

Usually ships in 2-4 days

0

8

Echo 22106-43110

WASHER, THRUST
(Superseded to Discontinued)

$

$

Not available

9

Echo 22100-43160

BEARING, NEEDLE
(Superseded to V557000050)

$22.99

$

Usually ships in 2-4 days

0

10

Echo 22100-43170

SEAL, OIL
(Superseded to V505000130)

$5.49

$

Usually ships in 2-4 days

0

11

Echo 22100-43210

KEY - 3X10
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

12

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

13

Echo 22100-43231

NUT
(Superseded to V265000180)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 22115-51110

CLUTCH DRUM ASSY
(Superseded to A055000040)

Note: PR 73

$51.99

$

Usually ships in 2-4 days

0

Echo 22115-51000

CLUTCH ASSY

$

$

Currently unavailable

15

Echo 22102-51210

HUB, CLUTCH
(Superseded to A552000170)

$7.49

$

Usually ships in 2-4 days

0

16

Echo 22100-51220

SHOE, CLUTCH
(Superseded to A555000170)

$10.99

$

Usually ships in 2-4 days

0

17

Echo 22102-51230

SPRING, CLUTCH
(Superseded to V451000890)

$3.99

$

Usually ships in 2-4 days

0

18

Echo 22104-51240

HUB, CLUTCH - OUTER

$20.99

$

In Stock, only 1 left!

0

19

Echo 22102-51310

BEARING, NEEDLE
(Superseded to V555000110)

$9.49

$

Usually ships in 2-4 days

0
