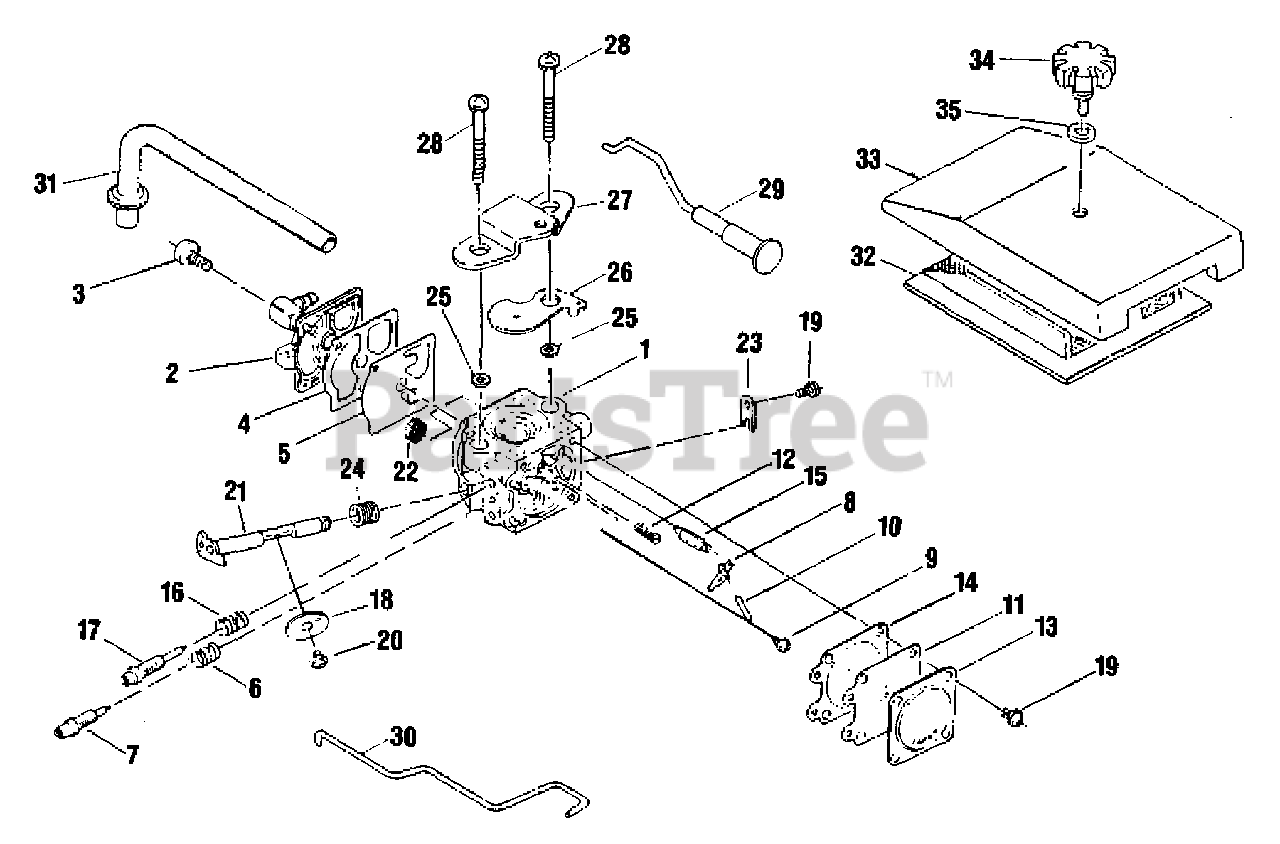

345 - Shindaiwa Chainsaw Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

1

Echo 22104-81000

CARBURETOR WA-115
(Superseded to 22104-81001)

Note: NOT AVAILABLE SEPARATELY

$74.99

$

Usually ships in 2-4 days

0

2

Echo 22128-81120

PUMP COVER ASSY
(Superseded to P003002750)

Note:

$

$

Not available

3

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

Note:

$0.99

$

In Stock, only 1 left!

0

4

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

Note:

$2.49

$

In Stock, Qty 9

0

5

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

Note:

$5.99

$

In Stock, only 2 left!

0

6

Echo 22100-81160

SPRING
(Superseded to 12312103930)

Note:

$1.49

$

In Stock, Qty 5

0

7

Echo 22104-81170

NEEDLE - LOW SPEED
(Superseded to 22104-81310)

Note:

$17.99

$

Usually ships in 2-4 days

0

8

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

Note:

$6.49

$

In Stock, only 1 left!

0

9

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

Note:

$1.49

$

In Stock, only 1 left!

0

10

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

Note:

$5.99

$

In Stock, only 4 left!

0

11

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

Note:

$13.99

$

In Stock, Qty 6

0

12

Echo 22104-81270

SPRING, METERING LEVER
(Superseded to 12312211130)

Note:

$1.49

$

In Stock, only 1 left!

0

13

Echo 22100-81280

COVER, DIAPHRAGM
(Superseded to 12314203930)

Note:

$3.99

$

In Stock, only 1 left!

0

14

Echo 22100-81290

GASKET, METERING
(Superseded to 12314003930)

Note:

$1.99

$

In Stock, Qty 6

0

15

Echo 22100-81310

VALVE, INLET NEEDLE
(Superseded to 12313704260)

Note:

$3.99

$

Usually ships in 2-4 days

0

16

Echo 22100-81320

SPRING
(Superseded to 12311903930)

Note:

$1.49

$

In Stock, only 4 left!

0

17

Echo 22104-81330

NEEDLE - HIGH SPEED
(Superseded to 22104-81320)

Note:

$17.99

$

Usually ships in 2-4 days

0

18

Echo 22104-81340

VALVE, THROTTLE
(Superseded to 12311610530)

Note:

$1.99

$

Usually ships in 2-4 days

0

19

Echo 22100-81351

SCREW
(Superseded to 12313002960)

Note:

$1.99

$

Usually ships in 2-4 days

0

20

Echo 22100-81360

SCREW
(Superseded to 12311403930)

Note:

$1.49

$

In Stock, Qty 13

0

21

Echo 22100-81370

SHAFT
(Superseded to 2210481350)

Note:

$17.99

$

Usually ships in 2-4 days

0

22

Echo 22128-81380

STRAINER
(Superseded to P003002770)

Note:

$0.99

$

Usually ships in 2-4 days

0

23

Echo 22100-81390

RING, RETAINING
(Superseded to 12312703930)

Note:

$1.49

$

Usually ships in 2-4 days

0

24

Echo 22100-81410

SPRING, RETURN

Note:

$0.99

$

In Stock, only 1 left!

0

25

Echo 22100-82110

WASHER
(Superseded to V303000280)

Note:

$0.99

$

In Stock, only 2 left!

0

26

Echo 22120-82120

PLATE, SHUTTER

Note:

$1.99

$

Usually ships in 2-4 days

0

27

Echo 22100-82130

BRACKET
(Superseded to Discontinued)

Note:

$

$

Not available

28

Echo 11204-05400

SCREW - 5X40
(Superseded to Discontinued)

Note:

$

$

Not available

29

Echo 22102-82140

ROD, CHOKE

Note:

$3.49

$

Usually ships in 2-4 days

0

30

Echo 22115-82210

ROD, THROTTLE
(Superseded to C454000220)

Note: PR 57

$3.49

$

Usually ships in 2-4 days

0

31

Echo 22104-82220

PIPE - IMPULSE
(Superseded to V470001390)

Note:

$2.49

$

In Stock, Qty 5

0

32

Echo 22102-97521

FILTER, AIR - FLOCKED
(Superseded to Discontinued)

Note:

$

$

Not available

33

Echo 22100-82400

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note:

$

$

Not available

34

Echo 22100-82420

THUMBSCREW
(Superseded to Discontinued)

Note:

$

$

Not available

35

Echo 22100-82430

O-RING
(Superseded to V581000200)

Note:

$0.99

$

In Stock, Qty 6

0

Echo 22100-81200

REPAIR KIT

Note:

$10.99

$

Usually ships in 2-4 days

0

Echo 22128-81100

DIAPHRAGM/GASKET KIT

Note:

$10.99

$

Usually ships in 2-4 days

0
