345 FXT - Husqvarna Brush Cutter (2008-05) Cylinder & Piston Parts Diagram

Brush Cutter

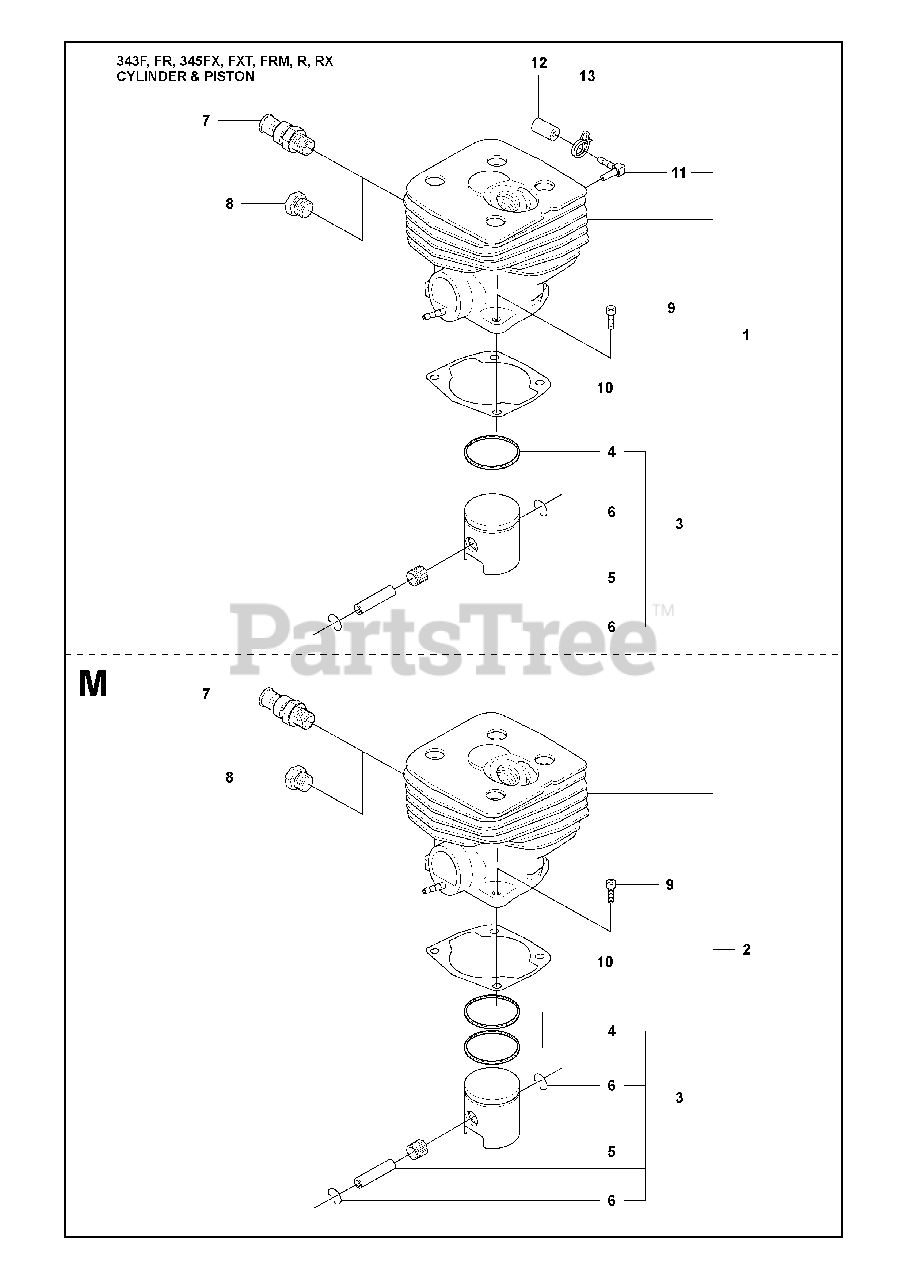

Cylinder & Piston Parts Diagram

  • Title

1

Husqvarna 503956402

CYLINDER
(Superseded to 544328901)

Note: Fx, FxT dia.41mm 43cc

$262.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505034804

CYLINDER ASSY

Note: F, FR, FRM, R, Rx dia.42mm 45cc

$170.99

$

In Stock, only 1 left!

0

3

Husqvarna 537159402

PISTON ASSEMBLY

Note: Fx, FxT dia.41mm 43cc

$96.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544093002

RP PISTON ASSY
(Superseded to 544093004)

Note: F, FR, FRM, R, Rx dia.42mm 45cc

$100.39

$

Usually ships in 3-10 days

0

4

Husqvarna 503289045

PISTON RING

Note: Fx, FxT dia.41mm 43cc

$28.99

$

In Stock, only 1 left!

0

4

Husqvarna 506449401

PISTON RING

Note: F, FR, FRM, R, Rx dia.42mm 45cc

$

$

Not available

5

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

6

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$66.99

$

In Stock, only 2 left!

0

8

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 503952701

GASKET
(Superseded to 502438001)

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 504340004

NIPPLE

Note: Fx, FxT

$

$

Not available

12

Husqvarna 537180001

PROTECTIVE CAP

Note: Fx, FxT

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 537320901

CLAMP

Note: Fx, FxT

$13.99

$

Usually ships in 3-10 days

0
