345 FXT - Husqvarna Brush Cutter (2008-05) Clutch Parts Diagram

Brush Cutter

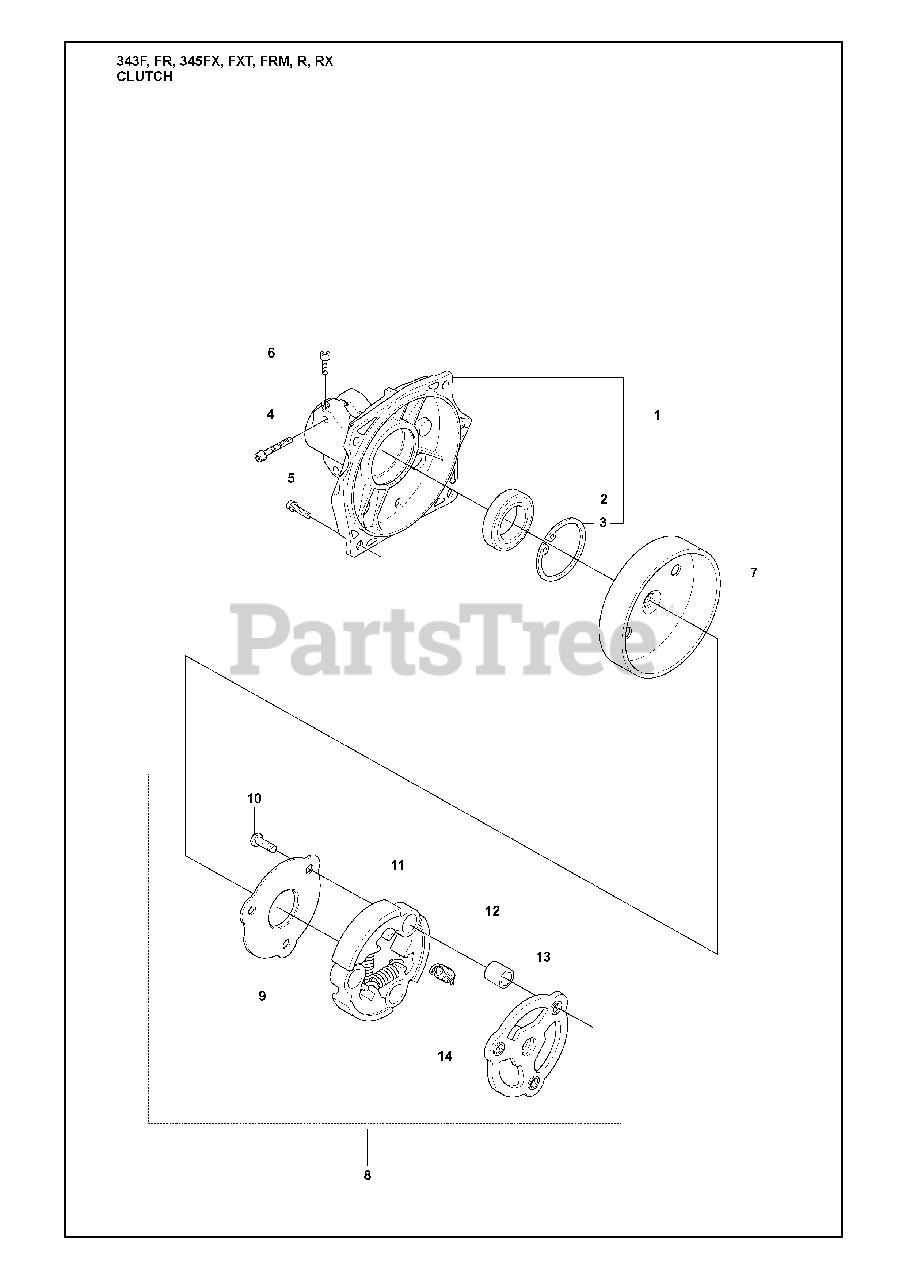

Clutch Parts Diagram

  • Title

1

Husqvarna 503954103

CLUTCH COVER
(Superseded to 503954105)

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503200230

SCREW

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 18

0

6

Husqvarna 503202001

SCREW MC6LS 5X12

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544900701

CLUTCH DRUM ASSM.

$43.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503953501

CLUTCH CPL
(Superseded to 588466601)

$

$

Not available

9

Husqvarna 537135301

WASHER

$

$

Not available

10

Husqvarna 503201818

SCREW
(Superseded to 503201802)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 503953601

CLUTCH

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537135401

BUSHING

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503953701

HUB

$20.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505435301

CLUTCH SPRING
(Superseded to 505435302)

Note: dia.1.7mm

$8.99

$

Usually ships in 3-10 days

0
