3441 E94 - Electrolux/AYP Lawn Tractor (1999) ALTERNATOR AND STARTER MOTOR Parts Diagram

Lawn Tractor

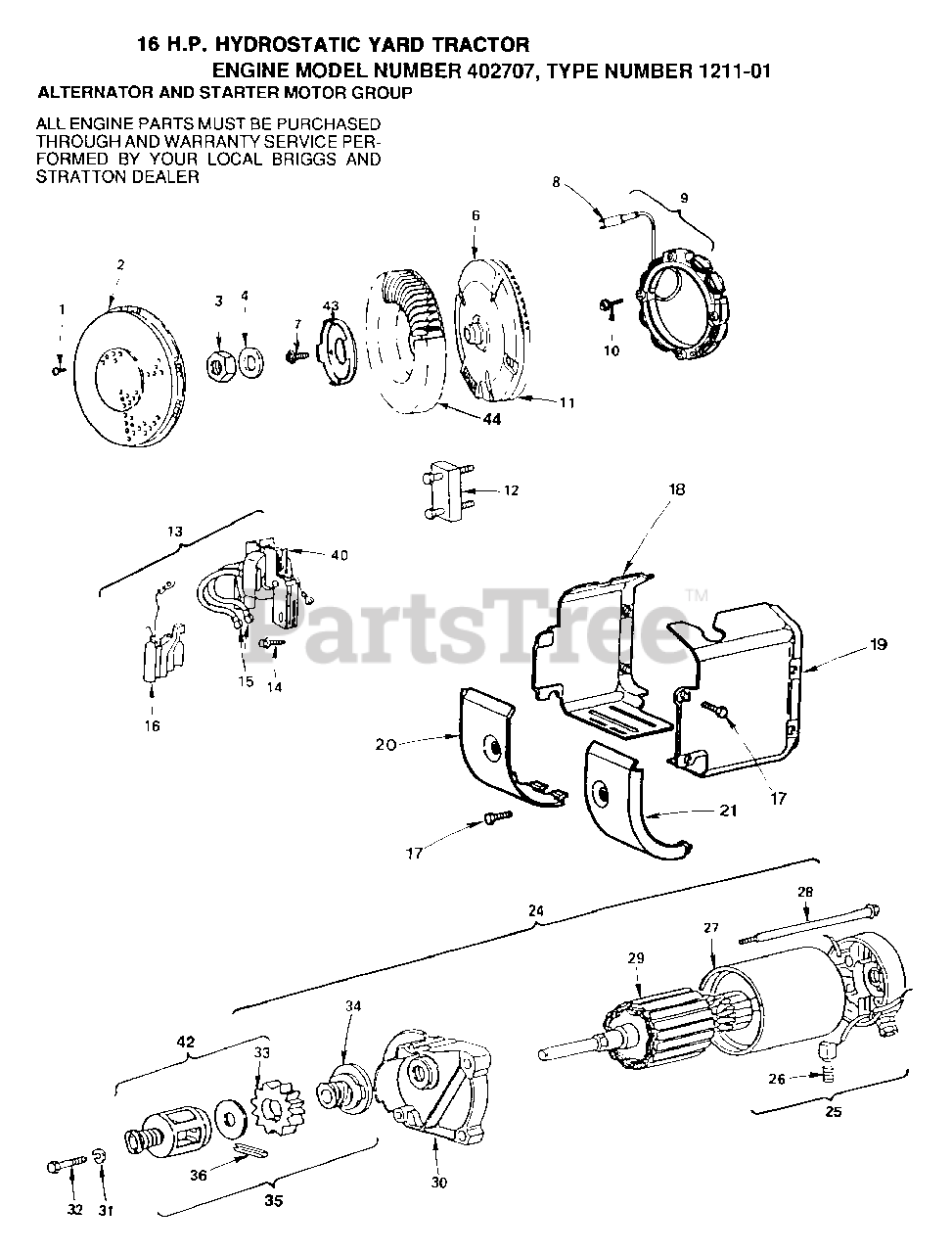

ALTERNATOR AND STARTER MOTOR Parts Diagram

  • Title

1

Briggs & Stratton 94326

SCREW, AIR CLEANER
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

2

Briggs & Stratton 222673

SCREEN, FLUSH ROTATING
(Superseded to 692527)

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 230674

NUT, HEX
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 222511

WASHER SPRING
(Superseded to 691056)

$9.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 222674

CUP - SCREEN MOUNTING

$31.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 491180

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 691976)

$471.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93535

SCREW, HEX HEAD
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 393537

CONNECTOR ASSEMBLY, TRI-CIRCUIT

$

$

Not available

9

Briggs & Stratton 392595

STATOR, ALTERNATOR
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 391362

GEAR, RING

$

$

Not available

12

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 394891

ARMATURE GROUP MAGNETRON IGNITION
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

14

Briggs & Stratton 93381

SCREW, SEM, ARMATURE MOUNTING
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 221798

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

16

Briggs & Stratton 394970

TRIGGER COIL ASSY MAGNATRON

$

$

Not available

17

Briggs & Stratton 93163

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

18

Briggs & Stratton 222848

COVER, AIR GUIDE
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 222849

COVER, AIR GUIDE
(Superseded to 691197)

$75.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 222846

SHIELD, CYLINDER
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 222847

SHIELD, CYLINDER
(Superseded to 690435)

$10.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 394808

MOTOR, STARTING
(Superseded to 497596)

$122.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 395537

END CAP ASS'Y. COMMUTATOR

$54.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 395538

BRUSH ASSEMBLY

$24.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 393825

HOUSING ASSEMBLY
(Superseded to 398159)

$80.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

29

Briggs & Stratton 390837

ARRMATURE ASSEMBLY

$159.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 394860

CAP, DRIVE
(Superseded to 691967)

$74.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 90366

LOCKWASHER
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91162

SCREW
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, only 4 left!

0

34

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 393254

RETAINER & PIN
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

36

Briggs & Stratton 94192

ROLL PIN

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 394988

ARMATURE ASSEMBLY
(Superseded to 590781)

$75.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 396865

DRIVE ASSY
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

43

Briggs & Stratton 223726

RETAINER FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 280815

FAN, FLYWHEEL

$

$

Not available
