34356 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 343561100101 - 343561199999) Mower Deck Assembly Parts Diagram

33" Wide-Cut Walk-Behind Mower

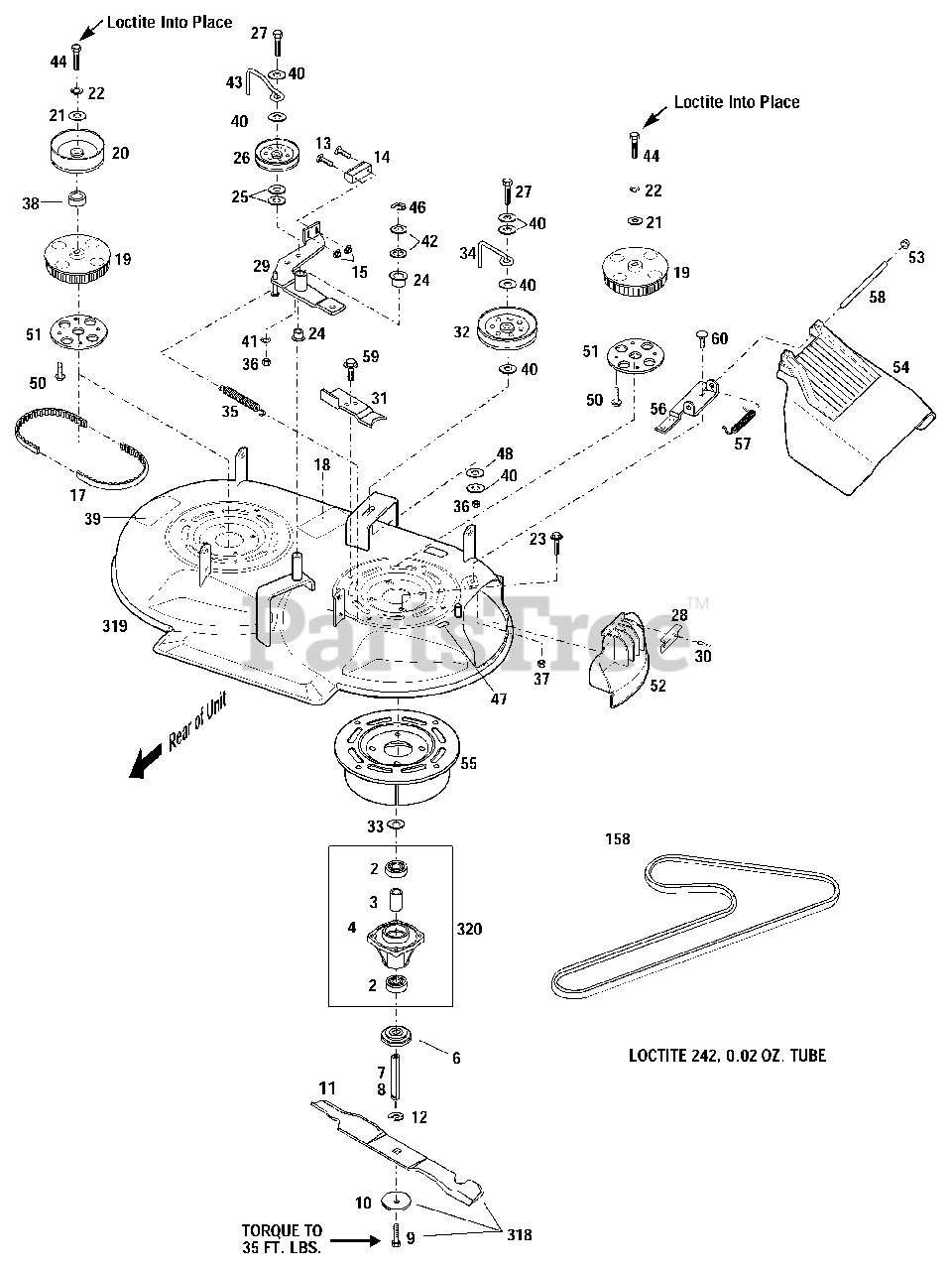

Mower Deck Assembly Parts Diagram

  • Title

2

Troy-Bilt 1185574

Ball Bearing
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 13

0

3

Troy-Bilt 1746869

Spacer

$19.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 1765092

Mower Spindle
(Superseded to 1769048099)

$175.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1765029

Blade Spacer

$13.99

$

In Stock, Qty 10

0

7

Troy-Bilt 1766061

Right Spindle Shaft
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1768169

Left Spindle Shaft (long)
(Superseded to 1918880)

$97.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1765196

Screw, 7/16-14 x 1

$3.99

$

In Stock, Qty 10

0

10

Troy-Bilt 1765197

Belleville Washer

$26.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 1910917

Blade, 33" Mulching
(Superseded to 1910917001)

$33.99

$

In Stock, Qty 16

0

12

Troy-Bilt 1185649

Retaining Ring

$

$

Not available

13

Troy-Bilt 1771081

Flat Head Screw, #10-24 x 1-1/4

$3.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 1771083

Brake Pad

$

$

Not available

15

Troy-Bilt 1185985

Nylon Locknut, #10-24
(Superseded to 712-0272)

Note: Use Loctite 242

$3.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 1773600

Toothed Drive Belt

$48.99

$

In Stock, only 3 left!

0

18

MTD 1768435

Caution Decal

$

$

Not available

19

Troy-Bilt 1774220

Cogged Pulley, 56T
(Superseded to 913-04050)

$162.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1769362

Drive Pulley
(Superseded to 1918625)

$

$

Not available

21

Troy-Bilt 1736484

Flat Washer, 7/16
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

22

Troy-Bilt 1100244

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 1773523

Flange Lock Screw, 5/16-18 x 1
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1764140

Flange Bushing

$5.49

$

In Stock, only 3 left!

0

25

Troy-Bilt 1701055

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1762794

Idler Pulley
(Superseded to 1918626)

$33.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 1100062

Hex Head Capscrew, 3/8-16 x 2-1/2

$

$

Not available

28

MTD 1911054

Adapter Trim

$

$

Not available

29

MTD 1770803

Idler Arm

$

$

Not available

30

Troy-Bilt 1186059

Pop Rivet

$

$

Currently unavailable

31

Troy-Bilt 1911021001

Belt Tension Adjustment Bracket

$

$

Not available

32

Troy-Bilt 1749911

Idler Pulley

$

$

Not available

33

Troy-Bilt 1766787

Special Thrust Washer

$6.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 1720717

Belt Guide

$

$

Not available

35

Troy-Bilt 1756595

Extension Spring

$17.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 1186231

Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 1723996

Pulley Spacer
(Superseded to 750-05218)

$7.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 1739687

Danger Decal

$7.49

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1768818

Flat Washer, 3/8 x 3/4
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1100243

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 1701447

Flat Washer

$4.49

$

In Stock, Qty 8

0

43

Troy-Bilt 1764135

Belt Guide

$

$

Not available

44

Troy-Bilt 1769397

Screw, 7/16-14 x 1-1/4
(Superseded to 710-04070)

Note: Use Loctite 242

$3.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 1113527

Retaining Ring
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 1768451

Warning Decal
(Superseded to 777S30503)

$11.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 1185715

Pyramid Washer, 3/8

$

$

Not available

50

Troy-Bilt 1771925

Triplask Screw, 1/4-20 x 5/8
(Superseded to 710-04065)

$6.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 1771922001

Sprocket Plate

$

$

Not available

52

Troy-Bilt 1773642

Mulcher Cover, Fold-Up Style
(Superseded to 631-04252)

Note: (Incl. Ref. 28 and 30)

$33.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 1727342

Cap
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 1910931

Discharge Chute
(Superseded to 931-04244)

$70.99

$

In Stock, only 2 left!

0

55

MTD 1910948001

Weldment Doubler

$

$

Not available

56

Troy-Bilt 1910951001

Bracket, Chute Hinge

$32.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1910971

Spring, Discharge Chute

$12.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 1910972

Pin, Discharge Chute

$13.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 1740496

Screw, Thread-Forming
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 90077

Bolt, Carriage, 3/8-18 x 3/4

$

$

Currently unavailable

158

Troy-Bilt 1769767

V-Belt

$44.99

$

In Stock, Qty 20+

0

318

Troy-Bilt 1773595

Mulching Blade Kit

Note: (Incl. Refs. 9 ,10 and 11)

$

$

Currently unavailable

319

MTD 1773587

Mower Deck Assembly

Note: (Incl. Refs. 18, 39 & 47)

$

$

Not available

320

Troy-Bilt 1769048

Mower Spindle Assembly
(Superseded to 1769048099)

Note: (Incl. Refs. 2, 3, 4 & 5)

$175.99

$

Usually ships in 3-6 days

0

Troy-Bilt 97092

Loctite 242, 0.02 oz. Tube
(Superseded to GW-97092)

Note: Item not included with unit; order separately.

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

Black Spray Paint Can, 13 oz
(Superseded to 788-0637A)

Note: Item not included with unit; order separately.

$30.99

$

In Stock, only 1 left!

0
