34346 - Troy-Bilt 21" Mulching Walk-Behind Mower (SN: 343461100101 - 343461199999) ELECTRIC START SYSTEM Parts Diagram

21" Mulching Walk-Behind Mower

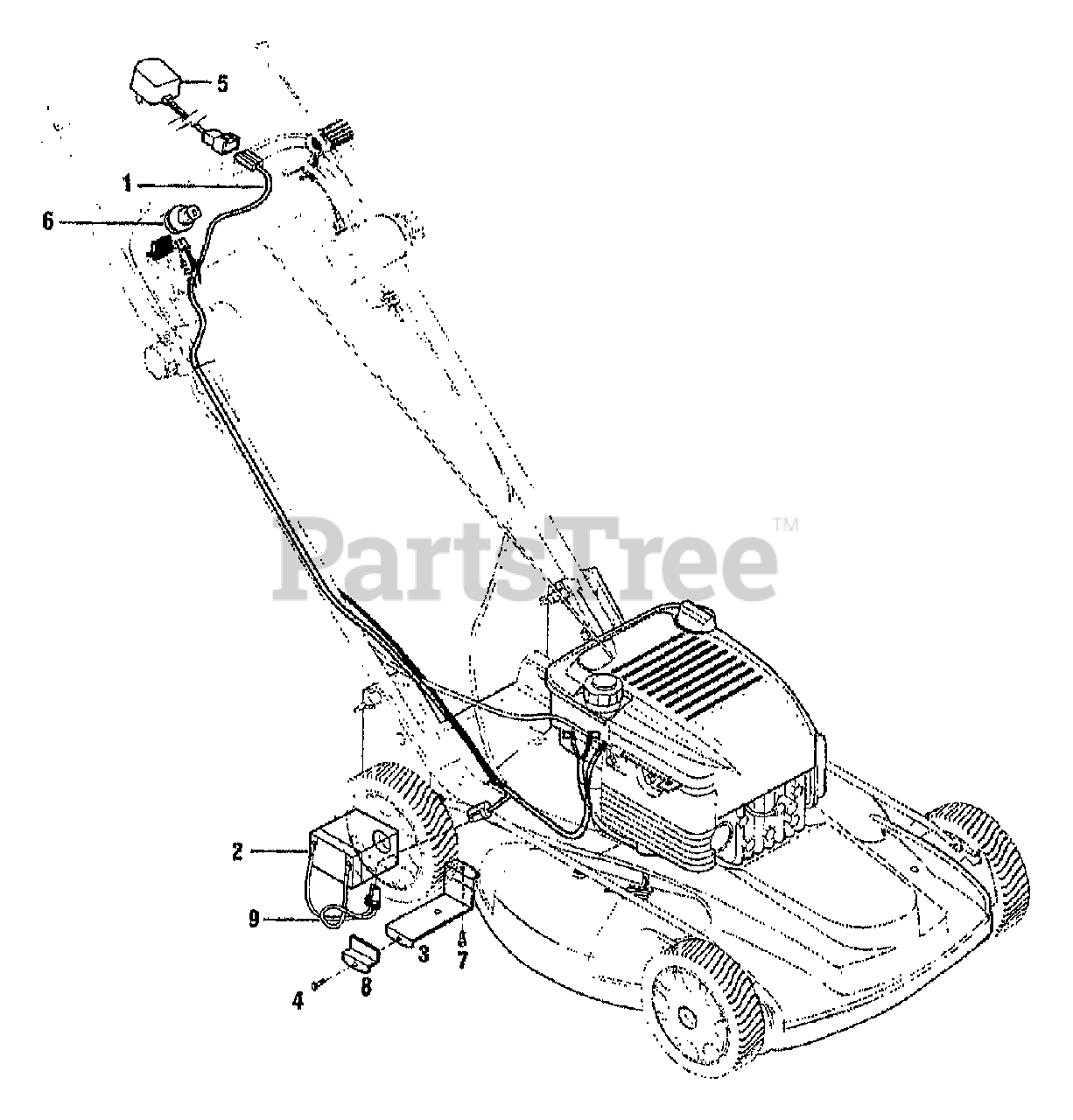

ELECTRIC START SYSTEM Parts Diagram

  • Title
1

Troy-Bilt 1765888

HARNESS-WIRE

$

$

Not available

2

Troy-Bilt 1909647

BATTERY ES2.9-12

$164.99

$

Usually ships in 3-6 days

0

3

MTD 1765887001

BRKT-BATTERY PAINTED

$

$

Not available

4

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 1768449

CHARGER-BATTERY
(Superseded to 725-13345)

$65.99

$

Usually ships in 3-6 days

0

6

0

IGNITION SWITCH COMPONENTS

$

$

Not available

7

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1909790001

BRKT-BATTERY NGMM

$18.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1909697

CONNECTOR-BATTERY

$23.99

$

Usually ships in 3-6 days

0
