34344 - Troy-Bilt 21" Walk-Behind Mower (SN: 343441100101 - 343441199999) CUTTING HEIGHT CONTROLS AND WHEEL ASSY. Parts Diagram

21" Walk-Behind Mower

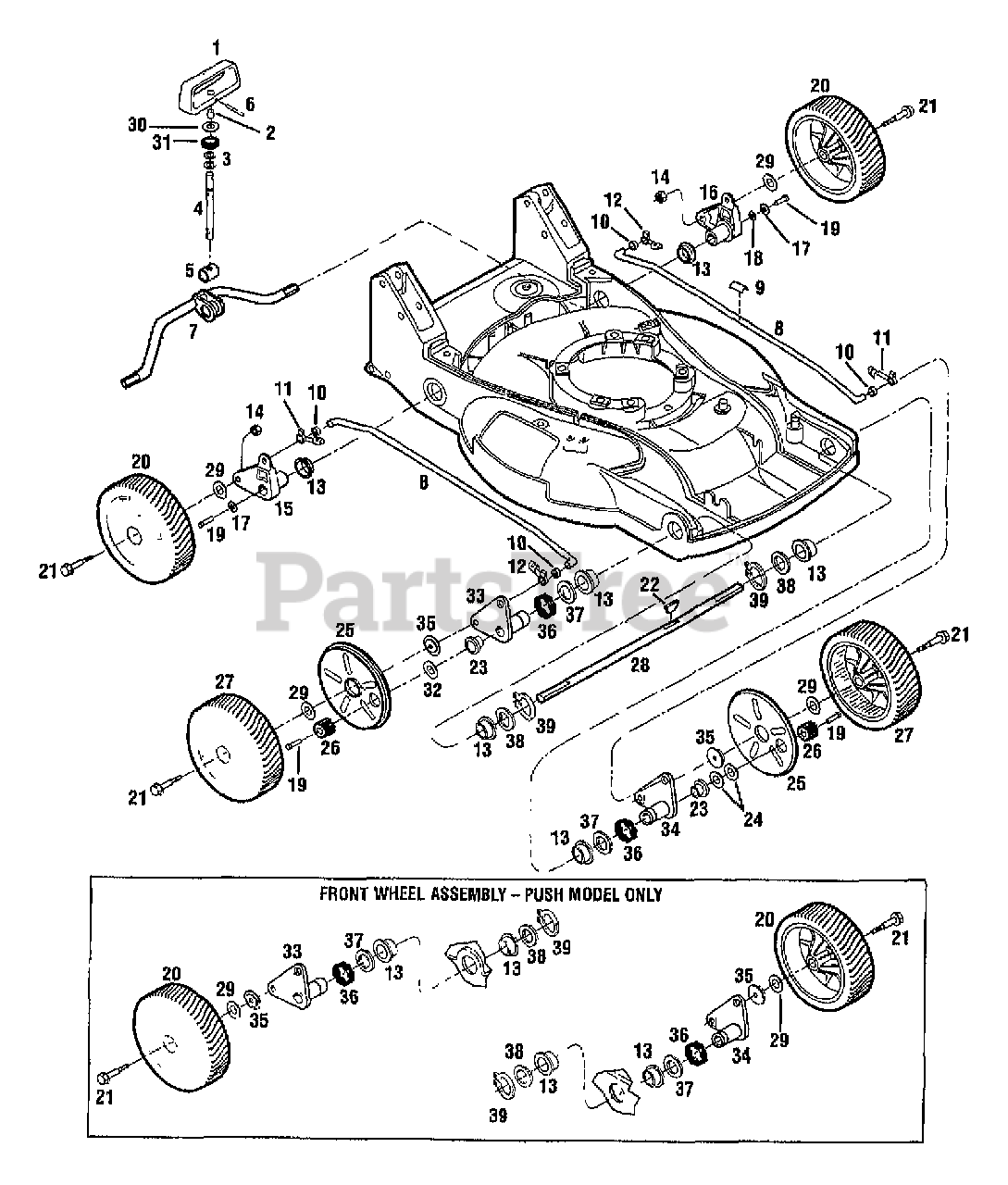

CUTTING HEIGHT CONTROLS AND WHEEL ASSY. Parts Diagram

  • Title

1

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

2

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

3

Troy-Bilt 20546

WASHER-#.88X.51X.063
(Superseded to GW-20546)

$

$

Not available

4

Troy-Bilt 1764815

SCR-HANDLE ADJUST

$

$

Currently unavailable

5

Troy-Bilt 1765594

PIVOT-SCR ADJUST
(Superseded to 1902765)

$

$

Not available

6

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

7

Troy-Bilt 1768578

AXLE-REAR E-COATED

$

$

Not available

8

MTD 1764818010

LINK-HEIGHT ADJ PNT

$

$

Not available

9

MTD 1767792

DECAL-INDICATOR

$

$

Not available

10

MTD 1768962

BEARING-NYLINER

$

$

Not available

11

Troy-Bilt 1765551

CLIP-ROD (RIGHT REAR / LEFT FRONT)

$8.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 1765550

CLIP-ROD (LEFT REAR / RIGHT FRONT)

$11.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1766500

BEARING-AXLE ARM REAR

$

$

Not available

14

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

15

Troy-Bilt 1902280

ARM-AXLE W/BUSHING RH

$52.99

$

Usually ships in 3-6 days

0

16

MTD 1902281

ARM-AXLE W/BUSHING LH

$

$

Not available

17

Troy-Bilt 1765591

WASHER-.78X.25X.08

$

$

Not available

18

Troy-Bilt 1767439

WASHER-.5X.25X.06

$

$

Not available

19

Troy-Bilt 1903399

SCR-HXSKT 1/4-20X.75 NYL

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1765740

ASSM-TIRE & WHEEL
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

21

MTD 1903416

SCR-SHLDR MOD. RADIUS

$

$

Not available

22

Troy-Bilt 1908671

KEY-WOODRUFF .125X.5 {NOT 34320 34320C,34044}
(Superseded to 914-0112)

$

$

Not available

23

Troy-Bilt 1903744

BEARING-CARRIER {NOT 34320 34320C34044}

$15.99

$

Usually ships in 3-6 days

0

24

MTD 1902283

WASHER-.92X.5X.03 HT {NOT 34320 34320C,34044}

$

$

Not available

24

Troy-Bilt 1902284

WASHER-.92X.5X.016 HT {NOT 34320 34320C, 34044}

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1902415

SHIELD-WHEEL W/STEP {NOT 34320 34320C,34044}
(Superseded to 1917083)

$15.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 1764570

PINION-DRIVE {NOT 34320 34320C,34044}
(Superseded to 1764570099)

$11.99

$

In Stock, only 1 left!

0

27

MTD 1765750

ASSM-TIRE & WHEEL (DRIVE) {NOT 34320 34320C, 34044}

$

$

Not available

28

Troy-Bilt 1909402

AXLE-DRIVE ROUND NGMM {NOT 34320 34320C, 34044}

$83.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1909311

WASHER-.88X.406X.09

$

$

Not available

30

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1708850

WASHER-RUBBER

$

$

Not available

32

Troy-Bilt 1983638

WASHER-THRUST .92X.5X.06 {NOT 34320 34320C, 34044}

$

$

Not available

33

Troy-Bilt 1909927001

ARM-WHEEL RT

$85.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 1909933001

ARM-WHEEL LT

$

$

Not available

35

Troy-Bilt 1902333

HUB-WHEEL SPACER

$6.49

$

In Stock, only 1 left!

0

36

MTD 1909948

SPRING-CREST

$

$

Not available

37

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

38

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 1909950

RING-HEAVY EXT .984 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0
