34342 - Troy-Bilt 33" Wide-Cut Walk-Behind Mower (SN: 343420100101 - 343421299999) HANDLEBAR AND CONSOLE Parts Diagram

33" Wide-Cut Walk-Behind Mower

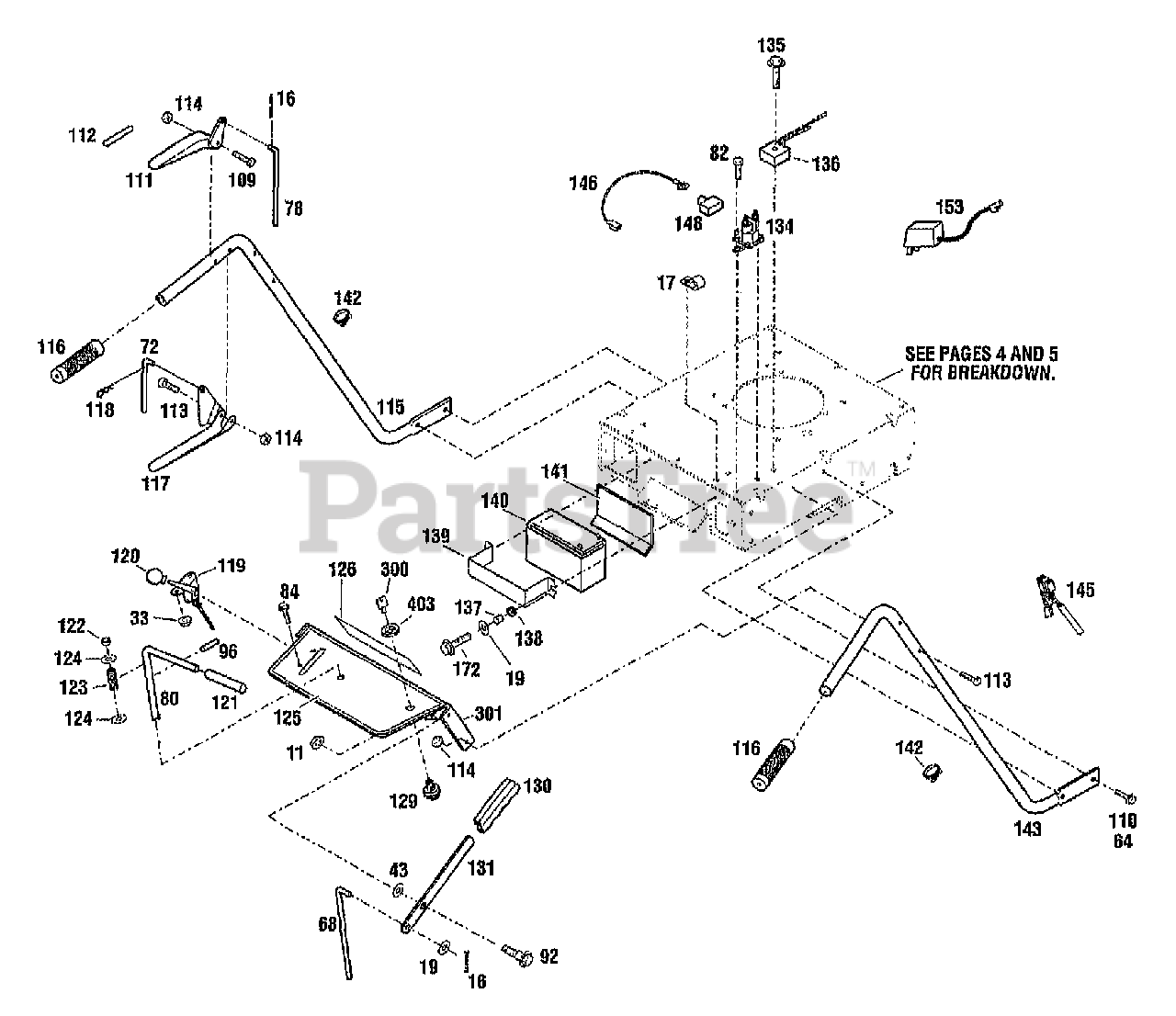

HANDLEBAR AND CONSOLE Parts Diagram

  • Title

11

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

17

MTD 1721252

CLIP-CLAMP .25 ID

$

$

Not available

19

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

33

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

43

MTD 1702646

WASHER-FLAT 1.0X.516X.031

$

$

Not available

64

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

68

MTD 1769888

ROD-UPPER BLADE

$

$

Not available

72

Troy-Bilt 1773607

ROD-UPPER CONTROL

$

$

Not available

78

Troy-Bilt 1769872

ROD-UPPER BRAKE

$

$

Not available

80

Troy-Bilt 1769874

LEVER-SHIFT

$33.99

$

Usually ships in 3-6 days

0

82

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP {34087,34087C}

$

$

Not available

84

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

92

Troy-Bilt 1703051

BOLT-SHOULDER MOWER

$11.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1185279

PIN-ROLL .25X2.25

$

$

Not available

109

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP {34089,34089C, 34087,34087C

$

$

Not available

109

Troy-Bilt 1915793

SCR-HH 1/4-20 X 1.75 GR8 ZP {34342,34343}
(Superseded to 710-0136)

$3.99

$

In Stock, Qty 20+

0

110

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

111

MTD 1770445001

LEVER-CONTROL

$

$

Not available

112

MTD 1768452

DECAL-OPC MOWERS

$

$

Not available

113

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP {34089,34089C,34087, 34087C}
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

113

Troy-Bilt 1915793

SCR-HH 1/4-20 X 1.75 GR8 ZP {34342,34343}
(Superseded to 710-0136)

$3.99

$

In Stock, Qty 20+

0

114

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

115

Troy-Bilt 1764922010

HANDLEBAR-LH

$95.99

$

In Stock, only 1 left!

0

116

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 11

0

117

MTD 1773605001

LEVER-CONTROL

$

$

Not available

118

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1768191

CABLE-THROTTLE CONTROL
(Superseded to 1768191P)

$

$

Not available

120

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

121

Troy-Bilt 1737041

GRIP-HANDLE
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

122

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

Usually ships in 3-6 days

0

123

MTD 1721492

SPRING-COMPRESSION

$

$

Not available

124

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

125

MTD 1768456

DECAL-WARNING STD WC {34089,34089C}

$

$

Not available

125

MTD 1768457

DECAL-WARNING ELEC WC {34087,34087C}

$

$

Not available

125

MTD 1774226

DECAL-WARNING STD WC {34342}

$

$

Not available

125

MTD 1774227

DECAL-WARNING ELEC WC {34343}

$

$

Not available

126

Troy-Bilt 1768389

DECAL-WIDE CUT T/B
(Superseded to 777D07931)

$

$

Not available

129

Troy-Bilt 1734196

ASSM-KEYSWITCH {34087,34087C,34343}
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

130

Troy-Bilt 1764984

GRIP-HANDLE
(Superseded to 720-0313)

$19.99

$

Usually ships in 3-6 days

0

131

Troy-Bilt 1768223

LEVER-MOWER ENGAGE ZP

$

$

Not available

134

Troy-Bilt 1752137

SOLENOID {34087,34087C,34343}
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

135

MTD 1747027

SCR-HFLK {34087,34087C}

$

$

Not available

136

Troy-Bilt 1768464

REGULATOR
(Superseded to BS-794360)

$64.99

$

In Stock, only 2 left!

0

137

MTD 1749778

SPACER {34087,34087C,34343}

$

$

Not available

138

Troy-Bilt 1769080

GROMMET {34087,34087C,34343}

$

$

Not available

139

MTD 1768159010

BRACKET-BATTERY {34087,34087C,34343}

$

$

Not available

140

Troy-Bilt 1768158

BATTERY {34087,34087C}

$270.99

$

Usually ships in 3-6 days

0

140

MTD 1915750

BATTERY-ES1212 {34343}

$

$

Not available

141

Troy-Bilt 1769081

PAD-BATTERY {34087,34087C,34343}

$

$

Currently unavailable

142

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

143

Troy-Bilt 1764923010

HANDLEBAR-RH

$94.99

$

In Stock, only 1 left!

0

145

MTD 1770371

HARNESS-WIRING {34087,34087C}

$

$

Not available

145

MTD 1915758

HARNESS-WIRE {34343}

$

$

Not available

146

MTD 1768444

ASSM-WIRE LEAD {34087,34087C}

$

$

Not available

146

MTD 1915759

ASSM-WIRE LEAD {34343}

$

$

Not available

148

Troy-Bilt 1734364

BOOT-CABLE {34087,34087C,34343}

$

$

Currently unavailable

153

Troy-Bilt 1768449

CHARGER-BATTERY {34087,34087C} (SHIPPED LOOSE)
(Superseded to 725-13345)

$65.99

$

Usually ships in 3-6 days

0

172

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

300

MTD 1753986

KEY-IGNITION {34087,34087C,34343}

$

$

Not available

301

Troy-Bilt 1768640

ASSM-CONSOLE {34089,34089C} (INCL. 125)

$

$

Currently unavailable

301

Troy-Bilt 1768493

ASSM-CONSOLE {34087,34087C} (INCL. 125)

$

$

Not available

403

Troy-Bilt 1770592

NUT-IGNITION SWITCH

$

$

Currently unavailable
