34337 - Troy-Bilt Sicklebar Mower (SN: 343371100101 - 343371599999) General Assembly Parts Diagram

Sicklebar Mower

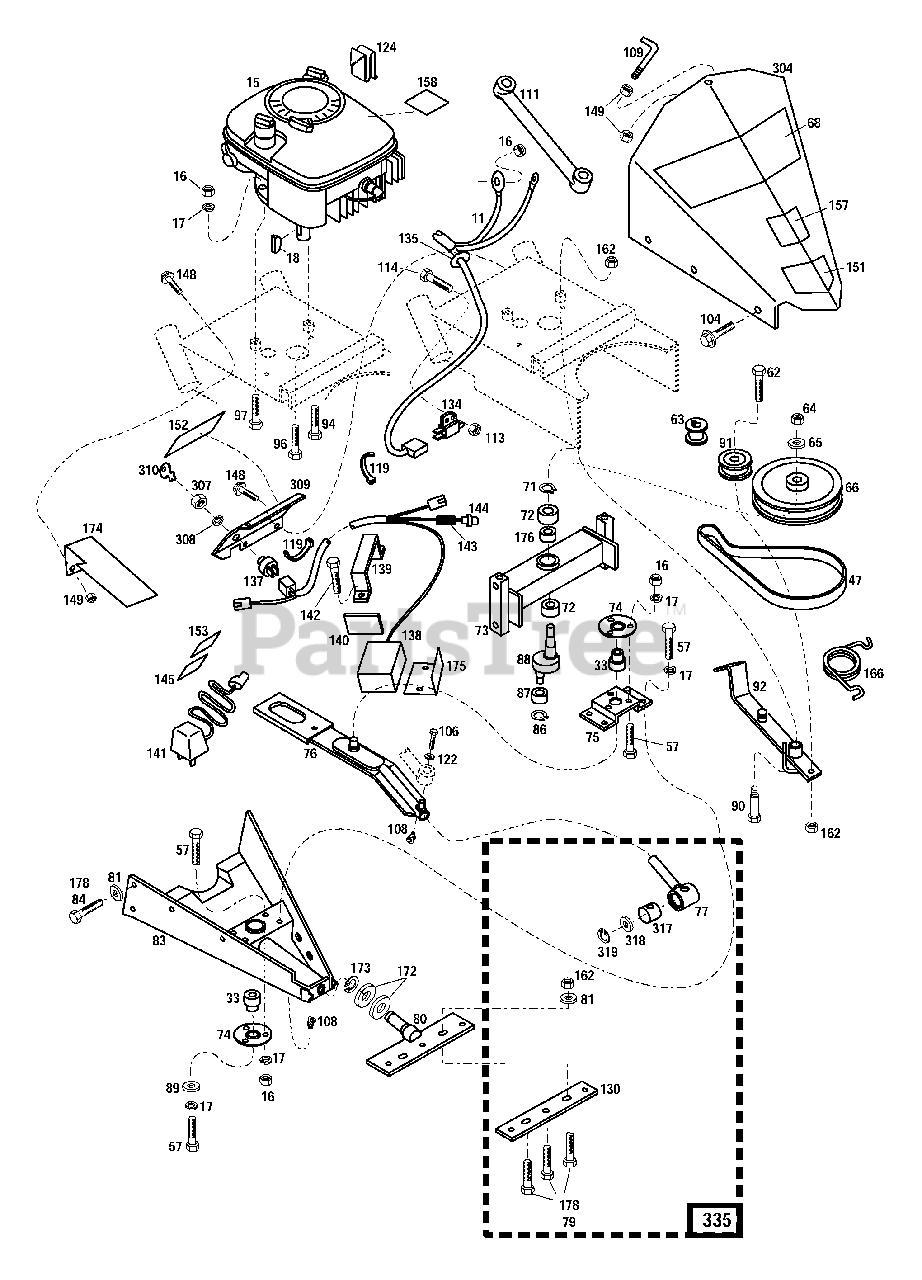

General Assembly Parts Diagram

  • Title

11

MTD 1768430

Operator Interlock Harness

Note: (Incl. Ref. 134. Also Refs. 313 & 325 from "Drive")

$

$

Not available

15

Engine, Briggs & Stratton, 3.5 HP

Note: Model 34061; Purchase engine parts from your local Briggs & Stratton Dealer. Refer to engine for type and code.

$

$

Not available

Engine, Briggs & Stratton, 4 HP

Note: Model 34062/34337; Purchase engine parts from your local Briggs & Stratton Dealer. Refer to engine for type and code.

$

$

Not available

Engine, Briggs & Stratton, 5 HP

Note: Model 34063; Purchase engine parts from your local Briggs & Stratton Dealer. Refer to engine for type and code.

$

$

Not available

Engine, Briggs & Stratton, 5 HP w/elec. start

Note: Model 34064; Purchase engine parts from your local Briggs & Stratton Dealer. Refer to engine for type and code.

$

$

Not available

16

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1110645

Lock Washer, 5/16
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

18

MTD 1100275

Woodruff Key, #6, 5/23 x 5/8

$

$

Not available

33

Troy-Bilt 1766626

Bearing Insert

$61.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 1767142

V-Belt

$36.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 1100044

Hex Hd. Capscrew, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 1100047

Hex Hd. Capscrew, 3/8-16 x -1/2
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

63

MTD 1766650

Engine Pulley

$

$

Not available

64

MTD 1186216

Hex Nut, 5/8-18

$

$

Not available

65

Troy-Bilt 1107386

Flat Washer, 5/8
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

66

MTD 1766651

Eccentric Pulley

$

$

Not available

68

MTD 1766926

Decal, Troy-Bilt

$

$

Not available

71

Troy-Bilt 1185102

Retaining Ring
(Superseded to 716-0197)

$6.99

$

Usually ships in 3-6 days

0

72

MTD 1766657

Ball Bearing

$

$

Not available

73

Troy-Bilt 1773137001

Housing Assembly

$

$

Currently unavailable

74

MTD 1766664

Bearing Retainer

$

$

Not available

75

MTD 1766665

Upper Pivot Bearing Support

$

$

Not available

76

MTD 1773565

Eccentric Arm Assembly

$

$

Not available

77

Troy-Bilt 1773537

Pitman Assembly

Note: (Incl. Refs. 317, 318 & 319)

$

$

Not available

79

Troy-Bilt 1773452

Hex Hd. Capscrew, 3/8-16 x 1-1/4, Grade 8
(Superseded to 00011444)

$4.49

$

In Stock, Qty 9

0

80

MTD 1772711001

Attachment Mounting Bracket Assembly

$

$

Not available

81

Troy-Bilt 1773272

Flat Washer (hardened), 5/16

$

$

Not available

83

Troy-Bilt 1773218010

Front Housing Assembly

$

$

Currently unavailable

84

MTD 1773423

Hex Hd. Capscrew, 3/8-16 x 3/4, Grade 8

$

$

Not available

86

Troy-Bilt 1118809

Retaining Ring

$

$

Not available

87

Troy-Bilt 1766795

Eccentric Bearing

$

$

Not available

88

MTD 1766895

Eccentric Shaft

$

$

Not available

89

MTD 1729245

Flat Washer, 5/16

$

$

Not available

90

Troy-Bilt 1736221

Shoulder Screw

$

$

Currently unavailable

91

Troy-Bilt 1713803

Idler Pulley, 3 x 1
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

92

MTD 1767715001

Knife Clutch Arm

$

$

Not available

94

Troy-Bilt 1111610

Hex Hd. Capscrew, 5/16-18 x 3
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

96

MTD 1111613

Hex Hd. Capscrew, 5/16-18 x 4, Grade 5

$

$

Not available

97

Troy-Bilt 1111611

Hex Hd. Capscrew, 5/16-18 x 3-1/2
(Superseded to 710-1266)

$9.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 1740496

Self-Tapping Screw, 5/16-18 x 5/8
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

106

Troy-Bilt 1100806

Hex Hd. Capscrew, 1/4-20 x 1-1/4
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

108

Troy-Bilt 1767609

Grease Fitting, 1/4-28 x 90°.
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

109

Troy-Bilt 1766704

Upper Hook, 1/4-20

$

$

Not available

111

MTD 1766805

Weed diverter Strap, 14-1/2"

$

$

Not available

113

Troy-Bilt 1185985

Hex Nut, #10-24
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

114

Troy-Bilt 1758070

Truss Hd. Screw, #10-24 x 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

119

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

122

Troy-Bilt 1100254

Flat Washer, 1/4
(Superseded to 936-0159)

$

$

Not available

124

MTD 1766558

Engine Cable Clip

$

$

Not available

130

MTD 1767687001

Doubler Bracket

$

$

Not available

134

MTD 1751340

Switch

$

$

Not available

135

MTD 1766947

Grommet

$

$

Not available

137

Troy-Bilt 1900455

Key Switch
(Superseded to 1900455P)

Note: Model 34064

$

$

Not available

138

Troy-Bilt 1909647

Battery

Note: Model 34064

$164.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 1772392

Battery Clamp

Note: Model 34064

$

$

Currently unavailable

140

MTD 1756549

Battery Pad

Note: Model 34064

$

$

Not available

141

Troy-Bilt 1768449

Charger
(Superseded to 725-13345)

Note: Model 34064

$65.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 1763875

Thread-Forming Screw, 1/4-20 x 3/8

Note: Model 34064

$

$

Currently unavailable

143

Troy-Bilt 1772168

2-amp Fuse

$

$

Currently unavailable

144

MTD 1772130

Start Harness

Note: Model 34064

$

$

Not available

145

MTD 1766959

Decal, Electric Start

Note: Model 34064

$

$

Not available

148

MTD 1724492

Self-Tapping Fl. Screw, 1/4-20 x 1/2

$

$

Not available

149

Troy-Bilt 1186389

Hex Flange Lock Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

151

Troy-Bilt 1739687

Decal, OPEI Danger

$7.49

$

Usually ships in 3-6 days

0

152

MTD 1767077

Decal, Warning

$

$

Not available

153

MTD 1901899

Decal, American Legend

$

$

Not available

157

MTD 1767141

Decal, Danger

$

$

Not available

158

MTD 1983202

Decal, Hot Surface

$

$

Not available

162

Troy-Bilt 1110108

Center Lock Nut, 3/8
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

166

MTD 1705792

Torsion Spring

$

$

Not available

172

Troy-Bilt 1773451

Flat Washer

$

$

Not available

173

Troy-Bilt 1118813

Retaining Ring

$

$

Currently unavailable

174

MTD 1773528001

Switch Cover

$

$

Not available

175

MTD 1773529

Heat Reflector

Note: Model 34064

$

$

Not available

176

Troy-Bilt 1773530

Spacer

$

$

Currently unavailable

178

Troy-Bilt 1757032

Loctite(R) Thread Compound
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

304

MTD 1767156

Fender

Note: (Incl. Refs. 151 & 157)

$

$

Not available

307

Troy-Bilt 92018

Hex Nut
(Superseded to 712-0252)

Note: Model 34064

$5.99

$

Usually ships in 3-6 days

0

308

Troy-Bilt 1187950

Lock Washer
(Superseded to 736-0225)

Note: Model 34064

$4.49

$

In Stock, only 2 left!

0

309

MTD 1767155

Keyswitch Plate

Note: (Incl. Ref. 152)

$

$

Not available

310

Troy-Bilt 96520

Key
(Superseded to 925-0201)

Note: Model 34064

$9.49

$

In Stock, only 1 left!

0

317

Troy-Bilt 1772940

Pitman Bearing

$24.99

$

Usually ships in 3-6 days

0

318

Troy-Bilt 1715301

Thrust Washer

$9.99

$

Usually ships in 3-6 days

0

319

Troy-Bilt 1767593

Retaining Ring

$4.49

$

Usually ships in 3-6 days

0

335

See "Blades"

$

$

Not available
